Enerpac Air Driven Hydraulic Pump w/ 61 in3 Usable Oil & Integrated Pressure Gauge For Single-Acting Cylinder/Tool XA11G

Enerpac

Air Driven Hydraulic Pump w/ 61 in3 Usable Oil & Integrated Pressure Gauge For Single-Acting Cylinder/Tool XA11G

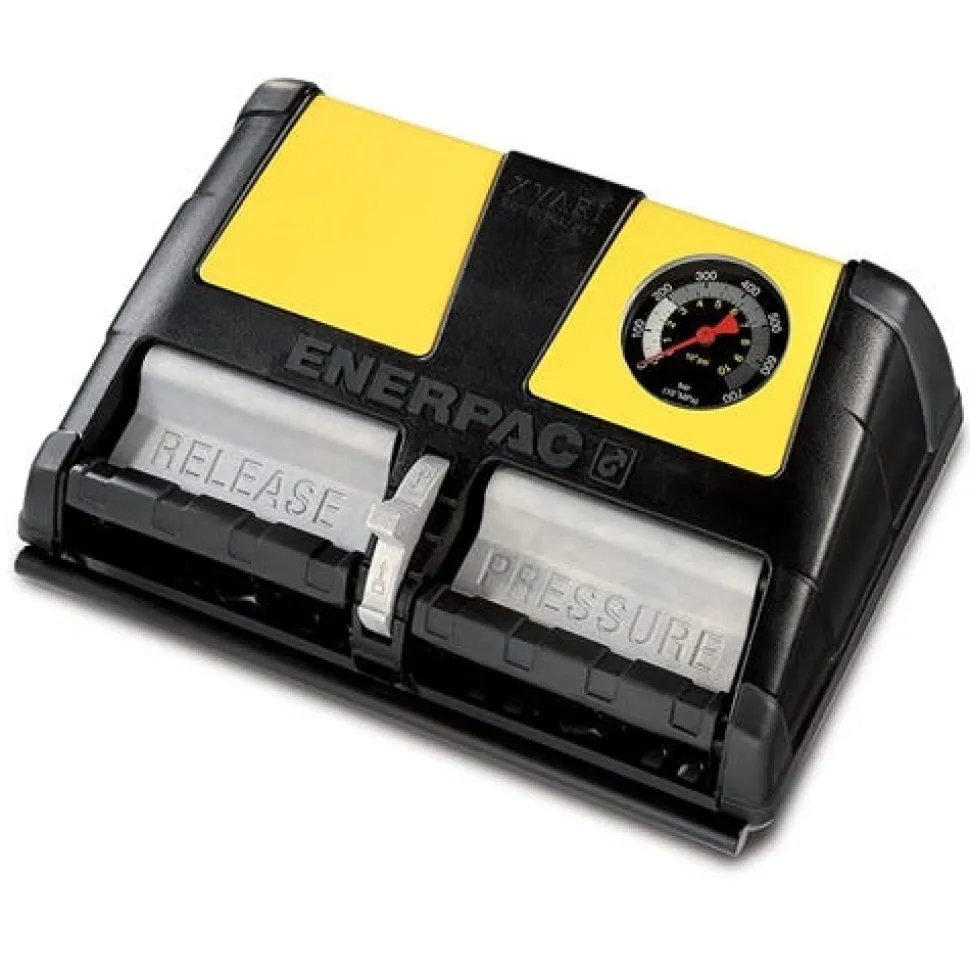

The Enerpac XA-11G single-acting air-operated foot pump can be controlled by foot; holds up to 61 cu. in. of hydraulic fluid; has a built-in pressure gauge for metering; and is suitable for powering a single-acting hydraulic cylinder or tool. The air-powered pump has a closed hydraulic system for operating in any position. Two pedals enable the operator to advance the flow of hydraulic fluid or retract the flow.

FEATURES:

• Higher oil flow for increased productivity.
• Variable oil flow and fine metering for precise control.
• Closed hydraulic system prevents contamination and allows pump usage in any position.
• Pedal lock function for retract position.
• External adjustable pressure setting valve.
• ATEX Certified.* Includes ground screw for explosion protection.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Cylinder Compatability	Single-acting
Reservoir Capacity (in3)	61
Usable Oil Capacity (in3)	61
Maximum Flow at Rated Pressure	15 in3/min
Output Flow Rate (in3/min) No Load	120
Output Flow Rate Load (in3/min)	15
Valve Function	Advance / Hold / Retract
Valve Operation	Manual
Valve Type	3-way; 3-position
Power Source	Air
Air Pressure Range (psi)	30 – 125
Air Consumption (scfm)	10 – 35
