Enerpac Air Hydraulic Pump w/ 36 in3 Usable Oil For Single-Acting Cylinders PA133
$134.89
Enerpac
Air Hydraulic Pump w/ 36 in3 Usable Oil For Single-Acting Cylinders PA133

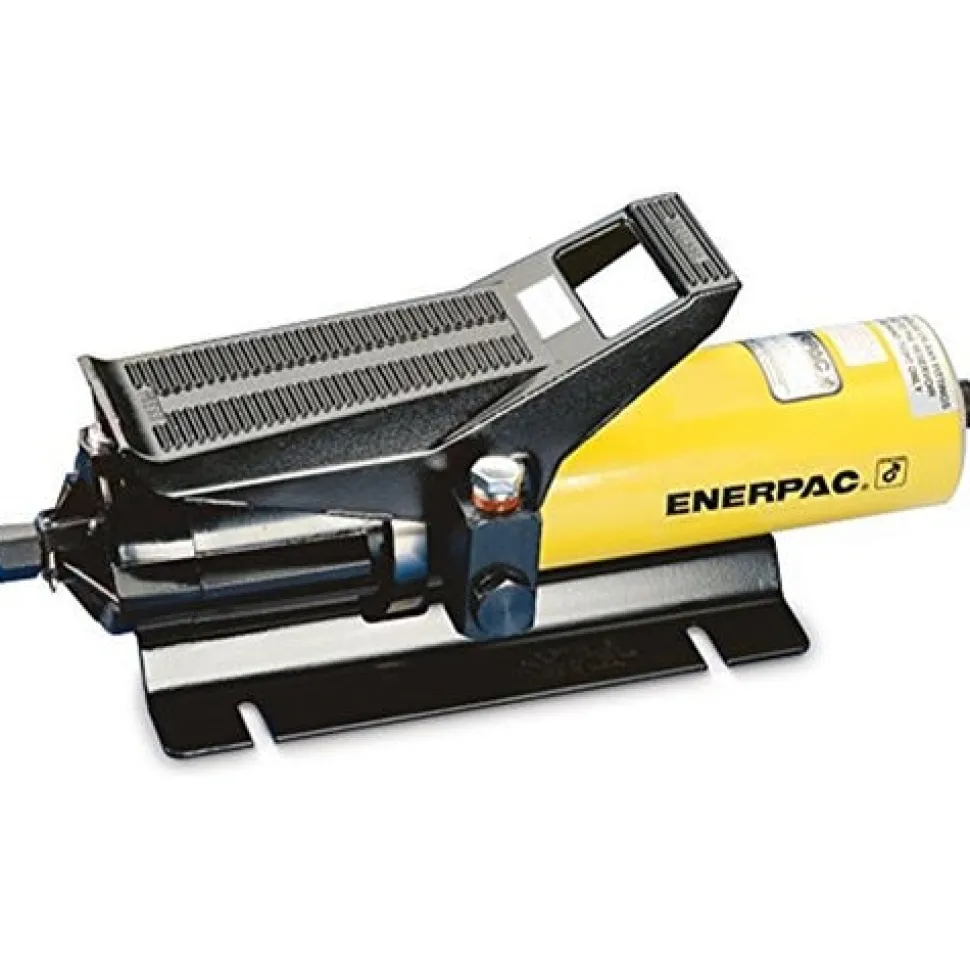

The Enerpac PA-133 single-speed hydraulic air pump is for lifting; bolting; or applying pressure with a hydraulic cylinder (sold separately) in plant maintenance; fabrication; production; bolting; vehicle repair; and other applications where compressed air is the preferred power source. It has a three-way control valve for advancing; releasing; or holding a single-acting cylinder. The pump is controlled by a treadle that can be operated by hand or by foot.
FEATURES:
- Rugged construction – built for long life and easy service.
- Swivel coupling simplifies hydraulic connection and pump operation.
- Three-position treadle provides cylinder advance; hold and retract operation.
SPECIFICATIONS:
| Maximum Operating Pressure (psi) | 10;000 |
|---|---|
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (in3) | 36 |
| Usable Oil Capacity (in3) | 36 |
| Maximum Flow at Rated Pressure | 8 in3/min |
| Output Flow Rate (in3/min) No Load | 40 |
| Output Flow Rate Load (in3/min) | 8 |
| Valve Function | Advance / Hold / Retract |
| Valve Operation | Manual |
| Power Source | Air |
| Air Pressure Range (psi) | 60 – 120 |
| Air Consumption (scfm) | 9 |
| Sound Level (dBa) | 85 |
| Sub Types | Air Pump |
|---|---|
| Output Flow Rate Load | 0,13 L/min |
| Reservoir Capacity | 589 cm³ | 36 in³ |
| Type | Hydraulic Pump |
| Air Consumption | 9 Scfm | 255 L/min |
| News Feed Product Group | Pumps |
| Maximum Flow At Rated Pressure liter | 0.13 |
| Usable Oil Capacity | 36 in³ | 589 cm³ |
| Air Pressure Range Psi | 60 – 120 |
| Maximum Flow Rate Rangesat Rated Pressure | 0 – 20 in³/min | 0 – 0,34 L/min |
| Weight | 12 lbs | 5,4 kgs |
| Maximum Operating Pressure Ranges Bar | 700 |
| Maximum Flow At Rated Pressure | 8 in³ |
| Maximum Operating Pressure Ranges Psi | 10000 |
| Cylinder Compatability | Single-acting |
| Shipping Weight | 11.1 lbs |
| Maximum Flowat Rated Pressure | 8 in3/min |
| Pump Power Source | Air |
| Output Flow Rate No Load | 40 in³/min | 0,65 L/min |
| Valve Operation | Manual |
| Product Line | Industrial Tools |
| Maximum Flow At Rated Pressure metric | 0,13 l/min |
| Valve Function | Advance / Hold / Retract |
| Sound Leveld Ba | 85 |
| Output Flow Rate Load in³ Minute | 8 in |
| Air Pressure Range bar | 4,1 – 8,3 |
| Country of Origin | United States |
| Maximum Flow At Rated Pressure imperial | 8 in3/min |
| OPT SKU | ENP-PA133 |
|---|---|
| MPN | PA133 |
| UPC/GTIN | 662005100002 |
| Product Type | Air Hydraulic Pump |
| Google Category | Hardware > Hardware Pumps |
| Power Method | Air/Pneumatic |
| Shipping Weight | 13.00 |
