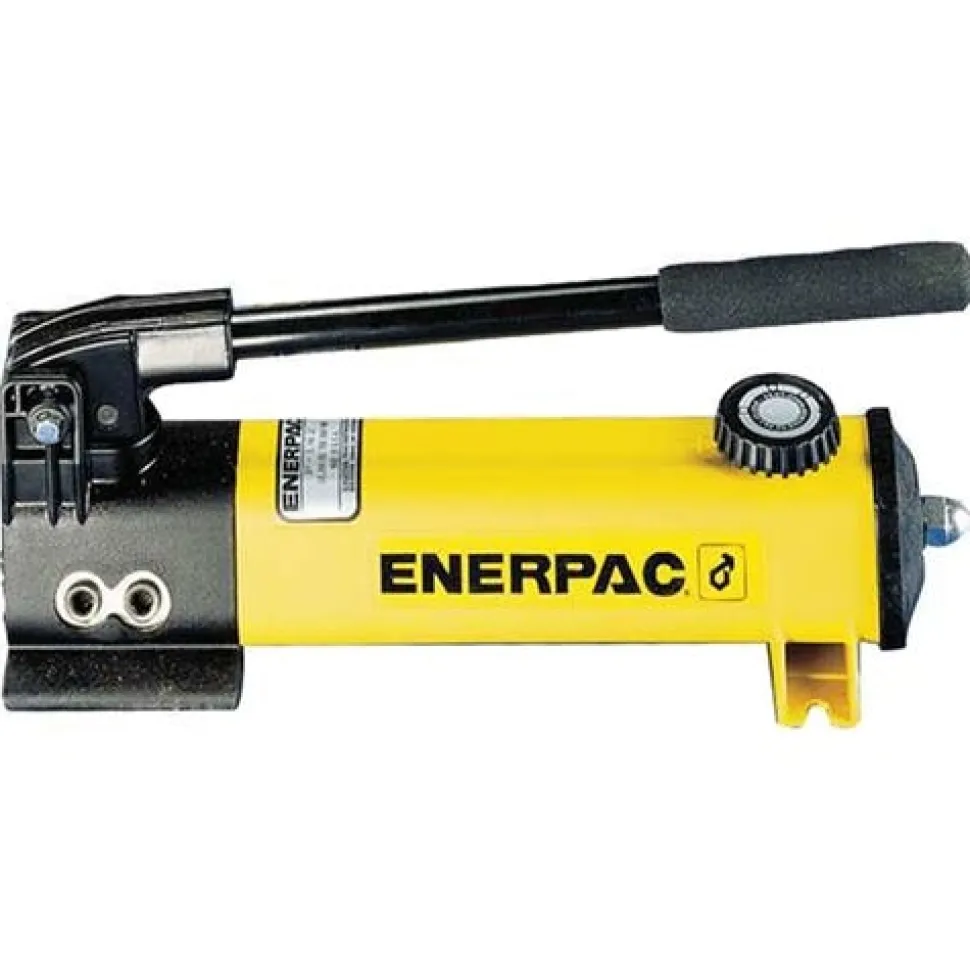

Enerpac Single Speed Lightweight 20 in3 Usable Oil Hydraulic Hand Pump For Single-Acting Cylinders P141

Enerpac

Single Speed Lightweight 20 in3 Usable Oil Hydraulic Hand Pump For Single-Acting Cylinders P141

The Enerpac P141 high-pressure; lightweight single-speed hydraulic hand pump is for lifting; bolting; or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction; manufacturing; and maintenance and repair applications. The glass-filled nylon reservoir; nylon-covered aluminum base; and fiberglass handle provide corrosion resistance and are lighter than steel hydraulic hand pumps.

FEATURES:

• Lightweight and compact design.
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance.
• Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps.
• Lower handle effort to minimize operator fatigue.
• Handle lock and lightweight construction for easy carrying.
• Large oil capacities to power a wide range of cylinders or tools.
• Non-conductive fiberglass handle for operator safety.
• Internal pressure relief valve for overload protection.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Pressure Rating (psi) 2nd Stage	10;000
Cylinder Compatability	Single-acting
Pump Type	Single Speed
Reservoir Capacity (in3)	20
Usable Oil Capacity (in3)	20
Maximum Flow at Rated Pressure	.055 in3/stroke
Oil Displacement per Stroke (in3)	0.055
Oil Displacement per Stroke (in3) 1st Stage	–
Oil Displacement per Stroke (in3) 2nd Stage	–
Maximum Handle Effort (lbs)	72
Piston Stroke (in)	0.5
Valve Operation	Manual
Power Source	Manual
