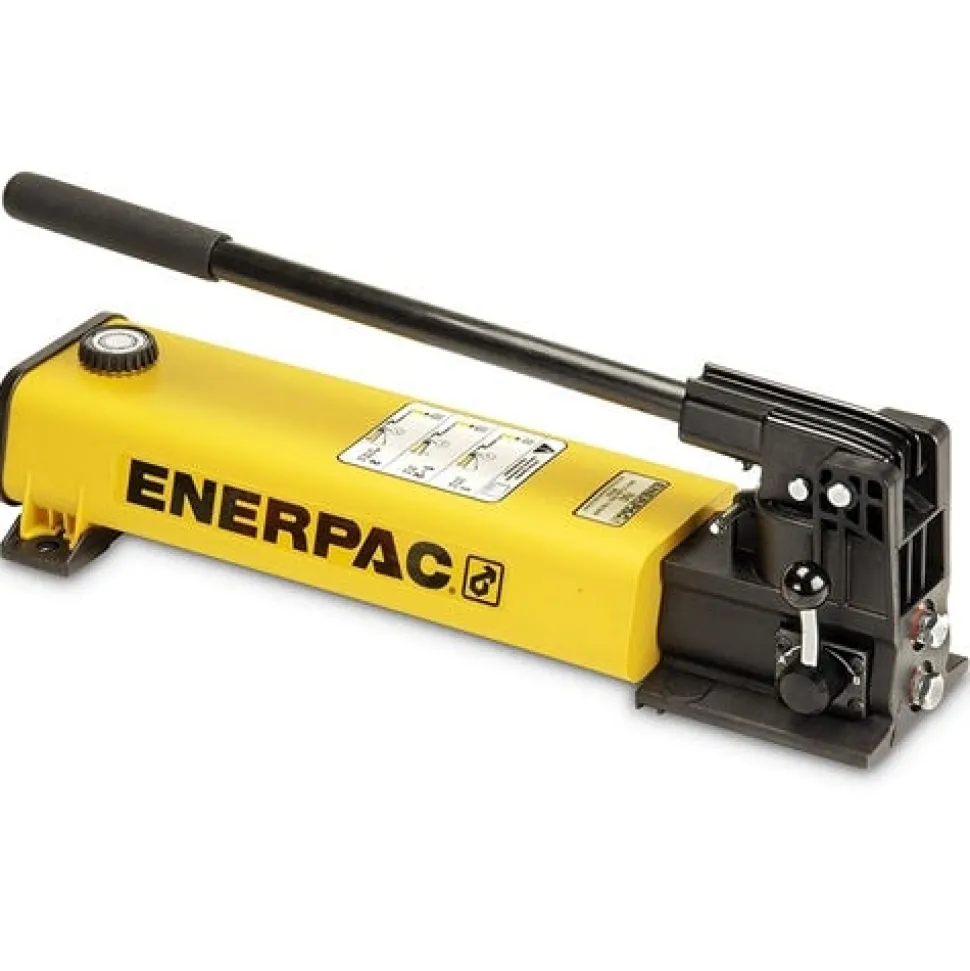

Enerpac Two Speed Lightweight 155 in3 Usable Oil Hydraulic Hand Pump For Double-Acting Cylinders P842

Enerpac

Two Speed Lightweight 155 in3 Usable Oil Hydraulic Hand Pump For Double-Acting Cylinders P842

The Enerpac P842 high-pressure; lightweight two-speed hydraulic hand pump is for lifting; bolting; or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction; manufacturing; and maintenance and repair applications. It has a four-way control valve for advancing and retracting a double-acting cylinder. This two-speed hand pump requires fewer handle strokes to move a load than a similarly rated single-speed pump; increasing productivity.

FEATURES:

• Lightweight and compact design.
• Durable glass-filled nylon reservoir and nylon encapsulated aluminum pump base for maximum corrosion resistance.
• Two-speed operation on most models reduces handle strokes by as much as 78% over single speed pumps.
• Lower handle effort to minimize operator fatigue.
• Handle lock and lightweight construction for easy carrying.
• Large oil capacities to power a wide range of cylinders or tools.
• Non-conductive fiberglass handle for operator safety.
• Internal pressure relief valve for overload protection.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10;000
Pressure Rating (psi) 1st Stage	400
Pressure Rating (psi) 2nd Stage	10;000
Cylinder Compatability	Double-acting
Pump Type	Two Speed
Reservoir Capacity (in3)	155
Usable Oil Capacity (in3)	155
Maximum Flow at Rated Pressure	.151 in3/stroke
Oil Displacement per Stroke (in3)	–
Oil Displacement per Stroke (in3) 1st Stage	2.4
Oil Displacement per Stroke (in3) 2nd Stage	0.151
Maximum Handle Effort (lbs)	95
Piston Stroke (in)	1
Valve Operation	Manual
Power Source	Manual
