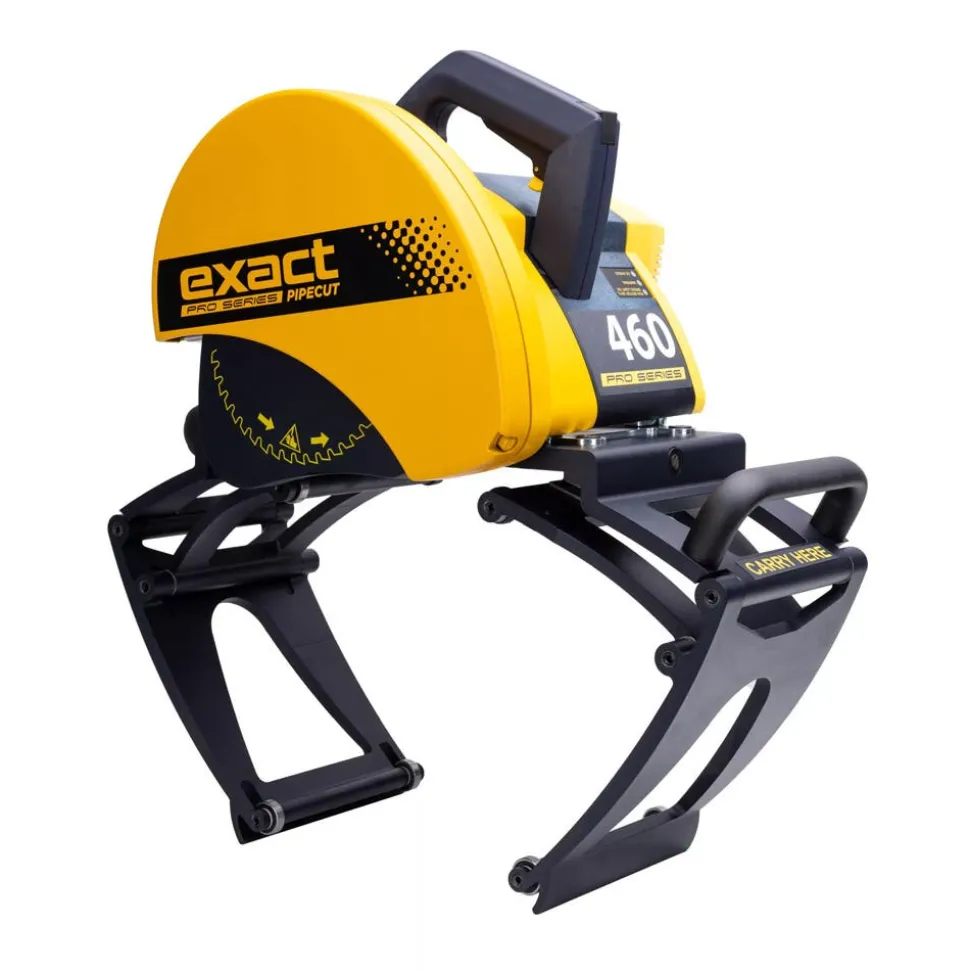

- Exact PipeCut+Bevel 460 Pro Series pipe saw

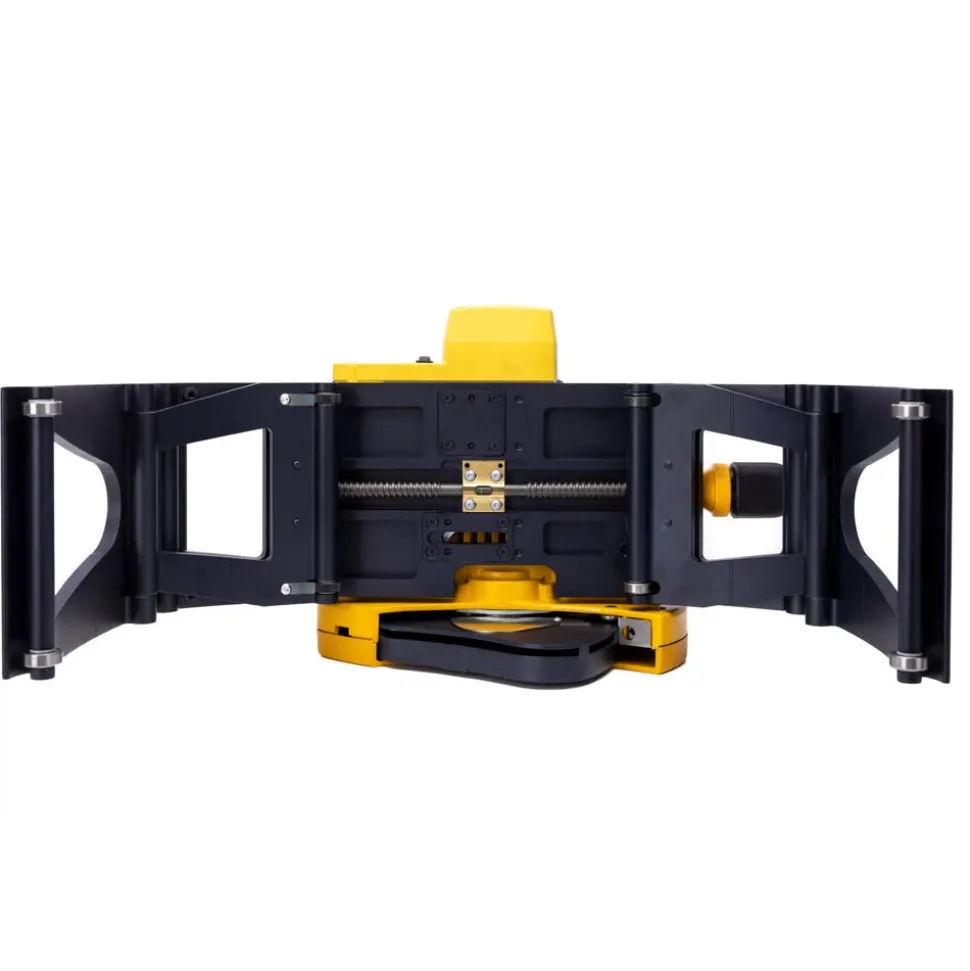

- Pipe Support 460 Double and 2x 360 Single and tool for changing blade in the bag.
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
Pipe cutting capacity (OD) | 4” to 18” (100mm – 460mm) |
---|---|
Max. wall thickness | 0.8” (20mm) Steel / 230V, 1.8“ (45mm) Plastic |
Pipe material | Cast iron, Plastic, Stainless/Inox steel, Steel |

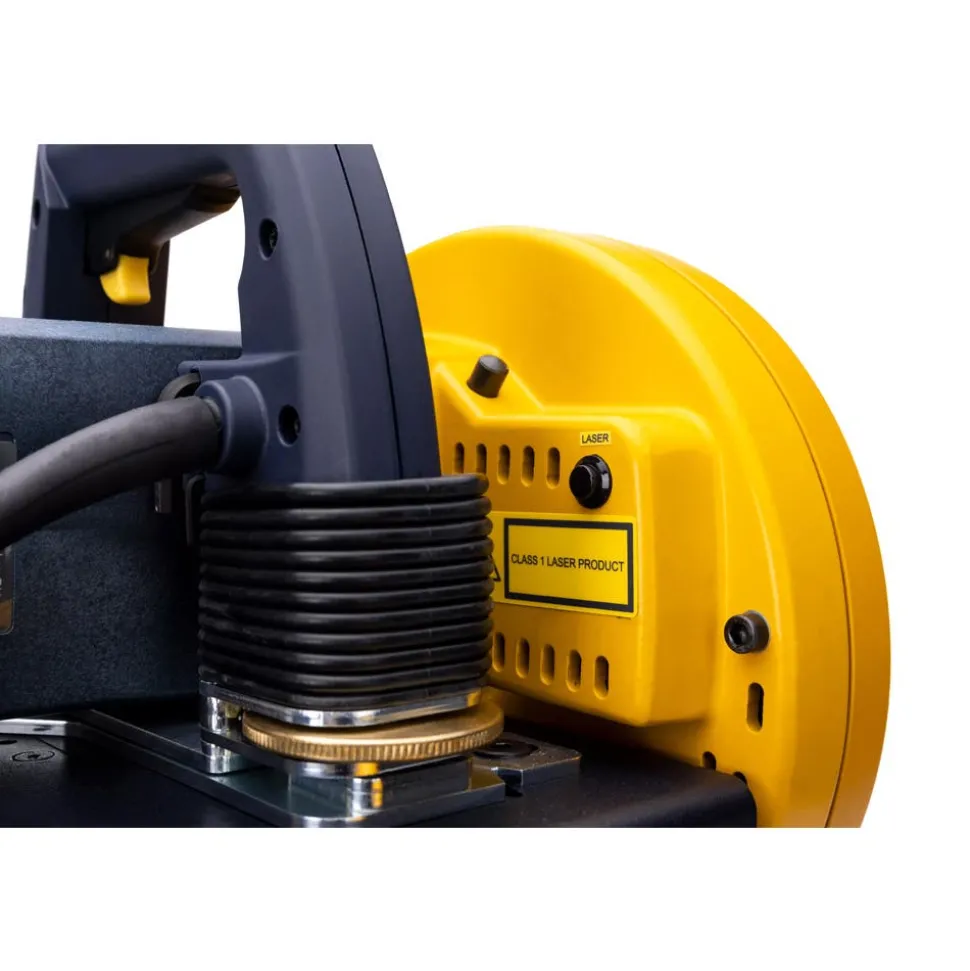

Laser for cutting point definition | Yes |
Traffic lights for overheat control | Yes |
No-Load speed | I=1900 r/min, II=2885 r/min |
Mounting bore | 2.44” (62mm) |
Electronical unit | Blade speed preselection, automatic fuse, soft start, torque control |
Speed preselection | I = Stainless steel II = Cut+Bevel function and all other materials |
Loading capacity of supports | 1025 lbs (465 kg) 3 supports |
OPT SKU | EPT-7010404US |
---|---|
MPN | 7010404US |
UPC/GTIN | 6430042782390 |
Product Type | Pipe & Tube Cutting |
Shipping Weight | 25.00 |
