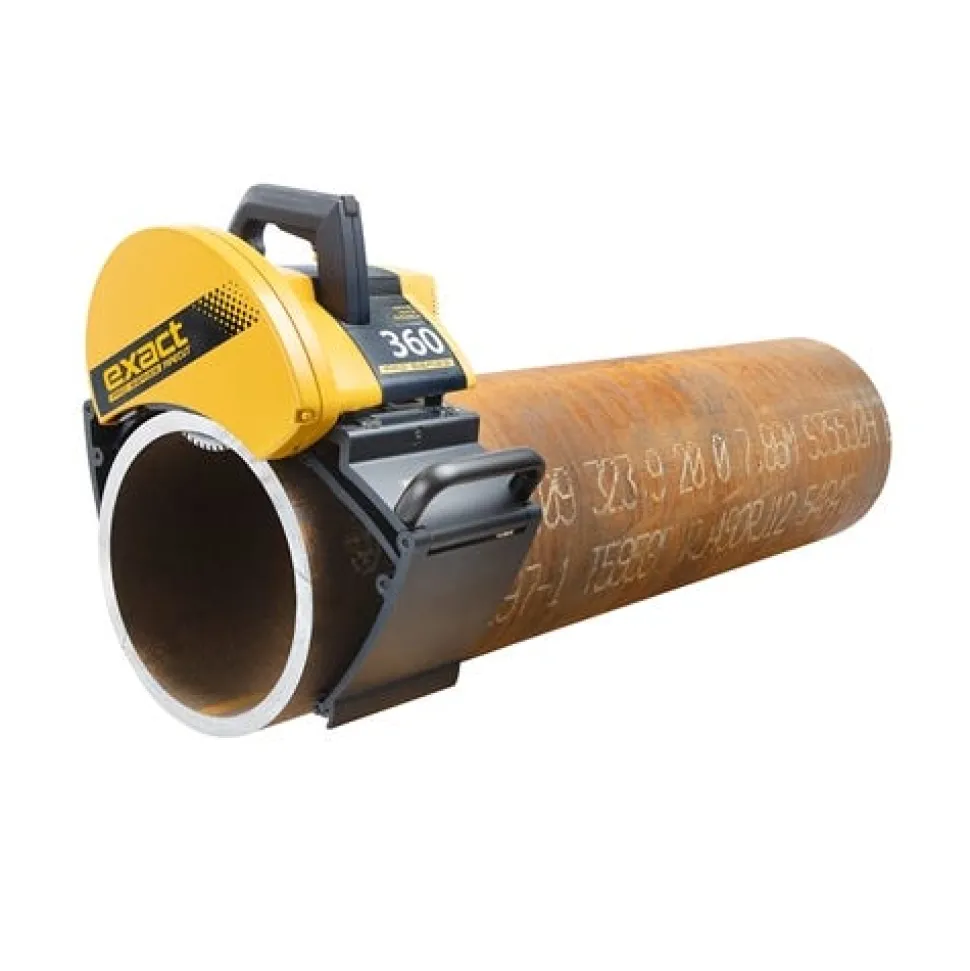

Exact PipeCut 360 Pro Series (3″- 14″) Pipe Cutter Circular Saw 6.5″-7.5″ Blade Roller System 7010413US

** Non-Returnable After First Use **

Exact Pipe Cutting

Exact PipeCut 120V (3-14″) System 360E

The largest dual-speed universal pipe saw in the Exact line. Features include two-stage motor speed control; constant torque; soft start plus automatic overload protection. PipeCut 360E cuts easily even when cutting the toughest cast iron pipes. When cutting plastic pipes it can be attached to a shop vacuum for collection of cutting debris to reduce site clean-up time. Extra heavy duty design and construction helps withstand the most demanding work conditions.

FEATURES:

• Much stronger 2500W 230V / 2200W 120V motor.
• Electronics protecting the motor from overload and “traffic lights” guiding the operator.
• Laser indicator for precise cutting.
• Improved adjustment mechanism for straight cutting.
• Professional quality – Made in EU.
• Cuts steel pipes with wall thickness up to 20 / 12 mm.

SPECIFICATIONS:

Voltage / Power	230V / 2500W
Voltage / Current	110V; 120V / 15A
No-Load speed	I=1900 r/min; II=2885 r/min
Blade diameter	165mm (6.50”)
Mounting bore	62mm (2.44”)
Weight	17;5 kg (38;6 lbs)
Range of use	75mm – 360mm (3”- 14”)
Max. pipe wall	20mm (0.8”) steel / 230V 12mm (0.5″) steel / 120V 50mm (2”) plastics
Electronical unit	Blade speed preselection; automatic fuse; soft start; torque control.
Speed preselection	I = Stainless steel and acid-resistant steel; II = all other materials.
Loading capacity of supports	465 kg; 1025 lb (3 supports)

Pipe Ø (OD)	75mm – 360mm (3”- 14”)
Wall thickness	20mm (0.8”) steel / 230V 12mm (0.5″) steel / 120V 50mm (2”) plastics
Cuts the following pipe materials	Steel; copper; cast iron; stainless steel; acid-resistant steel; multi-layered materials and all plastics

INCLUDES:

• PipeCut Bag 3.
• Exact PipeCut 360 Pro Series pipe saw.
• Pipe Support 360 Double and 2x 360 Single and tool for changing blade in the bag.
• Operating instructions.
• Hex socket key 5 mm and 2 mm fitted to the machine.
• TCT 165 blade fitted to the machine.
• DVD video disc including instructions.

“
