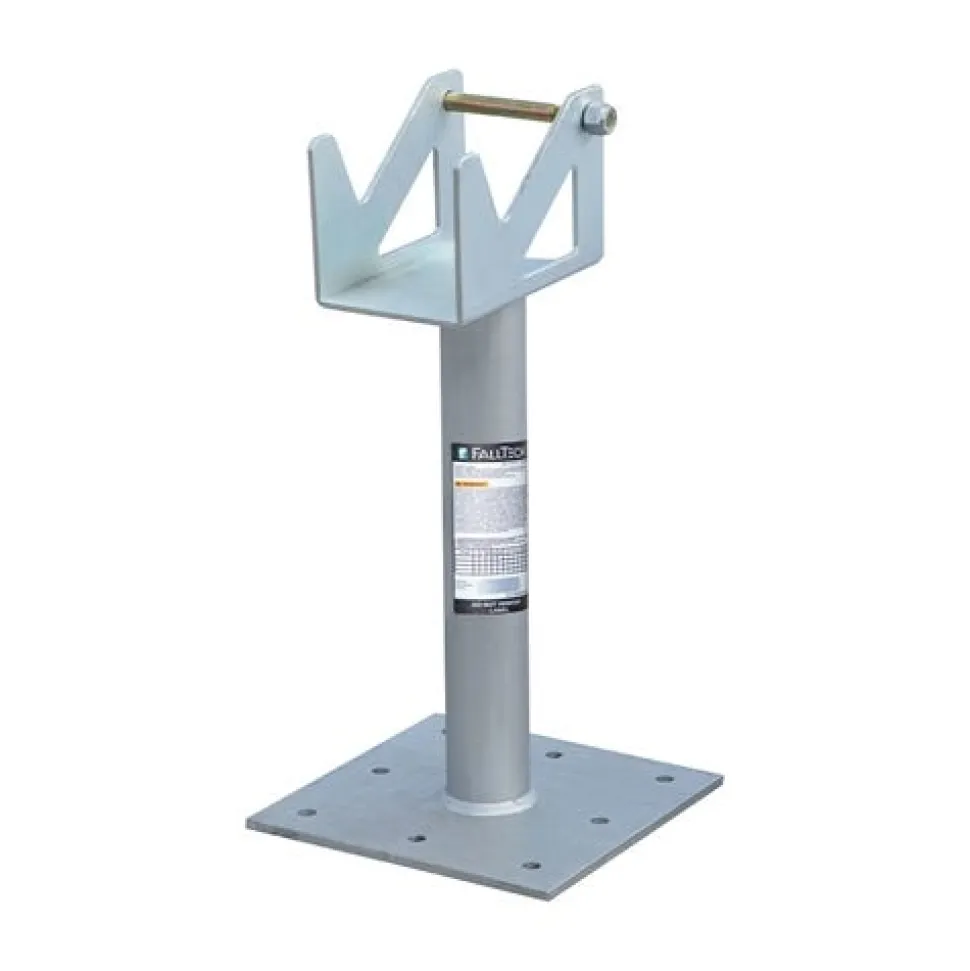

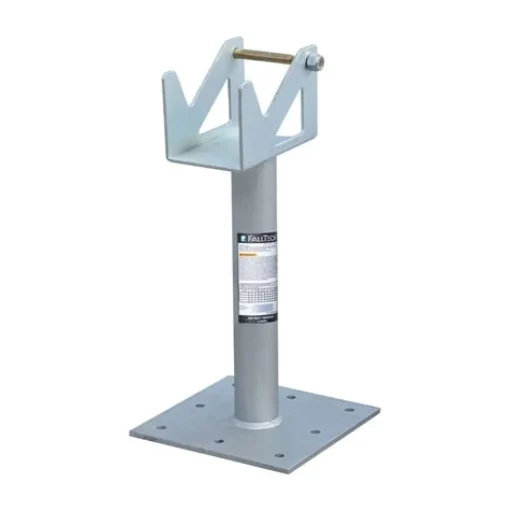

FallTech 18″ Post Anchor Connector w/ SRL Cradle For Concrete & Steel 78218CSSC

FallTech

18 Post Anchor Connector w/ SRL Cradle For Concrete & Steel 78218CSSC

The FallTech SRL Cradle Post Anchor connector isdesigned for maximum versatility and safety in fall arrestand restraint applications.

FEATURES:

• Features swivel SRL cradle for installation of user supplied SRL.
• Fully galvanized structural steel post and base plate for durable performance.
• 3/8″ thick base plate allows for installation onto I-beams or other structures.
• The 18″ height comfortably elevate user’s connection point above the working surface.
• For permanent installation onto concrete; or steel structures.
• For use in personal fall arrest applications.
• User-supplied fasteners required (see user’s instruction manual).

SPECIFICATIONS:

Material Specifications
Base Plate	Galvanized Steel
Post	Galvanized Steel
Swivel Bushing	Plated Alloy Steel
SRL Cradle	Plated Alloy Steel
Performance Specifications
Static Strength	5;000 lbs. Min.
ANSI User Capacity	One User up to 310 lbs. Max
Relevant Standards
ANSI	Z359.18-2017
OSHA	1926.502
Post Anchor Dimensions
Post Height	18″
Base Plate	12″ x 12″ x 3/8″

“
