FallTech

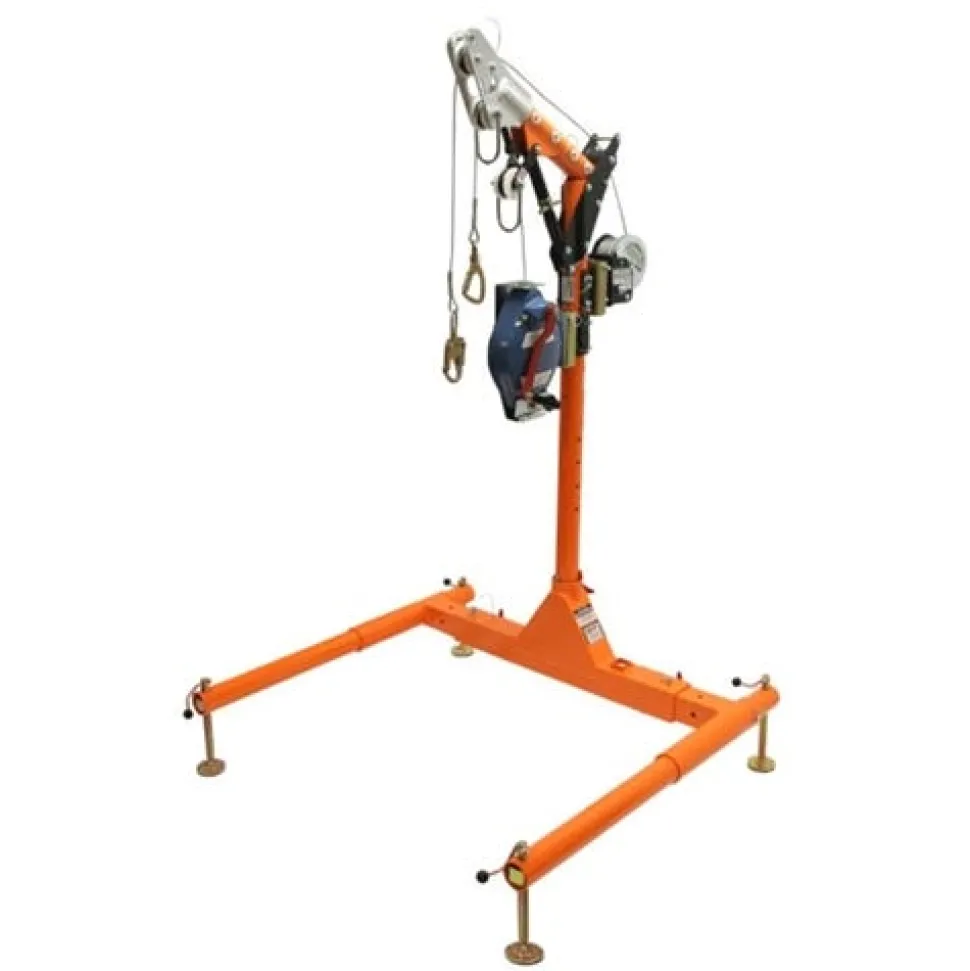

5pc Confined Space Davit System with Personnel Winch and 3-way SRL-R 6050428WR

FEATURES

• Modular assembly of functional basic components plus a Personnel Winch and SRL-R joined in a system; allowing you to work with confidence in Confined Space Entry and Retrieval applications and still maintain the flexibility to modify the system to meet your needs. Lightweight aluminum blended with rugged steel elements throughout; the 5pc Davit System operates with full adjustability and enduring performance.
• 60′ 3-way SRL-R includes Galvanized Steel Cable
• 33 Lower Mast Extension included
• Portable Davit Base width adjusts from 38 to 65 with 4 preset adjustment positions
• Davit Base includes integral bullseye level and threaded adjustable leveling feet
• Includes 60′ Personnel Winch and 60′ 3-way SRL-R both with Galvanized Steel Cable ***

System Performance Specifications

• Moment Rated: 5;750 lbs. Minimum
• Rescue Configuration: 5;000 lbs. Minimum
• Rescue Configuration: 1;800 lbs. Minimumvvvv
• Entry/Egress Operation: 1 User Max. 310 lbs.

Relevant Standards

• OSHA: 1926.502
