FallTech Beam Trolley 7712

FallTech

FallTech Beam Trolley 7712

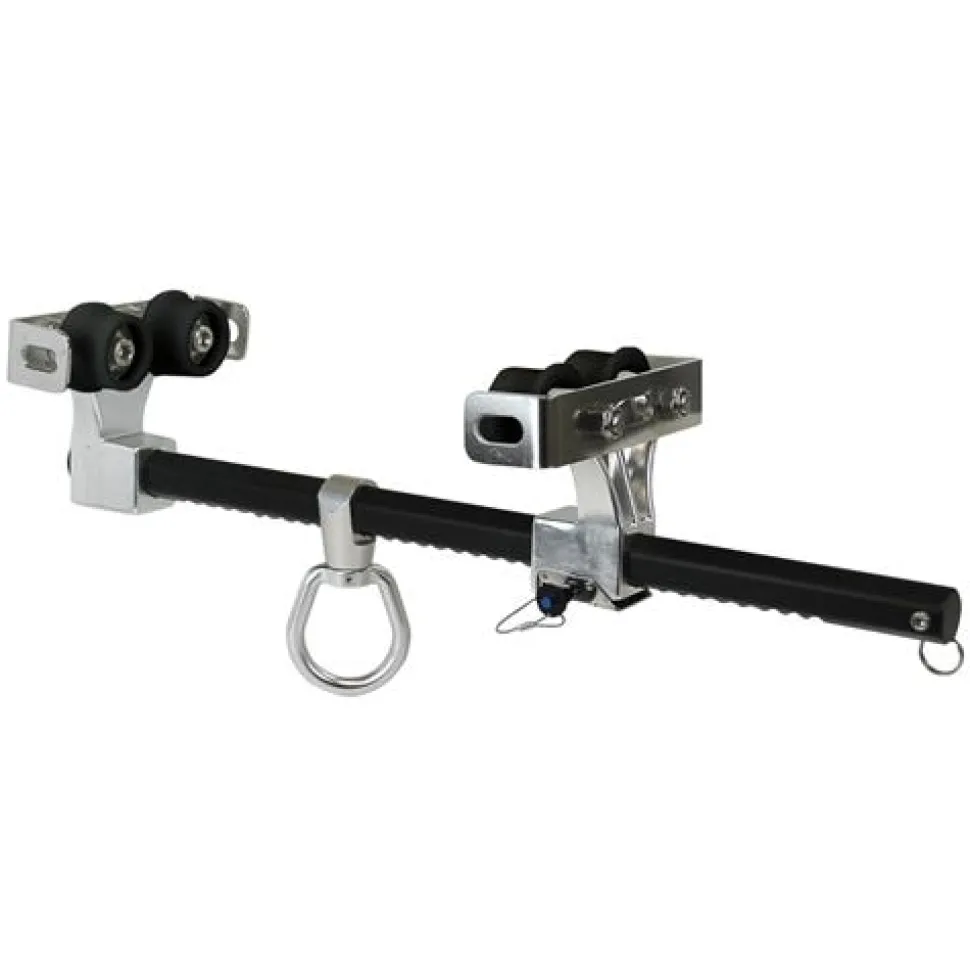

The FallTech Beam Trolley is a lightweight mobile anchorage connector solution for use in Personal Fall Arrest Systems. Positioned anywhere along an overhead horizontal I-beam; the Beam Trolley will effortlessly follow the user and is ideally suited for use with SRLs in general industry applications.

FEATURES:

• Fits I-beams from 4 to 18″ wide and up to 1″ thick.
• Features aluminum crossbar; side plates and 360 swiveling D-ring.
• High density Nylacast wheels provide high continuous service temperature resistance and low moisture absorption rate.
• Stainless Steel wheel guards and fasteners plus sealed stainless steel wheel bearings.
• Features simple beam width adjustment with secondary locking detent pin.

SPECIFICATIONS:

Static Strength	5;000 lbs
Min Use Temperature	10 Fahrenheit
ANSI Anchor Class	Type D
ANSI User Capacity	310 lbs or less
OSHA User Capacity	425 lbs or less

“
