FallTech SteelGrip Cable HLL System with Stanchions for 4 to 12″ I-Beams 6036024

FallTech

FallTech SteelGrip Cable HLL System with Stanchions for 4 to 12″ I-Beams 6036024

FEATURES:

• Pre-configured in 30 and 60 single-span and 80 and 100 multi-span systems
• Single-span systems include one Coil Energy Absorber and two Stanchions while Multi-span systems
• 42 Plated Steel I-Beam Stanchions fit beam flanges up to 2 thick
• Plated Steel I-Beam Clamps available with flange width ranges of 4 to 12; 4 to 18 and 4 to 24 and include Steel Wing Nut adjusters see Table for specific system length and clamp configurations with Stanchion and Energy Absorber content

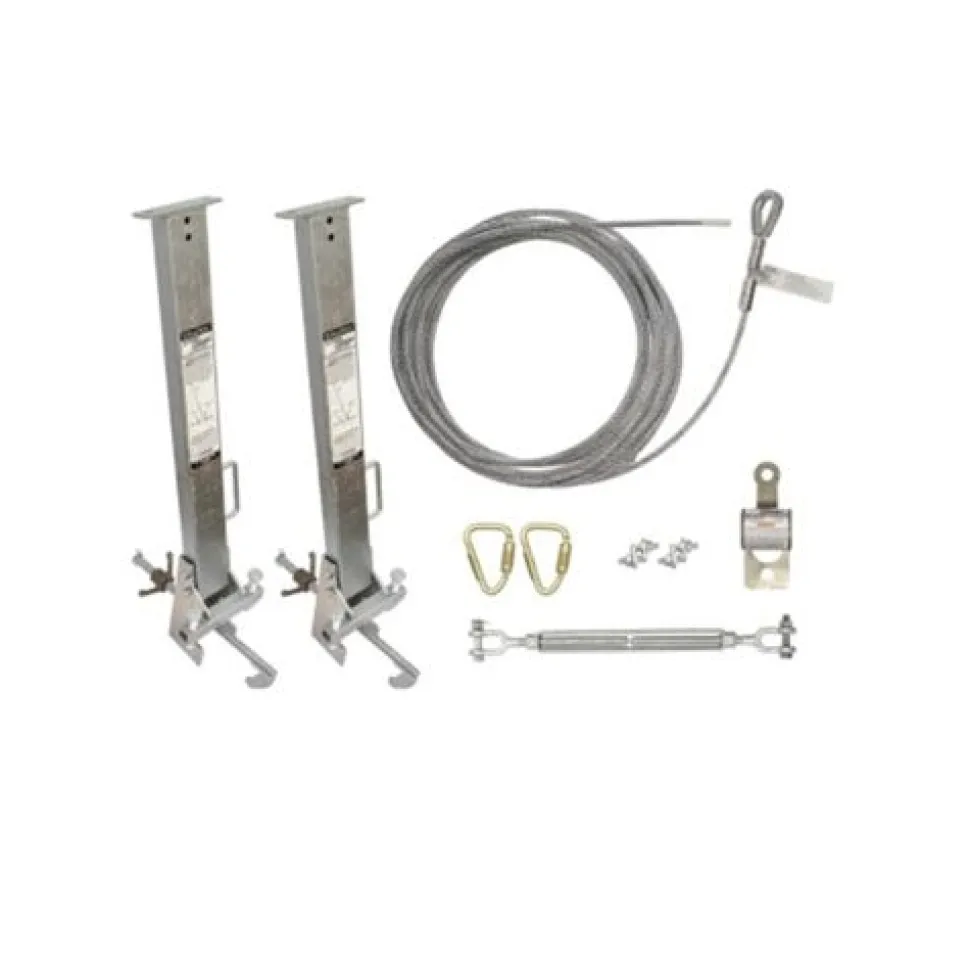

All SteelGrip Cable HLL Systems include:

• SteelGrip Stainless Steel Coil Energy Absorber (1 or 2 as needed)
• SteelGrip I-Beam Stanchions (2 or 3 as needed)
• Intermediate Pass-through Bracket (for multi-span systems only)
• 21 Galvanized steel jaw and jaw Tensioning Turnbuckle with 12 adjustment
• 2 Alloy Steel Carabiners and Wire Rope Clips (plus Steel Shackle for systems greater than 60)
• 3/8 Galvanized Steel Cable with thimble-eye termination

SPECIFICATIONS:

Materials Specifications
Cable Lifeline:	3/8 Galvanized Steel 7×19	5;000 lbs Min Static Strength
I-Beam Stanchion:	Plated Steel Post; Base andClamp	8;000 lbs Min Static Strength
Carabiner:	Plated Alloy Steel	5;000 lbs Min Statc Strengthwith 3;600 lbs Gate Strength
Turnbuckle:	Galvanized Steel	not rated individually
Shackle:	Galvanized Steel
Coil Energy Absorber:	Stainless Steel

System#	Clamp Capacity	Working Length	Stanchions	Energy Absorbers
6033012	12	30	2	1
6036012	12	60	2	1
6038012	12	80	3	2
60310012	12	100	3	2
6033018	18	30	2	1
6036018	18	60	2	1
6038018	18	80	3	2
60310018	18	100	3	2
6033024	24	30	2	1
6036024	24	60	2	1
6038024	24	80	3	2
60310024	24	100	3	2

System Performance Specifications

• Static Strength: 5;000 lbs. Minimum
• OSHA User Capacity: 310 lbs. Max. per User
• 2 Users Max per Single Span; 6 Users Max per Multi-span System

Relevant Standards

• OSHA: 1926.502 and 1910.14

“
