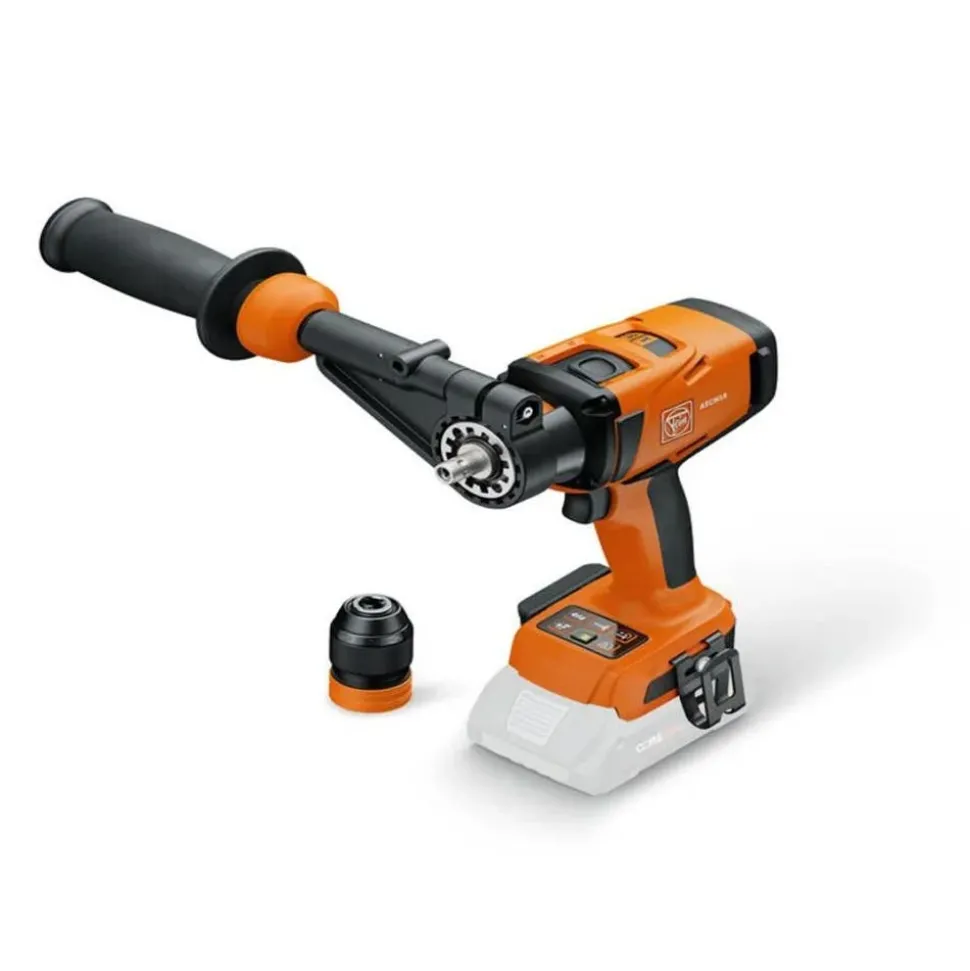

Fein ASCM 18-4 QMP AS 4-speed Cordless Hammer Drill/Driver 71161661090

Fein ASCM 18-4 QMP AS 4-speed Cordless Hammer Drill/Driver 71161661090

$122.89

SKU: SKU0EJbQ0hcsB Categories: Drills/Drivers & Hammer Drills, Power Tools Tag: Fein Brand: Fein

Description
Reviews (0)

Additional Details

With brushless motor and QuickIN interface. Uncompromising power for drilling and tapping up to 1/2″ and drilling with carbide hole saws up to 3-1/8″.

Features

4-speed gearbox with hammer function for optimal cutting speeds in metal for holes from 1/16″ to 3-1/8″.
Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications.
Extremely safe with kickback monitoring which stops the tool.
QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.
Selectable hammer function for drilling in stone and masonry up to 1/2″.
More control with the extendable auxiliary handle.
The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life.
High torque up to a maximum of 1,150 in/lb.
QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.
Electronic torque setting (15+1).
Intuitive control panel with dimmable LED for perfect illumination of the work area.
Comes with a magnetic bit holder and belt clip.
Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
Drives up to 1,400 1/4 x 1-1/2″ screws in wood with one battery charge (CORE 18 V 4 Ah)
User safe with restart and electronic overload protection.
Over screw driving function to prevent screw from driving too deep into the wood.
Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.

Manufacturer Specifications

Battery voltage	18 V
Battery compatibility	Li-ion / CORE 18 V Li-ions
Battery interface	18 V AMPShare
Motor	brushless
Gearbox	4-speed
Accessory interface	QuickIN
No load speed	430 / 850 / 2 000 / 4 000
Impacts per minute	6 450 / 12 750 / 30 000 / 60 000
Max. torque (hard/soft)	1,151 [130] (620 [70] / 443 [50] ) in/lbs[Nm]
Torque steps	15 + 1
Chuck capacity	1/16 [1.5] – 1/2 [13] in[mm]
Fastening	3/8 [10] x 15-3/4 [400] in[mm]
Drill Ø steel twist drill	1/2 [13] in[mm]
Holesaw diameter capacity in wood	2-3/8 [60] in[mm]
Capacity in stone Ø	1/2 [13] in[mm]
Tapping	1/2″ [M14]
Sound pressure level LpA	93,9 dB
Measurement uncertainty of the measured value KpA	3 dB
Sound power level LWA	101,9 dB
Measurement uncertainty of the measured value KWA	3 dB

Specifications

More Information
OPT SKU	FEIN-71161661090
MPN	71161661090
UPC/GTIN	4014586900278
Product Type	Drills/Drivers & Hammer Drills
Product Line	AmpShare
Power Method	Cordless
Package	Kit/Set
Voltage	18V
Shipping Weight	0.00
