Gray 30,000 lb Truck Air Jack Stand TAJS-3000

Gray

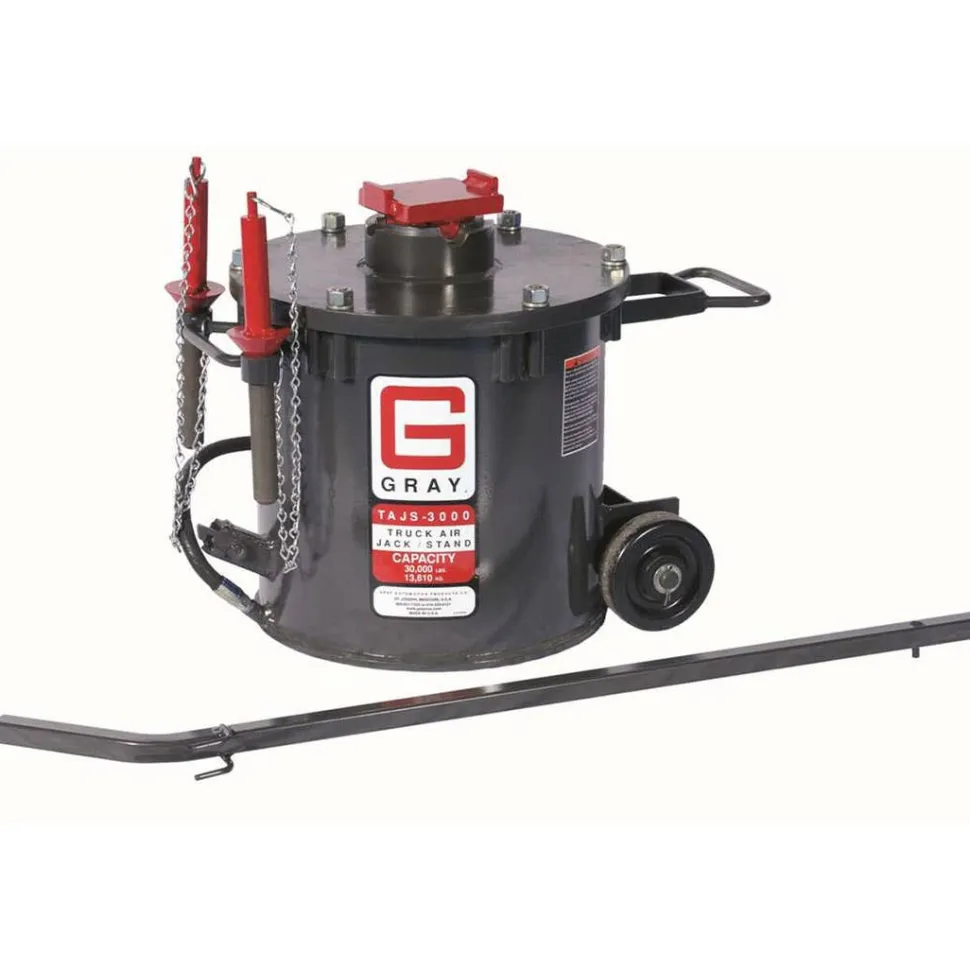

30,000 lb Truck Air Jack Stand TAJS-3000

The TAJS-3000 truck jack stands can be used individually or in pairs to double the lifting capacity. The 100% air operated tall jack stands provide years of maintenance-free use and double as a support stand. The TAJS-3000ﾒs removable handle and wheels makes the jack easy to place and store.

FEATURES:

• Removable handle ﾖ for ease of movement and storage.
• 5″ diameter wheels to help with portability.
• 10? steel encased air-hose.
• Thin walled cylinders manufactured by Gray Manufacturing in the U.S.A.

SPECIFICATIONS:

Capacity	30,000 lbs
Minimum Start Height	17-5/8″
Maximum Lift Height w/Extension	52-1/4″
Maximum Lift Height w/o Extension	37-1/4″
Cylinder Bore	14″
Required Air Pressure	200 PSI
Overall Length w/o Handle	25-1/2″
Overall Length w/ Handle	58-1/2″
Wheel Diameter	5″
Stroke	10″
Inside Saddle Width	4-3/4″
Overall Saddle Width	5-1/2″
Extension Tubes	Square
Handle Length	36-1/2″
