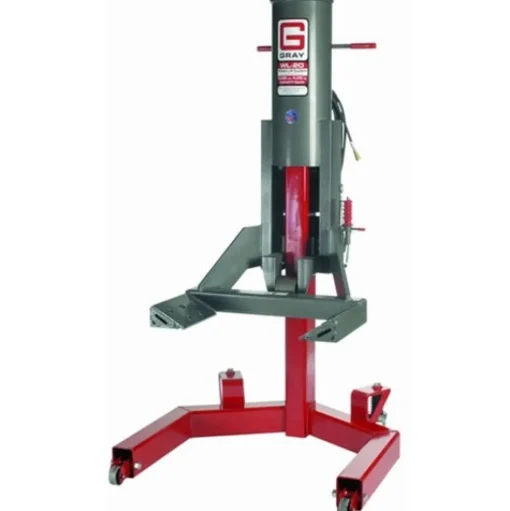

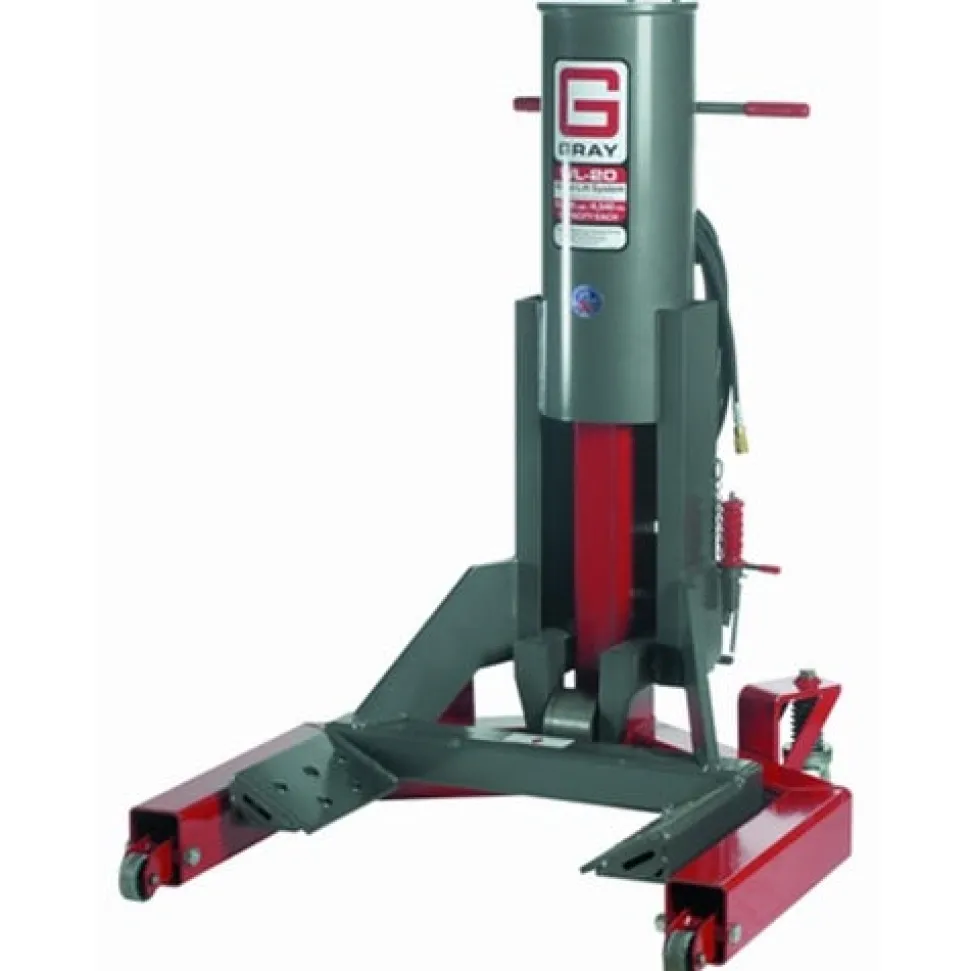

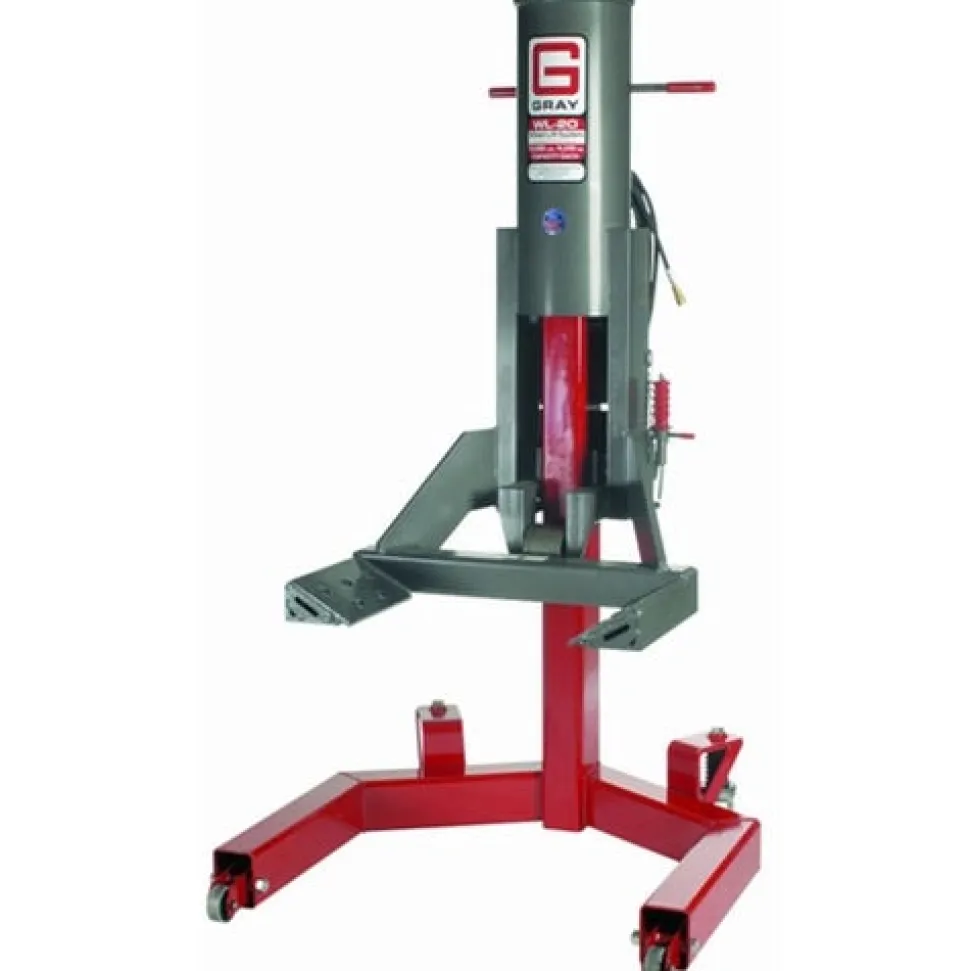

Gray Air Wheel Lift System (PAIR) 10 Ton WL-20

• Gray
• Financing is available. Click here for details.
• Gray’s innovative; 100% air operated mid-rise lift family provide a shop with unsurpassed flexibilty and quick access to major components on all types of vehicles.  The wheel lift system takes all the guess work out of safely lifting any vehicle while the positive pinning system provides safe and clear access under one end of the vehicle.
• The 100% air operated system will provide years of maintenance free; worry free lifting.  The system lifts one end of a wide array of vehicles.  The portable design eliminates the need for a dedicated bay.  The lifting height is perfect for major component removal and increases shop productivity as there is no more wasted time removing aerodynamics from vehicles.
• Tire gripping carriage
• Gray American manufactured air cylinder
• 3000 psi steel encased air hose
• Capacity per Set of Two: 20;000 lbs
• Minimum Start Height: Floor Level
• Maximum Lift Height: 24
• Power: Shop Air
• Required Air Pressure: 160 PSI
• Stroke: 24
• Minimum Wheel Diameter (w/Adaptors): 16
• Minimum Wheel Diameter (w/o Adaptors): 19 1/2″
• Maximum Wheel Diameter: 24 1/2″
• Overall Width: 41 9/16
• Overall Depth: 44 1/4
• Overall Height: 53 1/4
• Shipping Weight: 1;000 lbs

“
