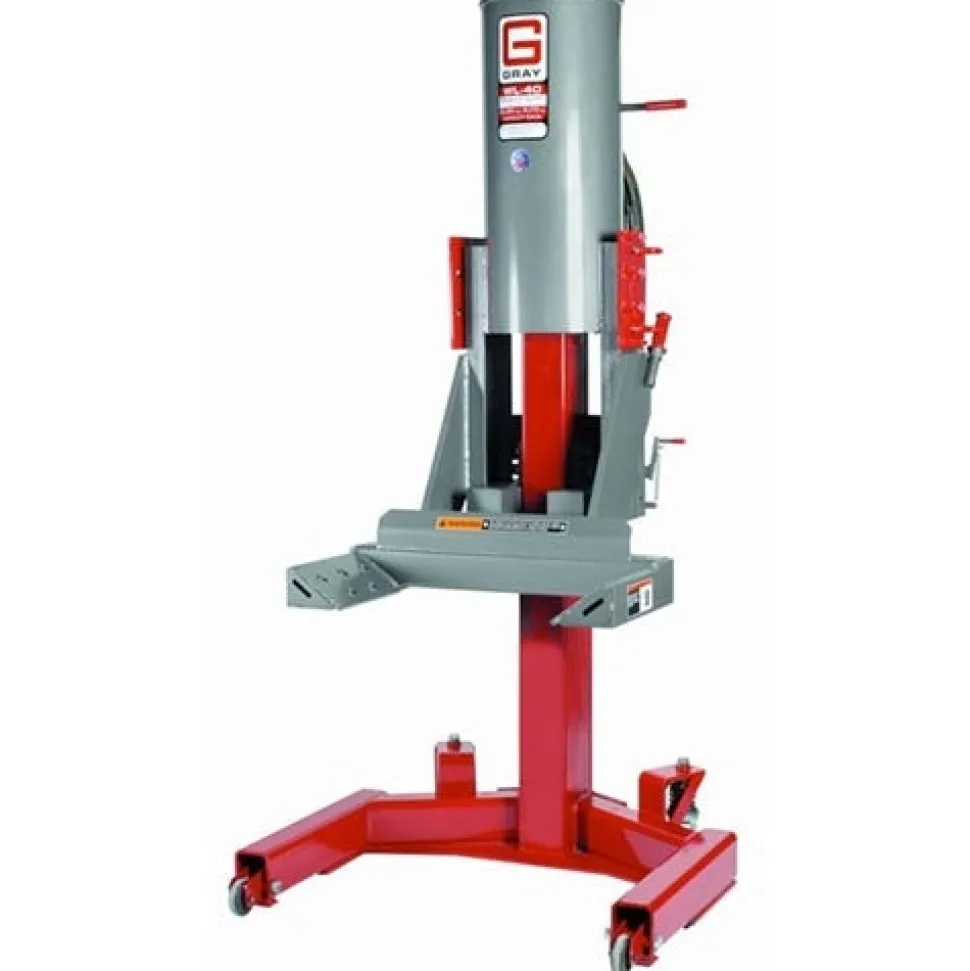

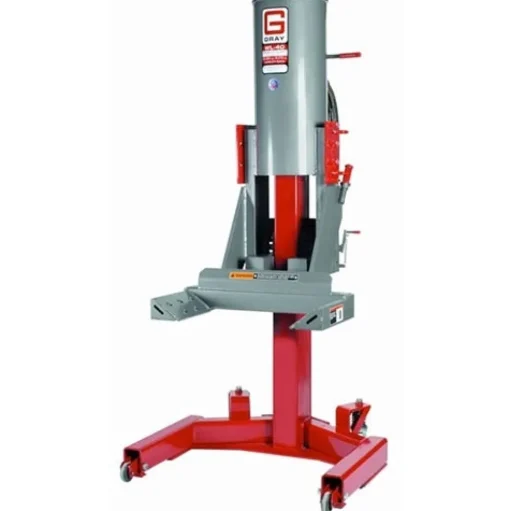

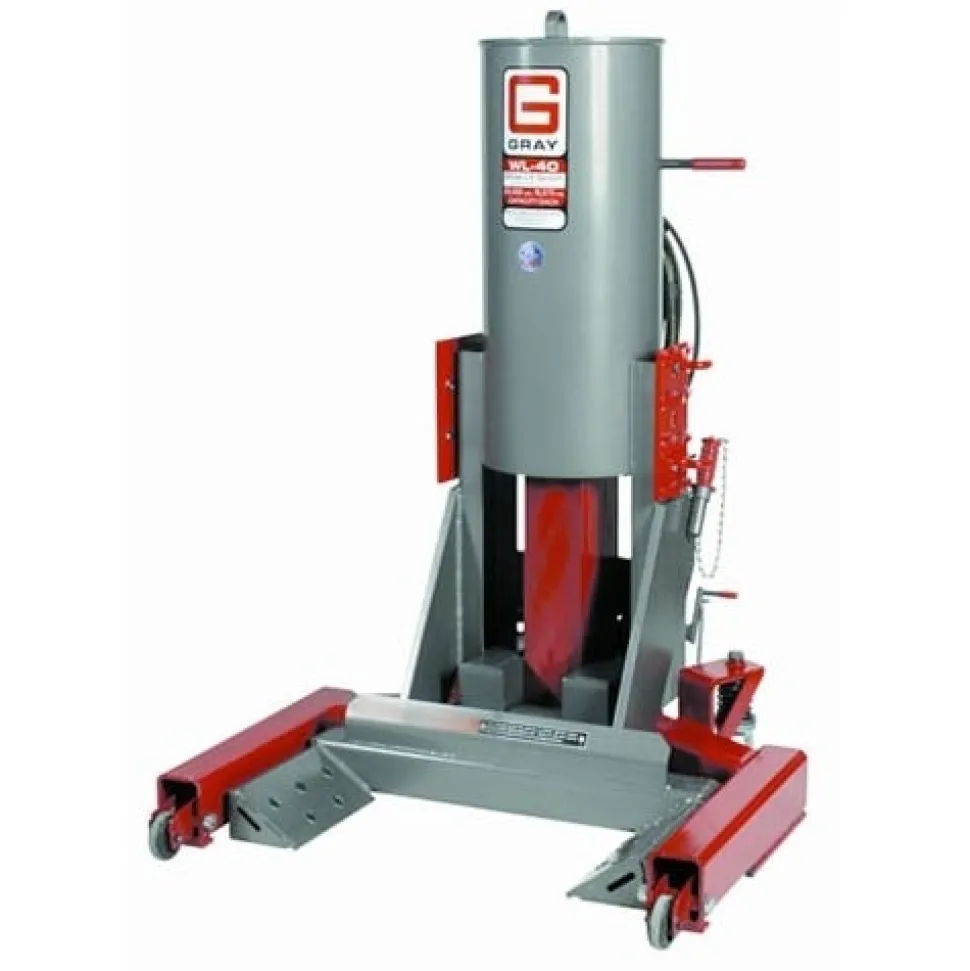

Gray Air Wheel Lift System (PAIR) 20 Ton WL-40

• Gray
• Financing is available. Click here for details.
• Lifts one end of a wide array of vehicles and doubles as a support stand to provide clear and free access to the undercarriage. The WL-40 provides 30 of lift height and 40;000 lbs of capacity.
• The WL-40 is a 100% air operated wheel engaging lift system. It lifts one end of a vehicle 30. The lifts then are pinned to double as a support stand. The system is perfect for preventative maintenance; transmission removal and installation; clutch replacements; working on springs; axles; suspensions; wheels and brakes; and any other under vehicle repair.
• Tire gripping carriage
• Gray American manufactured air cylinder
• 100% air operated
• Wide spring loaded base for secure lifting
• Capacity per Set of Two: 40;000 lbs
• Minimum Start Height: Floor Level
• Maximum Lift Height: 30
• Power: Shop Air
• Required Air Pressure: 160 PSI
• Stroke: 30
• Minimum Wheel Diameter (w/Adaptors): 14
• Minimum Wheel Diameter (w/o Adaptors): 21″
• Maximum Wheel Diameter: 24 1/2″
• Overall Width: 45
• Overall Depth: 44
• Overall Height:
• Shipping Weight: 1;965 lbs

“
