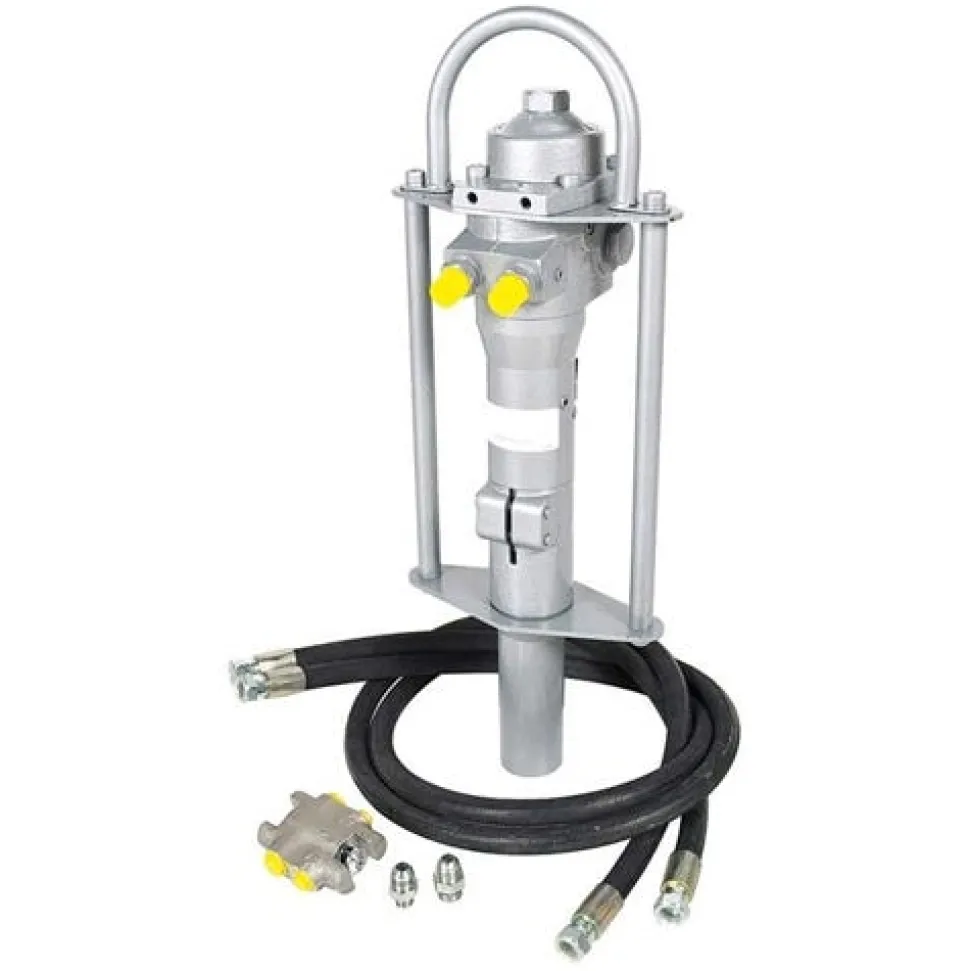

Greenlee 1″ Ground Rod Driver HRD-1
Original price was: $4,076.00.$128.99Current price is: $128.99.
Greenlee
Ground Rod Driver 1 HRD-1
FEATURES:
- A deep rod opening and smooth operation ensures that the driver will not jump off of rods.
- Light weight allows easy mounting on top of rods.
- Can be used with Open and Closed-Center hydraulic systems.
- Dual guide rods provide excellent control for driving rods straight; and the remote on/off valve makes it easy to control the depth of the rod.
SPECIFICATIONS:
| Accessory | 54923 UPC 54923 HTMA Male Coupler; 54924 UPC 54924 HTMA Female Coupler |
|---|---|
| Blow Energy | 63.000 FT-LB |
| Blow Frequency | 1740/MINT At 8 GPM (30 LPM) |
| Hose Length | 70″ |
| Hydraulic Flow Range | 5 – 8 GPM |
| Hydraulic System | Open And Closed-Center |
| Jaw Opening | 1″ |
| Length | 25-1/2 IN |
| Maximum Input Pressure | 2000 PSI |
| Pressure Port | 9/16-18 SAE O-Ring On/Off Valve |
| Replacement Part | 02872 UPC 02872 70 IN Hose Assembly; 111952 UPC 40290 Remote Valve |
| Return Port | 3/4 – 16 SAE O-Ring On/Off Valve |
| Type | HRD Ground Rod |
| Weight | 45 lbs |
“
| Hydraulic System | Open And Closed-Center |
|---|---|
| Hose Length | 70.000 IN (178.000 CM) |
| Maximum Input Pressure | 2000 PSI (138 BAR) |
| Accessory | 54923 UPC 54923 HTMA Male Coupler, 54924 UPC 54924 HTMA Female Coupler |
| Blow Energy | 63.000 FT-LB (85 J) |
| Country of Origin | Bulgaria |
| Return Port | 3/4 – 16 SAE O-Ring On/Off Valve |
| Jaw Opening | 1.000 IN (25.000 MM) |
| Length | 25-1/2 IN (654.000 MM) |
| Weight | 45.000 LB (20.500 KG) Power Unit Only, 53.000 LB (24.000 KG) With Hoses And Control Valve |
| Type | HRD Ground Rod |
| Blow Frequency | 1740/MINT At 8 GPM (30 LPM) |
| Hydraulic Flow Range | 5 – 8 GPM (19 – 30 LPM) |
| Pressure Port | 9/16-18 SAE O-Ring On/Off Valve |
| Replacement Part | 02872 UPC 02872 70 IN Hose Assembly, 111952 UPC 40290 Remote Valve |
| OPT SKU | GRHRD-1 |
|---|---|
| MPN | HRD-1 |
| UPC/GTIN | 783310111931 |
| Product Type | Tampers and Ground Drivers |
| Google Category | Hardware > Tools > Hammers > Powered Hammers |
| Power Method | Hydraulic |
| Shipping Weight | 60.00 |
