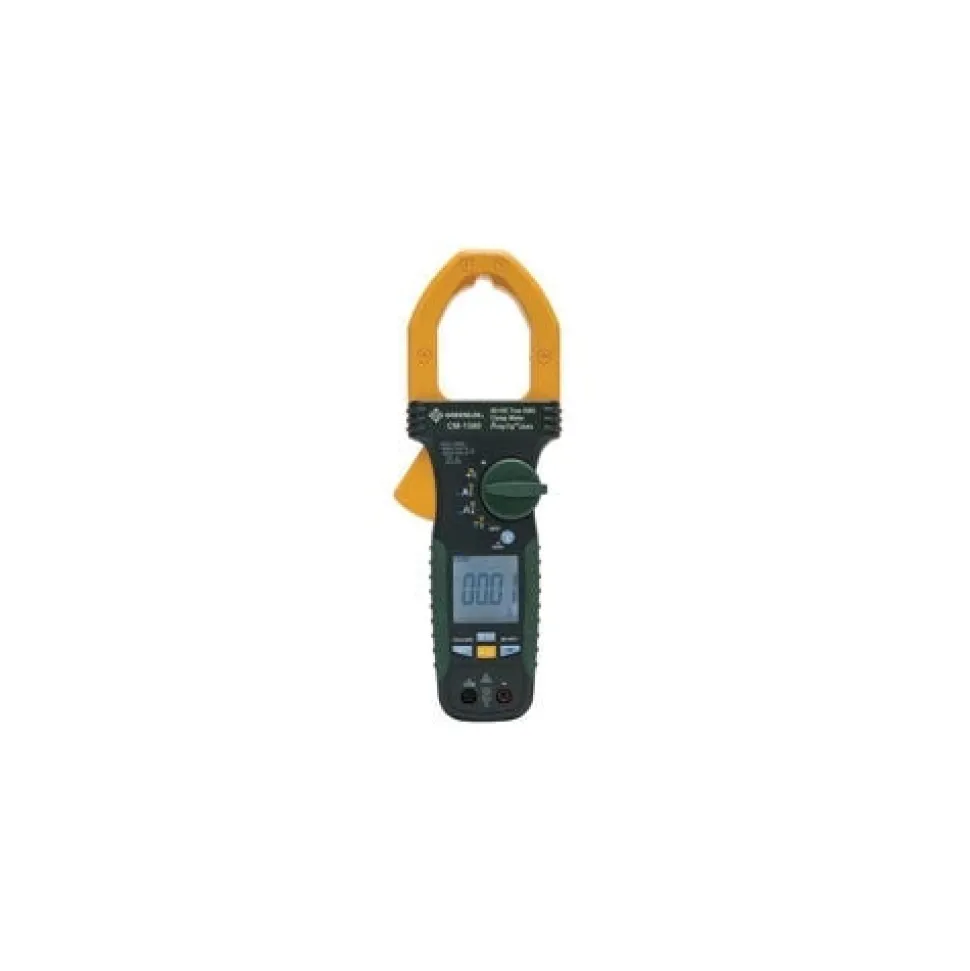

Greenlee 1000 AMP AC + DC TRUE RMS CLAMP METER CM-1560

Greenlee

1000 AMP AC + DC TRUE RMS CLAMP METER CM-1560

FEATURES:

• CM-1560 Clamp meter with Certificate of Calibration
• Measures AC+DC current
• AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
• Also measures DC voltage; resistance; capacitance and frequency
• Tests continuity and diodes
• Flashlight inside clamp jaw for easier work in dark locations
• Backlight & relative mode for added versatility
• Peak-RMS measures motor in rush current
• AmpTip increases accuracy on small wires and low current
• Two voltage detection modes – non-contact or using a single test lead
• Data hold
• Recording of Maximum; Minimum; and Average readings
• Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds

SPECIFICATIONS:

Amperage Measurement :	60; 600; 1000 Amps AC+DC
Display :	LCD; 6000 Count
Frequency Rating : Voltage:	50/60 Hz. Current: 40 to 400 Hz
Includes :	(2) 1.5V AA batteries; test leads; carrying case
Jaw Opening :	2.0 (51 mm)
Measurement Category :	CAT III 1000V; CAT IV 600V
Replacement Part :	TSG-3 test leads; TC-30 carrying case
Resistance Measurement :	600; 6k; 60k Ohms
Standard :	CAT IV; C/US UL Listed; CE
True Power :	AC+DC True RMS
Voltage Measurement :	600; 1000 Volts AC/DC

“
