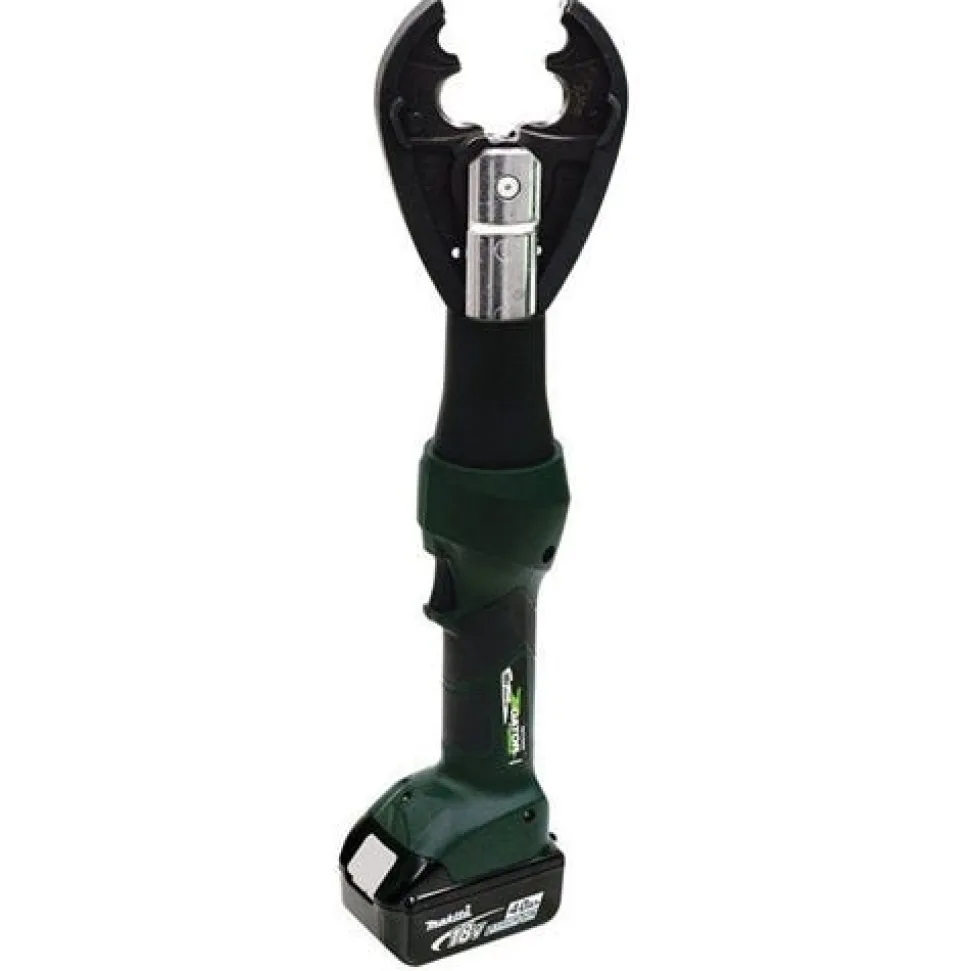

Greenlee 18V Gator 6 Ton Crimper CJD3 Kit EK425LXD11

Greenlee

Includes

• Greenlee
• 6 Ton 18V Battery Powered Crimping Tool w/ CJD3 Jaws EK425LD11

The EK425L is operated with one hand; leaving the other hand free to position the cable and connector

• The crimping jaws open wide to fit easily over connectors
• To help prepare for a crimp; the jaws can be jogged closed until they just grip the connector; allowing the operator to position the cable in the connector before finishing the crimp
• The EK425L will complete about 325 crimps per battery charge on 4/0 AWG splices
• When a crimp is fully completed; the EK425L signals the operator by automatically opening the jaws
• It is then ready to make the next crimp
• And; when the crimping jaws need to be opened before a crimp is complete; the operator can simply push a button on the back side of the tool
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• Accessory : CJXPJ Crimping Jaw With Nicopress X; P; And J Die Grooves; CJB Cutting Jaw For One-Time Disposable Lock Hasps; CJ22 Crimping Jaw For Use With KC22 And KA22 Crimping Dies; KD6-27 W Style Cutter Dies For ACSR To 4/0 AWG; F020735 Kearney D Crimping Die
• Battery : 18 V; 3.0 AMP-HR Lithium-Ion
• Battery Charger : 120 V
• Battery Charge Time : 30 Minutes
• Crimp Cycle Time : Approximately 4 Seconds
• Crimping Capacity : Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors; 1/0-4/0 AWG 0.840 Service Entrance Connectors; 6 – 4/0 AWG Aluminum H Taps; 10-2 AWG Copper H Taps; 6-2/0 AWG Copper Tension Splices; 6-4/0 AWG All Aluminum Tension Splices; 4-1/0 AWG One Piece ACSR
• Crimping Force : 6.000 TON (54.000 KN)
• Estimated Cycles per Charge : Approximately 325
• Handle Type : Cushioned Grip Ergonomic
• Jaw : CJD3
• Length With Jaws : 18-1/2 IN (470.000 MM)
• Replacement Part : CJD3O Crimping Jaw Unit-D3 And O Die Grooves; CJD3BG Crimping Jaw Unit-D3 And BG Die Grooves; CJK Crimping Jaw Unit ForKearney O Dies; CJD3 CrimpingJaw With Single D3 Die Groove; 52176 18 V 3.0 AMP-HR Li-IonBattery; CP1 Tool Pouch
• Sub Brand : Gator
• Weight With Jaws : 6.800 LB (3.000 KG)
• Width Head Open : 4.000 IN (108.000 MM)
• Includes: Gator Crimper; Case; (2) 18V Makita Batteries ; 120V Charger
