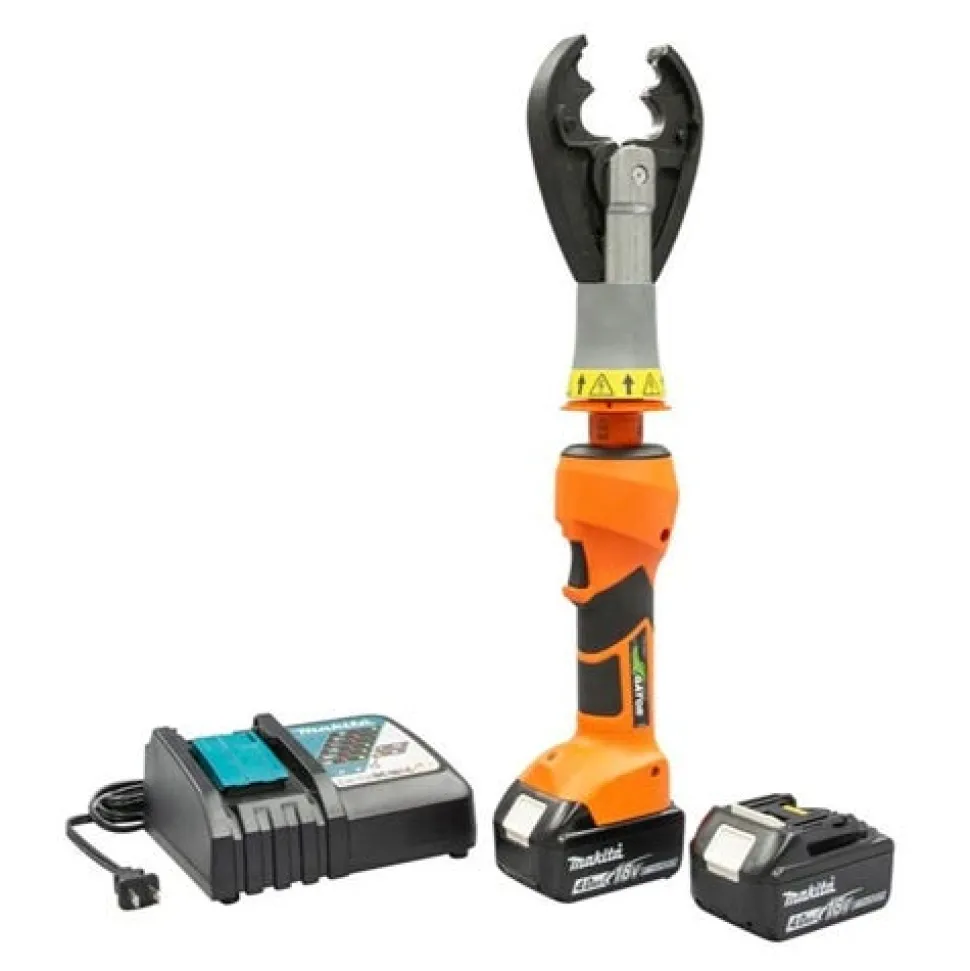

Greenlee 18V Gator 6 Ton Insulated Crimper w/ CJD30 Head Kit EK425VXDO11

Greenlee

6 Ton Insulated Crimper w/ CJD30 Head and 120V Charger EK425VXDO11

FEATURES:

• Brush guarded head – helps avoid accidental contact with conductors.
• Tri-insulation barrier – Provides three (3) layers of protection (Patent Pending).
• 360° Rotating head – For improved agility in confined work spaces.
• Double -tap safety feature option -Prevents unintentional operation.
• Bluetooth communication Connects with Greenlee i-press App.
• Equipped with Intelli-crimp technology.
• 1000v Insulation.

CRIMPING CAPACITY:

Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors; 1/0-4/0 AWG 0.840 Service Entrance Connectors; 6 – 4/0 AWG Aluminum H Taps; 10-2 AWG Copper H Taps; 6-2/0 AWG Copper Tension Splices; 6-4/0 AWG All Aluminum Tension Splices; 4-1/0 AWG One Piece ACSR.

SPECIFICATIONS:

Sub Brand	Gator
Type	Die style crimper
Application	6 Ton Crimping
Standard	C/US UL Listed; IEC 62481-1; VDE; CSA; MET Tested
Overall Length	19 IN (482mm)
Crimping Force	12;000 lbs. (53 kN)
Connector Type	Service entrance connectors; H-Taps; Tension splices; Jumper splices; Stirrups; Color coded lugs & splices.
Handle Type	In-Line Style with over molded rubber grip.
