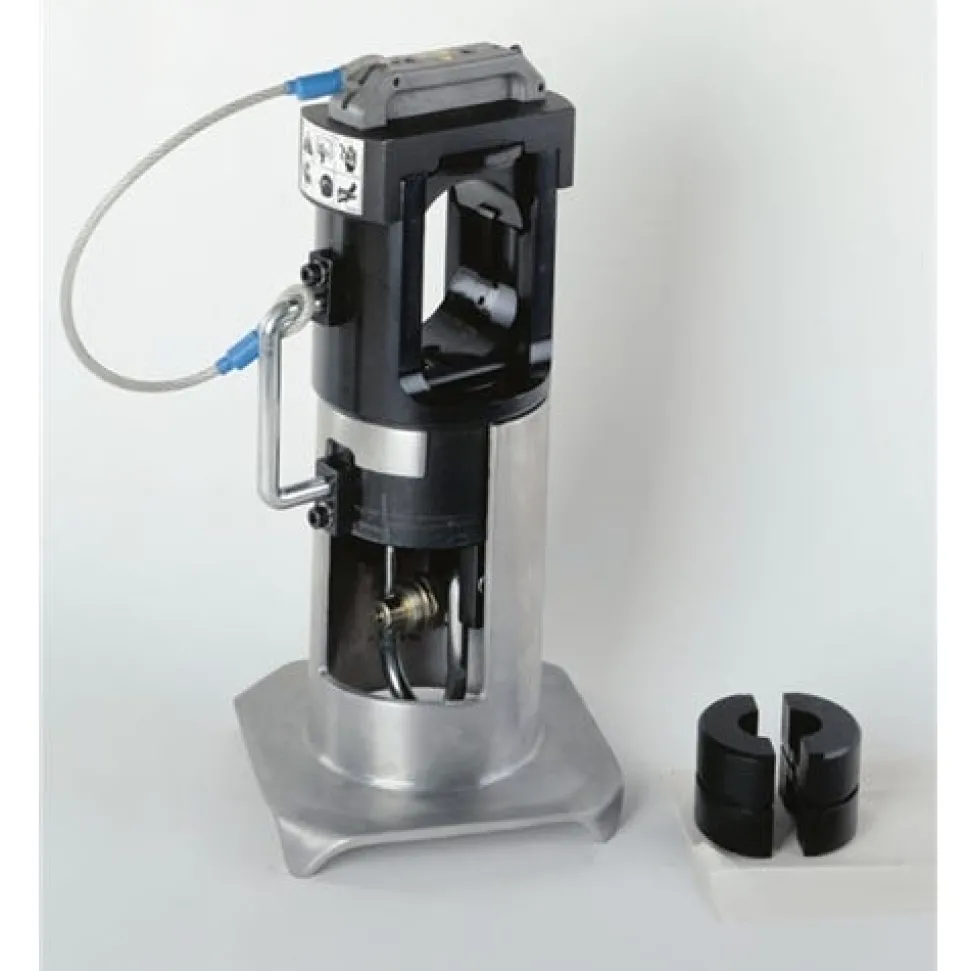

Greenlee 60 Ton Single Acting Crimping Tool RK6040

Name: Greenlee 60 Ton Single Acting Crimping Tool RK6040
Brand: Greenlee
SKU: SKUquJE0lBnVz
Availability: InStock

Original price was: $4,354.00.Current price is: $120.99.

SKU: SKUquJE0lBnVz Categories: Cable & Wire Crimpers / Termination, Power Tools Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
60 Ton Single Acting Crimping Tool RK6040
Ideal tool for use in substation and transmission construction
Accepts Burndy L dies and Alcoa 6000 Series crimping dies
After completing a connection; the top of the head easily swivels 90 and can be lifted from the tool to remove the connector
Removing the tool from the stand exposes a lifting eye for when the tool must be used above ground level
RK6040 requires 10;000 psi (700 bar) single-acting hydraulic power source
DK6040 requires 10;000 psi (700 bar) double-acting hydraulic power source
Equipped with 3/8 IN screw type hydraulic couplers
Includes steel carrying case with storage space for dies
Application : For Use In Substation And Transmission Construction
Capacity : 300 -2000 KCMIL Copper Stranded Code Cable; 250 – 2000 KCMIL Aluminum Stranded Code Cable; 1/0 AWG – 1000 KCMIL Copper Tension Sleeves; 1/0 AWG – 2300 KCMIL Aluminum Tension Sleeves; 1/0 AWG – 2156 (Bluebird) KCMIL ACSR Tension Sleeves; 4/0 AWG – 2500 KCM
Crimping Force : 120000.000 LB (530.000 KN) At 10000 PSI
Height : 17.000 IN (432.000 MM)
Includes : Steel Carrying Case With Storage Space For Dies
Oil Volume Required : 0.75 PT (312 CC)
Operating Pressure : 10000 PSI (700 BAR)
Type : Single Acting
Weight : 45.000 LB (20.000 KG)
Width : 6.000 IN (153.000 MM)

Manufacturer Specifications

Country of Origin	Taiwan
Oil Volume Required	0.75 PT (312 CC)
Width	6.000 IN (153.000 MM)
Height	17.000 IN (432.000 MM)
Included Components	Steel Carrying Case With Storage Space For Dies
Capacity	300 -2000 KCMIL Copper Stranded Code Cable, 250 – 2000 KCMIL Aluminum Stranded Code Cable, 1/0 AWG – 1000 KCMIL Copper Tension Sleeves, 1/0 AWG – 2300 KCMIL Aluminum Tension Sleeves, 1/0 AWG – 2156 (Bluebird) KCMIL ACSR Tension Sleeves, 4/0 AWG – 2500 KCM
Operating Pressure	10000 PSI (700 BAR)
Includes	Steel Carrying Case With Storage Space For Dies
Type	Single Acting
Crimping Force	120000.000 LB (530.000 KN) At 10000 PSI
Weight	45.000 LB (20.000 KG)

Specifications

More Information
OPT SKU	GRRK6040
MPN	RK6040
UPC/GTIN	783310106043
Product Type	Cable & Wire Crimpers / Termination
Google Category	Hardware > Tools > Wire & Cable Hand Tools
Power Method	Hydraulic
Shipping Weight	82.00
