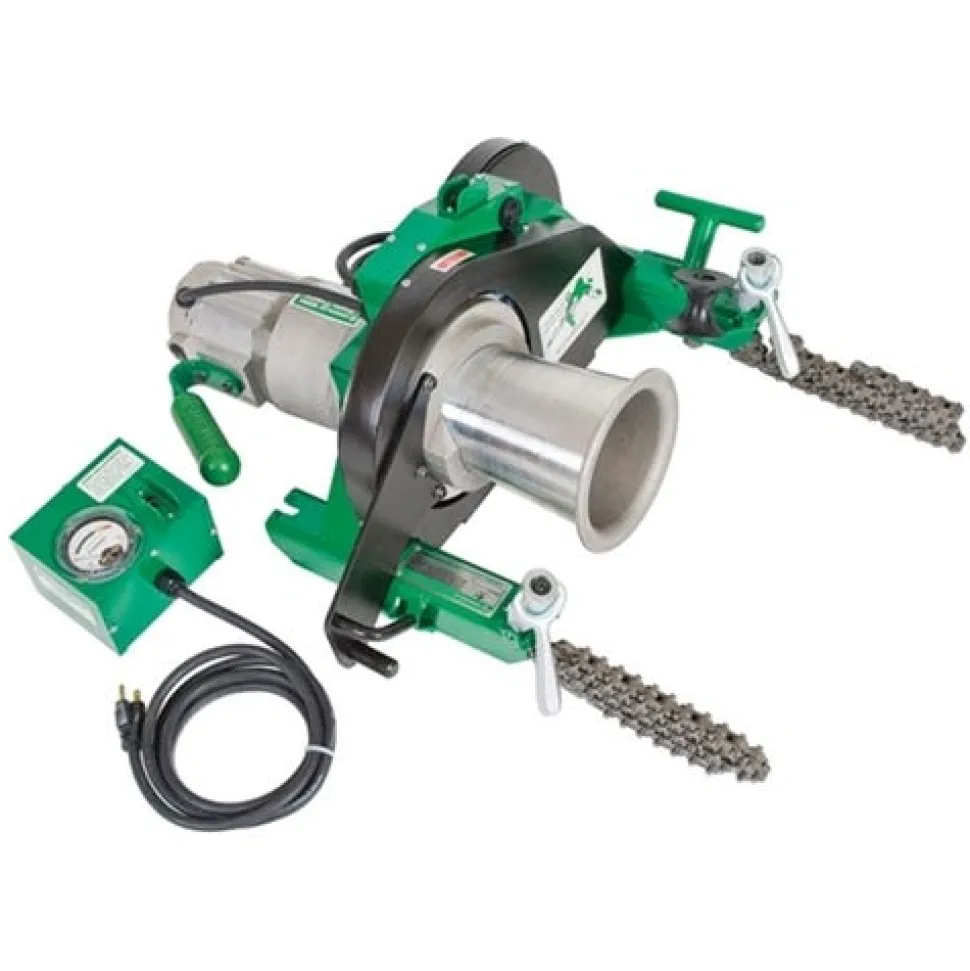

Greenlee 6500 lb. Super Tugger Cable Puller Power Unit 220 VAC 50Hz Force Gauge and Vise Chains 6001-22

$122.89

SKU: SKU2tSLGoN0Pj Categories: Cable & Wire Pullers, Power Tools Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee

6500 lb. Super Tugger Cable Puller Power Unit 220 VAC 50Hz; Force Gauge and Vise Chains 6001-22

FEATURES:

Pull up to 6;500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
Unique floor mounting attachment for quick; reliable setup.
Leaf-type mounting chains won’t twist when tightening.
Heat-treated steel serrated gripper feet for secure mounting to conduit.
Force Gauge included to constantly monitor the pull.
Right-angle sheave allows the operator to stand out of the direct line of force.
Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
Patented.

SPECIFICATIONS:

Accessory	35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M) 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M) 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1;200 FT (19.100 MM x 365.0 M)
Drive Motor	1-1/2 hp; 220 VAC; 50 Hz
Pulling Force	6500.000 LB (28.900 KN) Maximum; 4500.000 LB (20.000 KN) Continuous
Pulling Rope	3/4 IN (19.100 MM) Double-Braided Composite; Rated At 26000 LB (115.600 KN)
Pulling Speeds	16.5 FTPM At No Load (8.800 KN) – 11 (3.4) At 2000 LB (17.900 KN) – 7.5 (2.3) At 4000 LB (26.700 KN) – 6 (1.8) At 6000 LB
Weight	108.000 LB (49.000 KG)
Sub Brand	Super Tugger

INCLUDES:

Force Gauge And Vise Chains

Manufacturer Specifications

Drive Motor	1-1/2 hp, 220 VAC, 50 Hz
Amperage Rating	10 Amps
Voltage	220 VLT
Pulling Speeds	16.5 FTPM At No Load, (8.800 KN) – 11 (3.4) At 2000 LB, (17.900 KN) – 7.5 (2.3) At 4000 LB, (26.700 KN) – 6 (1.8) At 6000 LB
Sub Brand	Super Tugger
Country of Origin	United States
Cable Type	Electrical Cable
Horsepower	1 1/2 HP
Included Components	Force Gauge And Vise Chains
Accessory	35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M)
Type	Puller Assembly
Voltage Rating	250 Volts
Capacity	16.5 FTPM At No Load, (8.800 KN) – 11 (3.4) At 2000 LB, (17.900 KN) – 7.5 (2.3) At 4000 LB, (26.700 KN) – 6 (1.8) At 6000 LB
Pulling Force	6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
Includes	Force Gauge And Vise Chains
Pulling Rope	3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN)
Load	6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
Prime Mover Specification	3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN)
Mounting	Chain Mount

Specifications

More Information
OPT SKU	GR6001-22
MPN	6001-22
UPC/GTIN	783310314660
Product Type	Cable & Wire Pullers
Google Category	Hardware > Tools > Wire & Cable Hand Tools
Power Method	Corded/Electric
Voltage	220V/240V
Shipping Weight	117.00
