Greenlee 6500 lb. Super Tugger Complete Puller Package 6004

Greenlee

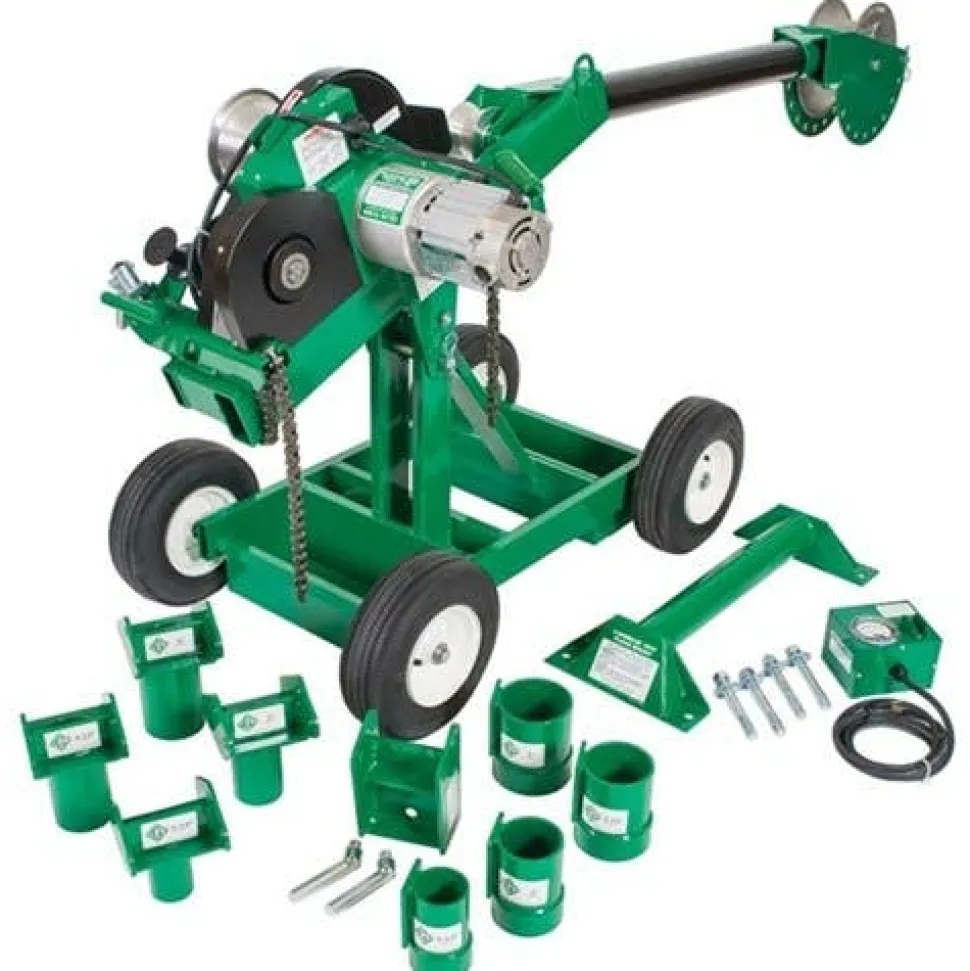

6500 lb. Super Tugger Complete Puller Package 6004

FEATURES:

• Pull up to 6;500 lbs (28.9kN) with less than 27 lbs (120N of operator effort.
• Unique floor mounting attachment for quick; reliable setup.
• Leaf-type mounting chains won’t twist when tightening.
• Heat-treated steel serrated gripper feet for secure mounting to conduit.
• Force Gauge included to constantly monitor the pull.
• Right-angle sheave allows the operator to stand out of the direct line of force.
• Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
• Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.

SPECIFICATIONS:

Pulling Force Maximum	6;500 lbs. (28.9 kN)
Pulling Force Continuous	4;500 lbs. (20 kN)
Length	20-3/4
Width	22-1/2″
Height	12″
Capacity	No load : 5 m/min (16.5 ft/min) 8900 newtons (2000 lb) : 3.4 m/min (11 ft/min) 17.8 kN (4000 lb) : 2.3 m/min (7.5 ft/min)
Pulling Speeds	16.5 FTPM At No Load; (8.800 KN) – 11 (3.4) At 2000 LB; (17.900 KN) – 7.5 (2.3) At 4000 LB; (26.700 KN) – 6 (1.8) At 6000 LB
Drive Motor	1-1/2 hp; 120 VAC; 16 Hz; 20 Amp
Voltage Rating	125 Volts
Cable Type	Electrical cable

INCLUDES:

• 6001 Super Tugger
• Floor Mount
• Mobile Carriage
• Boom Mount
• 4′ Boom Tube
• Nose Unit
• Slip-In Couplings: 2-1/2″; 3″; 3-1/2″; 4″
• Storage Trays

“
