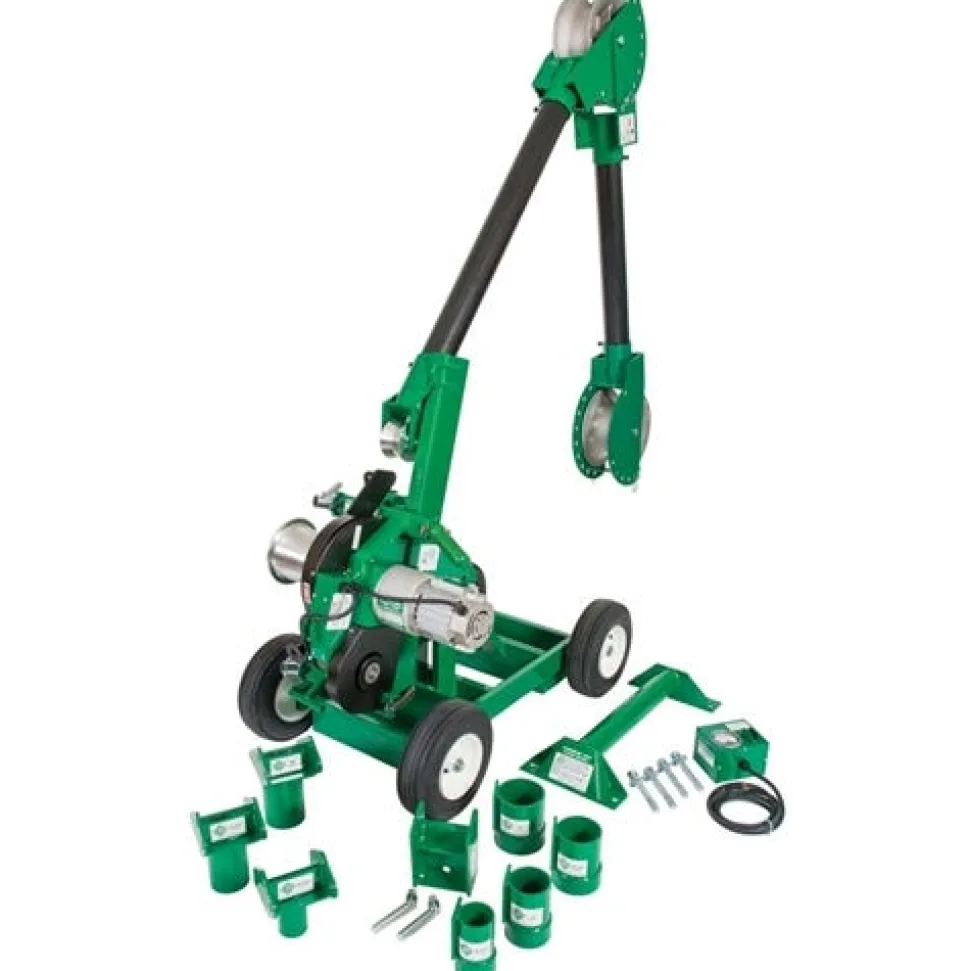

Greenlee 6500 lb. Super Tugger Complete Puller Package 6005

Greenlee

6500 lb. Super Tugger Complete Puller Package 6005

FEATURES:

• Pull up to 6;500 lbs. (28.9 kN) with less than 27 lbs. (120 N) of operator effort.
• Unique floor mounting attachment for quick; reliable setup.
• Leaf-type mounting chains won’t twist when tightening.
• Heat-treated steel serrated gripper feet for secure mounting to conduit.
• Force Gauge included to constantly monitor the pull.
• Right-angle sheave allows the operator to stand out of the direct line of force.
• Audio alarm high force warning and circuit breaker shut off at maximum force for added safety.
• Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan.
• Patented.

SPECIFICATIONS:

Accessory	35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M) 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M) 35101 Double-Braided Composite Rope 3/4 IN x 1;200 FT (19.100 MM x 365.0 M)
Drive Motor	1-1/2 hp; 120 VAC; 16 Hz; 20 Amp
Pulling Force	6500.000 LB (28.900 KN) Maximum; 4500.000 LB (20.000 KN) Continuous
Pulling Rope	3/4 IN (19.100 MM) Double-Braided Composite; Rated At 26000LB (115.600 KN)
Pulling Speeds	16.5 FTPM At No Load (8.800 KN) – 11 (3.4) At 2000 LB (17.900 KN) – 7.5 (2.3) At 4000 LB (26.700 KN) – 6 (1.8) At 6000 LB
Sub Brand	Super Tugger

INCLUDES:

• 6001 Super Tugger
• Floor Mount
• Mobile Carriage
• Boom Mount
• 4.000 FT Boom Tube
• Nose Unit
• 3.000 FT Boom Tube
• Elbow Unit
• 2-1/2 IN; 3.000 IN; 3-1/2 IN; 4.000 IN Slip-In And Screw-On Couplings And Storage Trays
