Sale!

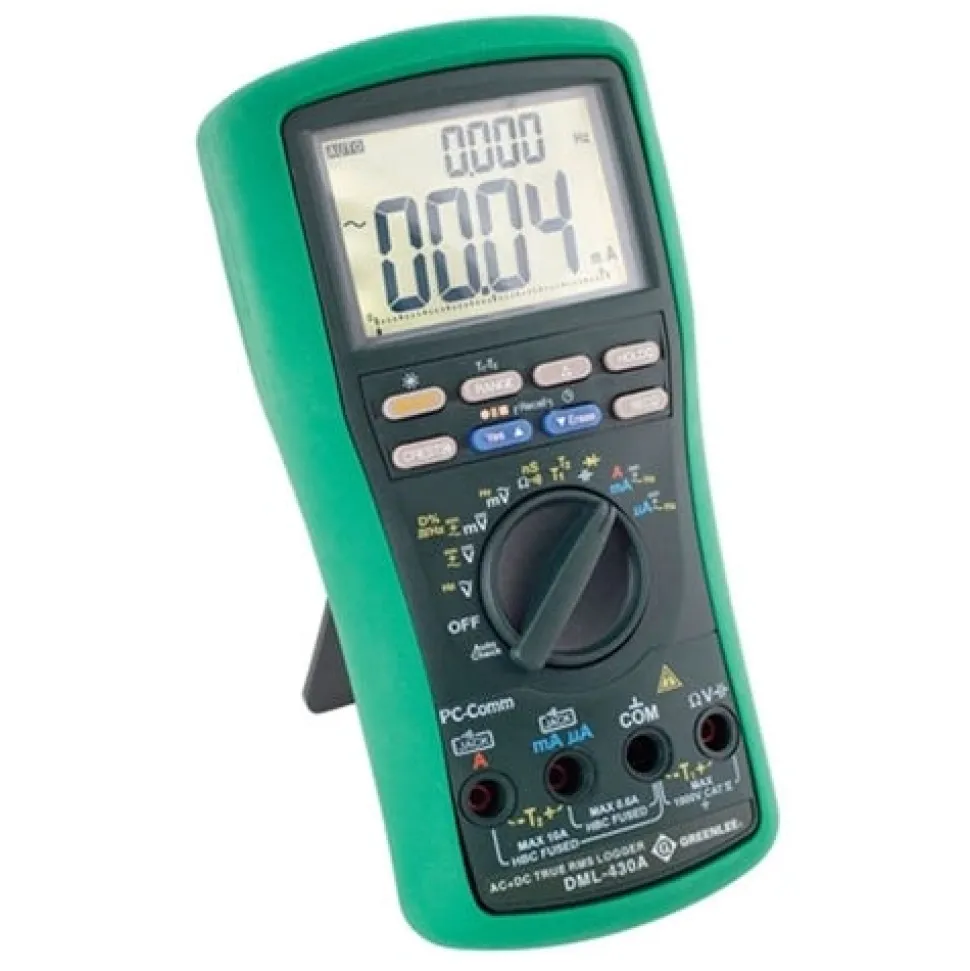

Greenlee ESM 43K Digital Logging Meter – Calibrated DML-430A-C

Original price was: $425.00.Current price is: $140.89.

SKU: SKUI2wLQe42H8 Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
ESM 43K Digital Logging Meter – Calibrated DML-430A-C
Datalogging Capability – Stores 87;000 Single-Channel Or 43;000 Dual-Channel Measurements
Use Optional USB InterfaceDMSC-9U To Transfer Data To PC Or For Direct-To-PC logging
AC+DC True RMS Gives Accurate Readings On Complex Waveforms
Low Impedance AutoCheck Mode – Automatically Selects AC or DC volts; Resistance Or Continuity
Low impedance masks ghost voltage pickup
Backlit LCD Displays 2 Readings With 10;000 Count Resolution
BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
Measures Voltage; Current;Resistance; Conductance; Frequency And Capacitance
Checks Continuity And Tests Diodes
Two Temperature Measurements Using Type K Thermocouples
Accessories Included: (1)9V Battery; Bead Temperature Probe (400F / 204C Max.); Test leads; Protective Boot; Carrying Case
Lifetime Limited Warranty
Includes Certificate of Calibration
Amperage Measurement : 600; 6000 MICAMP; 60; 600 MILAMP; 6; 10 AMP
Battery : (1) 9 V
Capacitance : 60; 600 NFDN 6; 60; 600 MFD; 6; 25 MILFD
Conductance : 99.99 nS
Display : Backlit LCD Displays 2 Readings With 10;000 Count Resolution
Frequency Measurement : 15 HZ – 50 KHZ Sine Wave; 5 HZ – 1 MHZ Logic Level Square Wave
Includes : (1) 9V Battery; Bead Temperature Probe (400 DEG F/204 DEG CMax); Test leads; Protective Boot; Carrying Case
Measurement Category : CAT IV; 1000 V
Replacement Part : TC-20 Carrying Case; TSG-3 Sure-Grip Test Leads; TPB Bead Temperature Probe
Resistance Measurement : 600 OHM; 6; 60; 600 KOHM; 6; 60 MOHM
Standard : CAT IV; C/UL US Listed; TRUE RMS; CE Listed
Temperature Rating : K Type; -58 To 1832 DEG F (-50 To 1000 DEG C)
Type : Digital
Voltage Measurement : 60.00; 600.0 MILV; 9.999; 99.99; 999.9 V

Manufacturer Specifications

Display	Backlit LCD Displays 2 Readings With 10,000 Count Resolution
Frequency Measurement	15Hz- 50kHz Sine Wave, 5Hz – 1MHz Logic Level Square Wave
Battery	(1) 9 V
Voltage Measurement	60.00, 600.0 mV; 9.999, 99.99, 999.9 V
Measurement Category	CAT IV, 1000 V
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Conductance	99.99 nS
Capacitance	60, 600nF; 6, 60, 600Î¼F; 6, 25 mF
Type	Digital
Includes	(1) 9V Battery, Bead Temperature Probe (400Â°F/204Â°CMax), Test leads, Protective Boot, Carrying Case
Resistance Measurement	600Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 10A
Standard	CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Replacement Part	TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe

Specifications

More Information
OPT SKU	GRDML-430A-C
MPN	DML-430A-C
UPC/GTIN	783310357711
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	3.00
