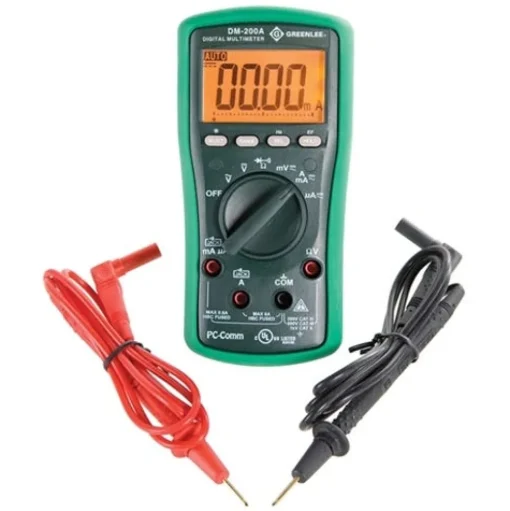

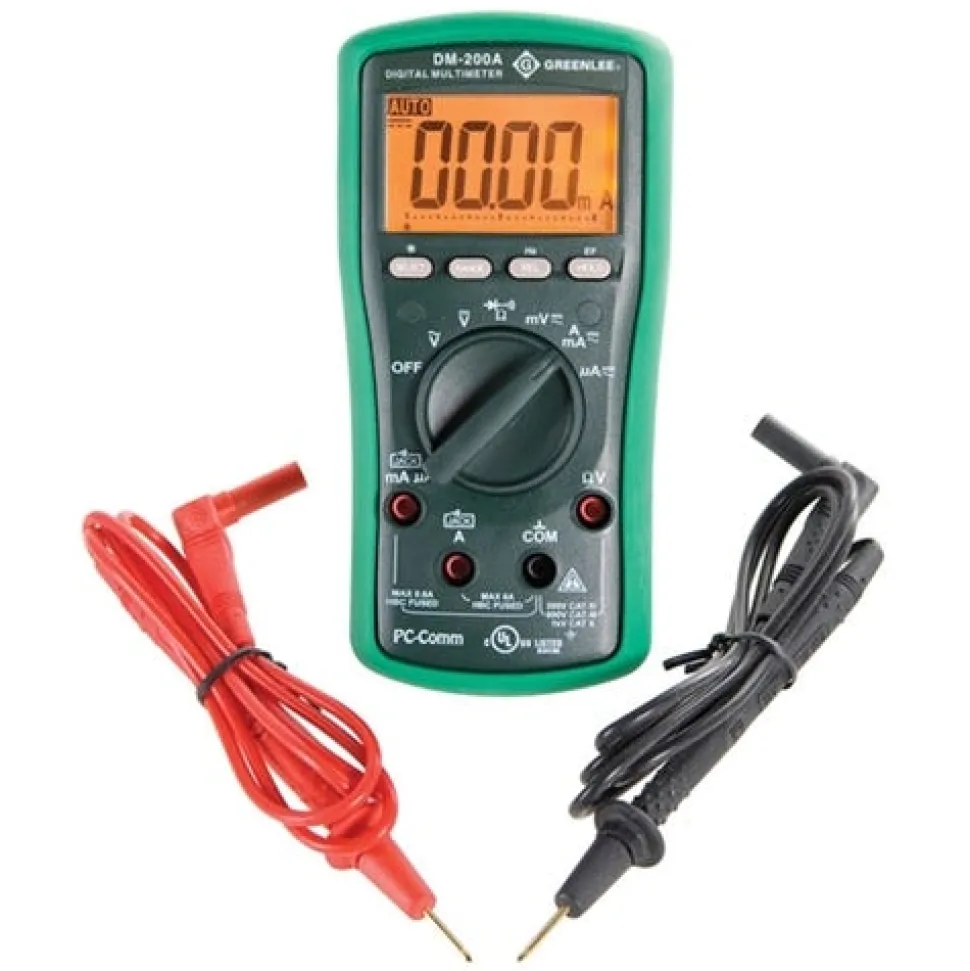

Greenlee ESM Series Digital Multimeter – Calibrated DM-200A-C

Name: Greenlee ESM Series Digital Multimeter - Calibrated DM-200A-C
Brand: Greenlee
SKU: SKUlqQuIYmSOc
Availability: InStock

Original price was: $260.00.Current price is: $130.89.

SKU: SKUlqQuIYmSOc Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
ESM Series Digital Multimeter – Calibrated DM-200A-C
Measures voltage; current; resistance and frequency
Tests continuity and diodes
Backlit LCD with 6;000 count display
Two voltage detection modes – non-contact or using a single test lead
Beepjack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 Interface DMSC-2U For direct-to-PC logging
Lifetime Limited Warranty
Includes Certificate of Calibration
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 8A
Battery : (2) 1.5 V AAA
Capacitance : 60; 600nF; 6; 60; 600; 3000F
Display : Backlit LCD With 6;000 Count
Frequency Measurement : 10Hz – 50kHz Sine Wave; 5Hz- 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400F/204C max); Test leads; Protective Boot
Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; CAT III; CAT II; C/ULUS Listed; CE Listed
Sub Brand : ESM
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Digital
Voltage Measurement : 60; 600 mV; 6; 60; 600; 1000V

Manufacturer Specifications

Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Country of Origin	Taiwan
Includes	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400Â°F/204Â°C max), Test leads, Protective Boot
Standard	CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed
Measurement Category	CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Display	Backlit LCD With 6,000 Count
Included Components	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400Â°F/204Â°C max), Test leads, Protective Boot
Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 8A
Resistance Measurement	600Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Frequency Measurement	10Hz – 50kHz Sine Wave, 5Hz- 999.9kHz Logic Level Square Wave
Type	Digital
Sub Brand	ESM
Capacitance	60, 600nF; 6, 60, 600, 3000Î¼F
Voltage Measurement	60, 600 mV; 6, 60, 600, 1000V
Battery	(2) 1.5 V AAA
Replacement Part	TSG-3 Sure-Grip Test Leads

Specifications

More Information
OPT SKU	GRDM-200A-C
MPN	DM-200A-C
UPC/GTIN	783310357568
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	2.00
