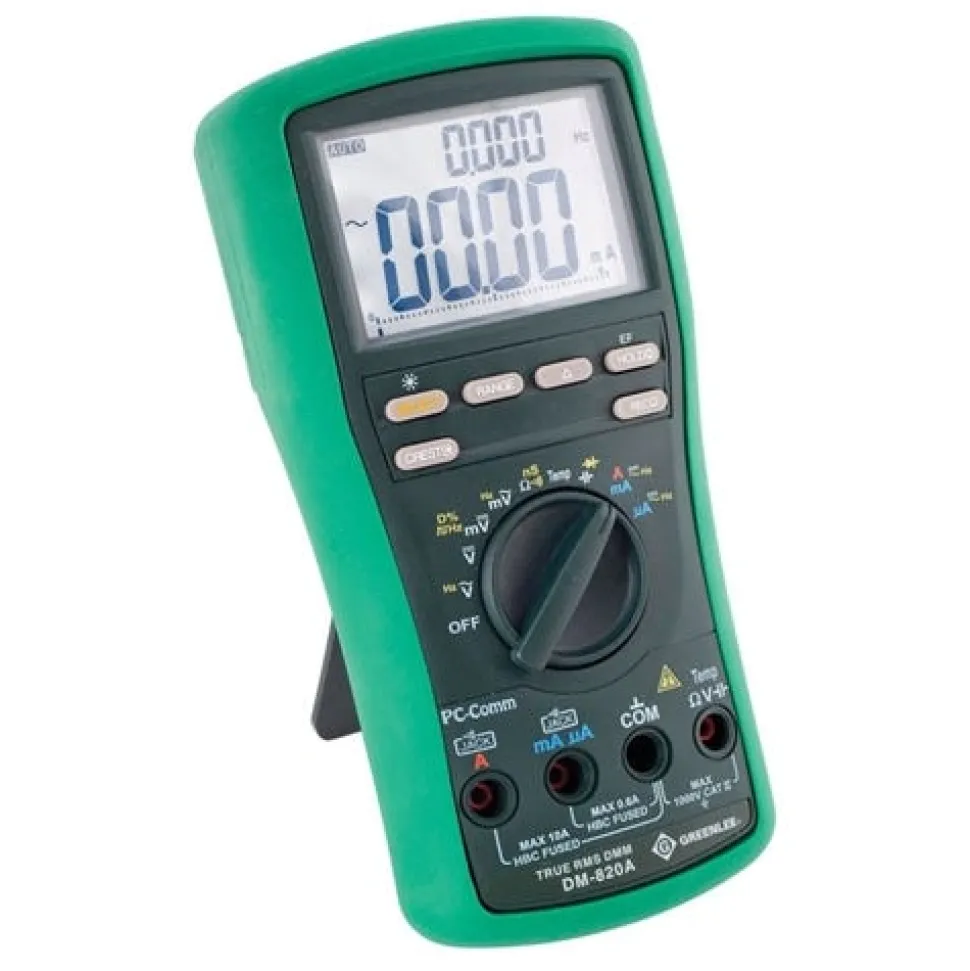

Greenlee ESM Series Digital Multimeter – Calibrated DM-820A-C

$130.89

SKU: SKUiOECw54lr2 Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Description
Reviews (0)

Additional Details

Greenlee
ESM Series Digital Multimeter – Calibrated DM-820A-C
True RMS for no-compromise accuracy
Measures voltage; current;resistance; Capacitance And Frequency
Tests Continuity And Diodes
Backlit LCD With Dual 10;000 Count Displays
BeepJack Warns When Test Leads Are Incorrectly Inserted In Current Measurement Terminals
Automatic And Manual RangeSelection
Relative Offset Mode To See Changes In Measurements
Data Hold
Use Optional USB InterfaceDMSC-9U For Direct-To-PC Logging
Lifetime Limited Warranty
Crest Capture (Peak Hold)Plus Recording Of Max; Min; Max-Min Average
Two Voltage Detection Modes – Non-Contact Or Using A Single Test Lead
One Temperature Measurement Using A Type K Thermocouple
Conductance Measurement
Accessories included: (1)9V battery; bead temperature probe (DM-820A; DM-830A only; 400F/204C max); testleads; protective boot; carrying case
Includes Certificate of Calibration
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 10A
Battery : (1) 9 V
Capacitance : 60; 600nF; 6; 60; 600F; 6; 25 mF
Conductance : 99.99 nS
Display : Backlit LCD With Dual 10;000 Count
Frequency Measurement : 15Hz- 50kHz Sine Wave; 5Hz – 1MHz Logic Level Square Wave
Includes : (1) 9V Battery; Bead Temperature Probe (DM-820A; DM-830A Only; 400 DEG F/204 DEG C Max); Test Leads; Protective Boot; Carrying Case
Measurement Category : CAT IV; 1000 V
Replacement Part : TC-20 Carrying Case; TSG-3 Sure-Grip Test Leads; TPB Bead Temperature Probe (Included With DM-820A; DM-830A)
Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; C/UL US Listed; TRUE RMS; CE Listed
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Digital
Voltage Measurement : 60; 600 mV; 9.999; 99.99; 999.9 V

Manufacturer Specifications

Included Components	(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400Â°F/204Â°C Max), Test Leads, Protective Boot, Carrying Case
Standard	CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Includes	(1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400Â°F/204Â°C Max), Test Leads, Protective Boot, Carrying Case
Replacement Part	TC-20 Carrying Case, TSG-3 Sure-Grip Test Leads, TPB Bead Temperature Probe (Included With DM-820A, DM-830A)
Voltage Measurement	60, 600 mV, 9.999, 99.99, 999.9 V
Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 10A
Measurement Category	CAT IV, 1000 V
Battery	(1) 9 V
Conductance	99.99 nS
Country of Origin	Taiwan
Display	Backlit LCD With Dual 10,000 Count
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Type	Digital
Resistance Measurement	600Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Capacitance	60, 600nF; 6, 60, 600Î¼F; 6, 25 mF
Frequency Measurement	15Hz- 50kHz Sine Wave, 5Hz – 1MHz Logic Level Square Wave

Specifications

More Information
OPT SKU	GRDM-820A-C
MPN	DM-820A-C
UPC/GTIN	783310357605
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	3.00
