Sale!

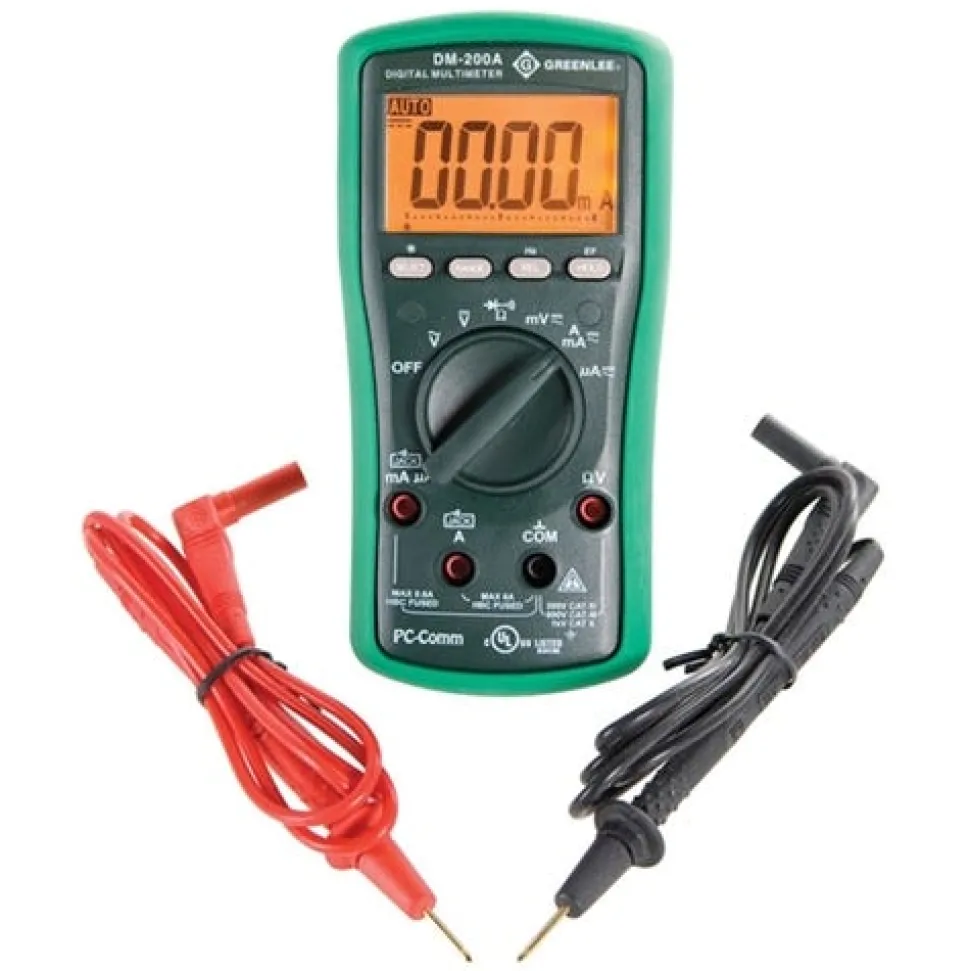

Greenlee ESM Series Digital Multimeter DM-200A

Name: Greenlee ESM Series Digital Multimeter DM-200A
Brand: Greenlee
SKU: SKU5npaBZUcb1
Availability: InStock

Original price was: $115.00.Current price is: $75.99.

SKU: SKU5npaBZUcb1 Categories: Power Tools, Voltage Testing & Measuring Tag: Greenlee Brand: Greenlee

Additional Details

Greenlee
ESM Series Digital Multimeter DM-200A
Measures voltage; current; resistance and frequency
Tests continuity and diodes
Backlit LCD with 6;000 count display
Two voltage detection modes – non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual range selection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty
Accessories included: (2)1.5V AAA batteries; bead temperature probe (DM-210A; DM-510A only; 400F/204C max); test leads; protective boot
Amperage Measurement : 600; 6000A; 60; 600mA; 6; 8A
Battery : (2) 1.5 V AAA
Capacitance : 60; 600 nF; 6; 60; 600; 3000F
Display : Backlit LCD With 6;000 Count
Frequency Measurement : 10Hz – 50kHz Sine Wave; 5Hz – 999.9kHz Logic Level Square Wave
Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400 DEG F/204 DEG C max); Test leads; ProtectiveBoot
Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
Replacement Part : TSG-3 Sure-Grip Test Leads
Resistance Measurement : 600 O; 6; 60; 600 kO; 6; 60 MO
Standard : CAT IV; CAT II; C/UL US Listed; CAT III; CE Listed
Sub Brand : ESM
Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
Type : Digital
Voltage Measurement : 60; 600 mV; 6; 60; 600; 1000V

Manufacturer Specifications

Includes	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
Type	Digital
Amperage Measurement	600, 6000Î¼A; 60, 600mA; 6, 8A
Capacitance	60, 600 nF; 6, 60, 600, 3000Î¼F
Measurement Category	CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Standard	CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
Country of Origin	Taiwan
Sub Brand	ESM
Included Components	(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot
Frequency Measurement	10Hz – 50kHz Sine Wave, 5Hz – 999.9kHz Logic Level Square Wave
Replacement Part	TSG-3 Sure-Grip Test Leads
Resistance Measurement	600 Î©; 6, 60, 600 kÎ©; 6, 60 MÎ©
Display	Backlit LCD With 6,000 Count
Battery	(2) 1.5 V AAA
Temperature Rating	K Type, -58 To 1832Â°F (-50 To 1000Â°C)
Voltage Measurement	60, 600 mV; 6, 60, 600, 1000V

Specifications

More Information
OPT SKU	GRDM-200A
MPN	DM-200A
UPC/GTIN	783310087403
Product Type	Voltage Testing & Measuring
Google Category	Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools
Power Method	Cordless
Shipping Weight	2.00
