- Greenlee

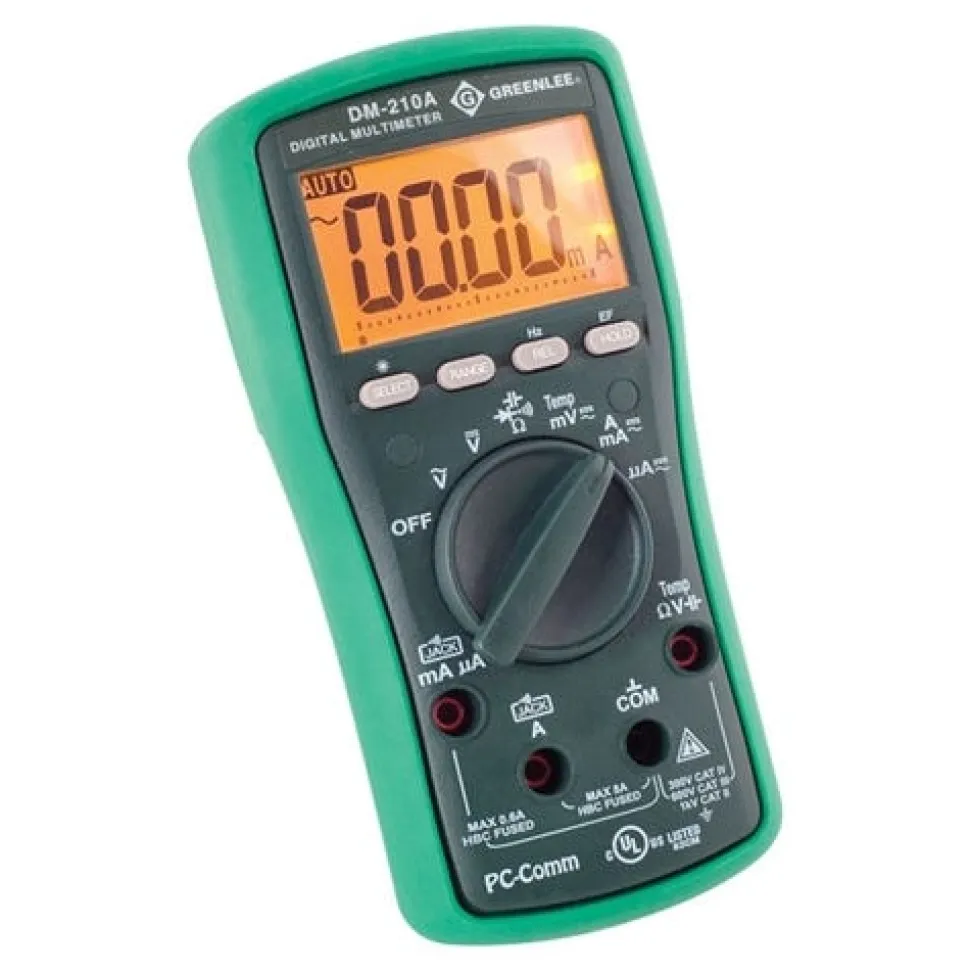

- ESM Series Digital Multimeter DM-210A
- Measures voltage; current; resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6;000 count display
- Two voltage detection modes – non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual rangeselection
- Relative offset mode to see changes in measurements
- Data hold
- Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
- Lifetime Limited Warranty
- Accessories included: (2)1.5V AAA batteries; bead temperature probe (DM-210A; DM-510A only; 400F/204C max); test leads; protective boot
- Measures capacitance
- Measures temperature using a type K thermocouple
- Amperage Measurement : 600; 6000 MICAMP; 60; 600 MILAMP; 6; 8 AMP
- Battery : (2) 1.5 V AAA
- Capacitance : 60; 600 NFD; 6; 60; 600; 3000MFD
- Display : Backlit LCD With 6;000 Count
- Frequency Measurement : 10 HZ – 50 KHZ Sine Wave; 5 HZ – 999.9 KHZ Logic Level Square Wave
- Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400 DEG F/204 DEG C max); Test leads; ProtectiveBoot
- Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
- Replacement Part : TSG-3 Sure-Grip Test Leads
- Resistance Measurement : 600 OHM; 6; 60; 600 KOHM; 6; 60 MOHM
- Standard : CAT IV; CAT II; C/UL US Listed; CAT III; CE Listed
- Sub Brand : ESM
- Temperature Rating : K Type; -58 To 1832 DEG F (-50 To 1000 DEG C)
- Type : Digital
- Voltage Measurement : 60; 600 MILV; 6; 60; 600; 1000 V
| Sub Brand | ESM |
|---|---|
| Resistance Measurement | 600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM |
| Country of Origin | Taiwan |
| Display | Backlit LCD With 6,000 Count |
| Type | Digital |
| Voltage Measurement | 60, 600 MILV, 6, 60, 600, 1000 V |
| Replacement Part | TSG-3 Sure-Grip Test Leads |
| Includes | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Frequency Measurement | 10 HZ – 50 KHZ Sine Wave, 5 HZ – 999.9 KHZ Logic Level Square Wave |
| Temperature Rating | K Type, -58 To 1832 DEG F (-50 To 1000 DEG C) |
| Standard | CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed |
| Included Components | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Battery | (2) 1.5 V AAA |
| Measurement Category | CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Capacitance | 60, 600 NFD, 6, 60, 600, 3000MFD |
| Amperage Measurement | 600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP |
| OPT SKU | GRDM-210A |
|---|---|
| MPN | DM-210A |
| UPC/GTIN | 783310087410 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 2.00 |
