- Greenlee

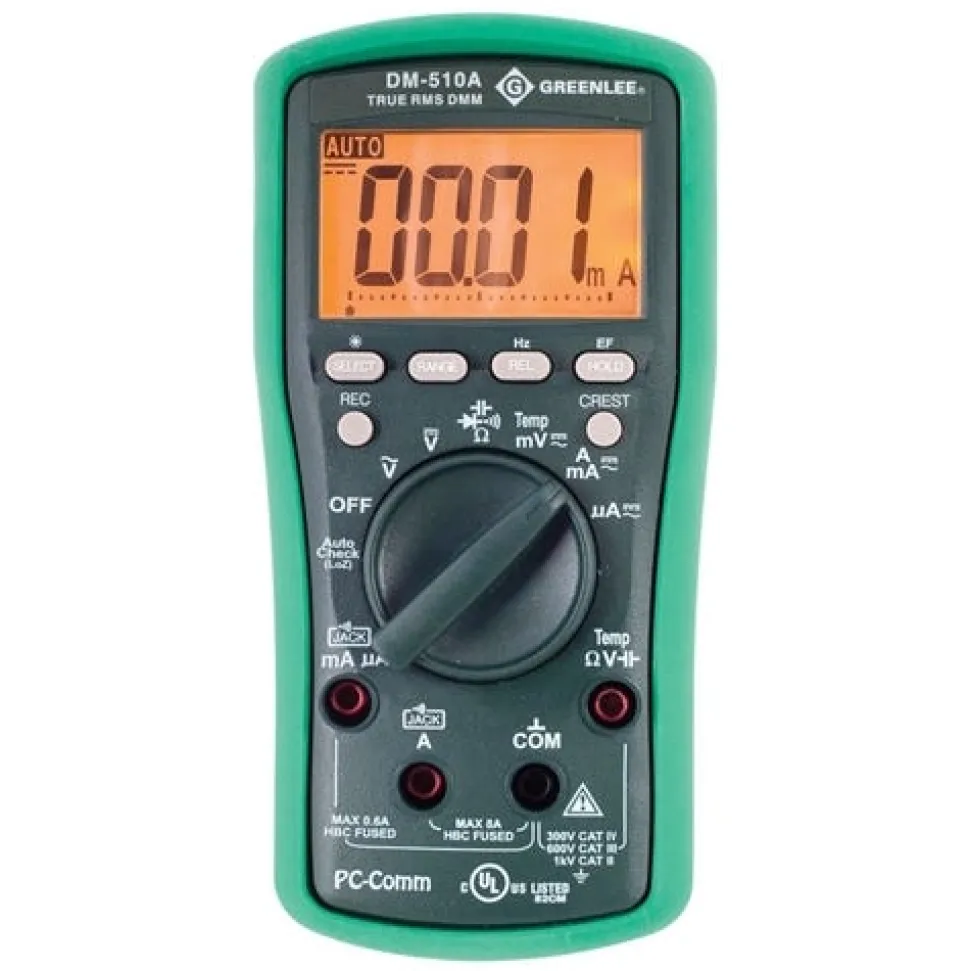

- ESM Series Professional Plant Digital Multimeter – Calibrated DM-510A-C
- Measures voltage; current; resistance and frequency
- Tests continuity and diodes
- Backlit LCD with 6;000 count display
- Two voltage detection modes – non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual rangeselection
- Relative offset mode to see changes in measurements
- Data hold
- Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
- Lifetime Limited Warranty
- Accessories included: (2)1.5V AAA batteries; bead temperature probe (DM-210A; DM-510A only; 400F/204C max); test leads; protective boot
- True RMS for no-compromise accuracy
- Crest capture (peak hold)plus recording of max; min; max-min and average
- Low impedance AutoCheck mode – automatically selects AC or DC volts; resistance or continuity; Low impedance masks ghost voltage pickup
- Measures capacitance
- Measures temperature using a type K thermocouple
- Includes Certificate of Calibration
- Amperage Measurement : 600; 6000A; 60; 600mA; 6; 8A
- Battery : (2) 1.5 V AAA
- Capacitance : 60; 600 nF; 6; 60; 600; 3000F
- Display : Backlit LCD With 6;000 Count
- Frequency Measurement : 10Hz – 50kHz Sine Wave; 5Hz – 999.9kHz Logic Level Square Wave
- Includes : (2) 1.5V AAA Batteries; Bead Temperature Probe (DM-210A; DM-510A Only; 400 DEG F/204 DEG C max); Test leads; ProtectiveBoot
- Measurement Category : CAT IV 300 V; CAT III 600 V; CAT II 1000 V
- Replacement Part : TSG-3 Sure-Grip Test Leads
- Resistance Measurement : 600O; 6; 60; 600 kO; 6; 60 MO
- Standard : CAT IV; CAT III; CAT II; C/ULUS Listed; CE Listed
- Sub Brand : ESM
- Temperature Rating : K Type; -58 To 1832F (-50 To 1000C)
- Type : Professional Plant Digital
- Voltage Measurement : 60; 600 mV; 6; 60; 600; 1000V
| Voltage Measurement | 60, 600 mV; 6, 60, 600, 1000V |
|---|---|
| Includes | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Standard | CAT IV, CAT III, CAT II, C/ULUS Listed, CE Listed |
| Country of Origin | Taiwan |
| Type | Professional Plant Digital |
| Battery | (2) 1.5 V AAA |
| Included Components | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Resistance Measurement | 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ |
| Amperage Measurement | 600, 6000μA; 60, 600mA; 6, 8A |
| Measurement Category | CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Replacement Part | TSG-3 Sure-Grip Test Leads |
| Sub Brand | ESM |
| Display | Backlit LCD With 6,000 Count |
| Frequency Measurement | 10Hz – 50kHz Sine Wave, 5Hz – 999.9kHz Logic Level Square Wave |
| Temperature Rating | K Type, -58 To 1832°F (-50 To 1000°C) |
| Capacitance | 60, 600 nF; 6, 60, 600, 3000μF |
| OPT SKU | GRDM-510A-C |
|---|---|
| MPN | DM-510A-C |
| UPC/GTIN | 783310357582 |
| Product Type | Voltage Testing & Measuring |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Electrical Testing Tools |
| Power Method | Cordless |
| Shipping Weight | 2.00 |
