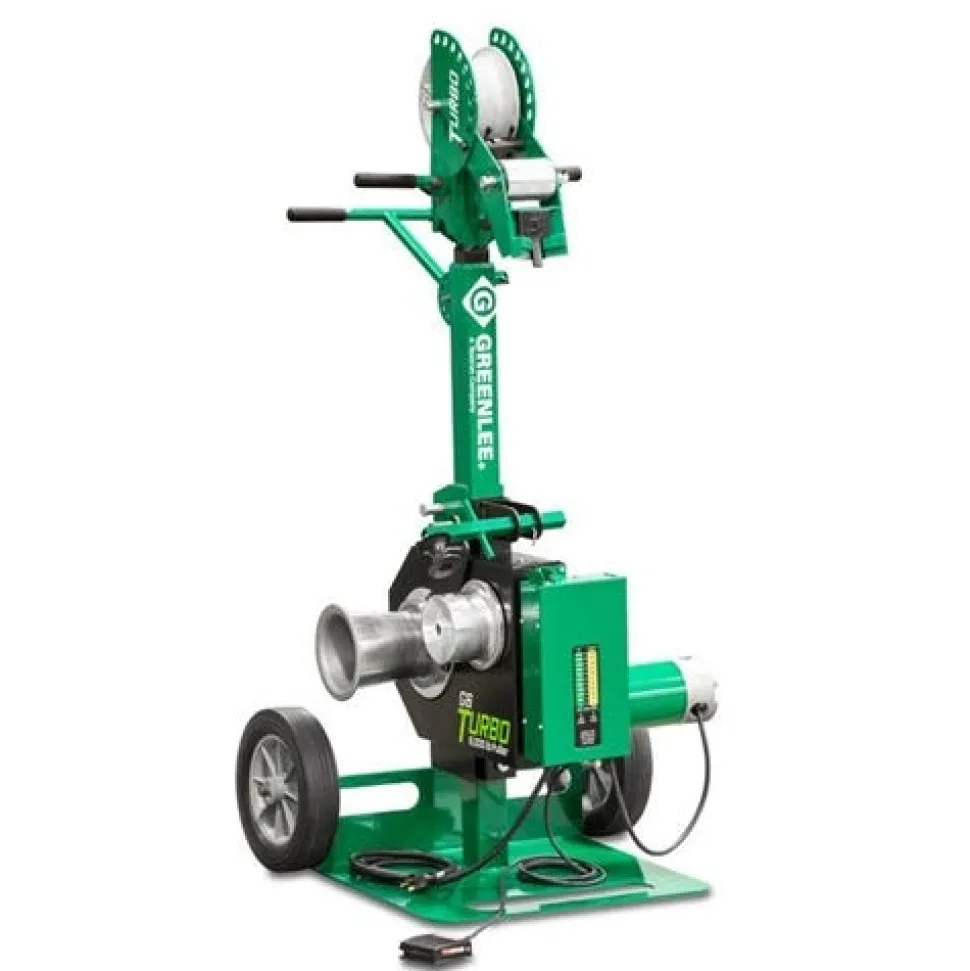

Greenlee G6 Tugger Turbo 6,000 lbs Cable Puller G6

Greenlee

6000 LB Cable Puller G6

FEATURES:

• Up to 60% Faster compared to competition.
• Setup in less than 60 seconds.
• No loose pieces; allowing quick changeover for easy transport.
• No adapter needed – easily clamp conduit in seconds.
• Dual capstans increase pulling speeds and maximize efficiency.
• Two speed motor specially designed for 6;000 lb. loads.
• Circuit breaker monitor for safe auto shutoff and extend motor life.
• Force indicator prevents damage to puller.
• Built-in dolly for fast and easy transport.
• Ergonomic design eliminates heavy lifting during setup.
• Right-angle sheave allows the operator to stand out of the direct line of force.
• Pulling Force : 4000.000 LB (17.800 KN) Continuous; 5000.000 LB (22.200 KN) Intermittent; 6000.000 LB (26.700 KN) Momentary.
• Pulling Speeds:
• No Load Main Capstan Speed : High Speed 28 ft/min (8.53 m/min); Low Speed 11 ft/min (3.35 m/min)
• No Load Secondary Capstan Speed : High Speed 90 ft/min (27.43 m/min); Low Speed 35 ft/min (10.70 m/min)
• Download the G6 Turbo Tugger cable Puller Instructional Manual HERE.

SPECIFICATIONS:

Application	Cable Puller
Pulling Rope	3/4 IN (19.100 MM) Double-Braided Composite; Rated At 26000 LB (115.600 KN)
Drive Motor	120 VAC; 50/60 Hz; 12 amps
Standard Boom Extension	7.50′ (2.29 m)
Weight	257 lbs (114 kg)

INCLUDES:

• Force Gauge and foot switch

“
