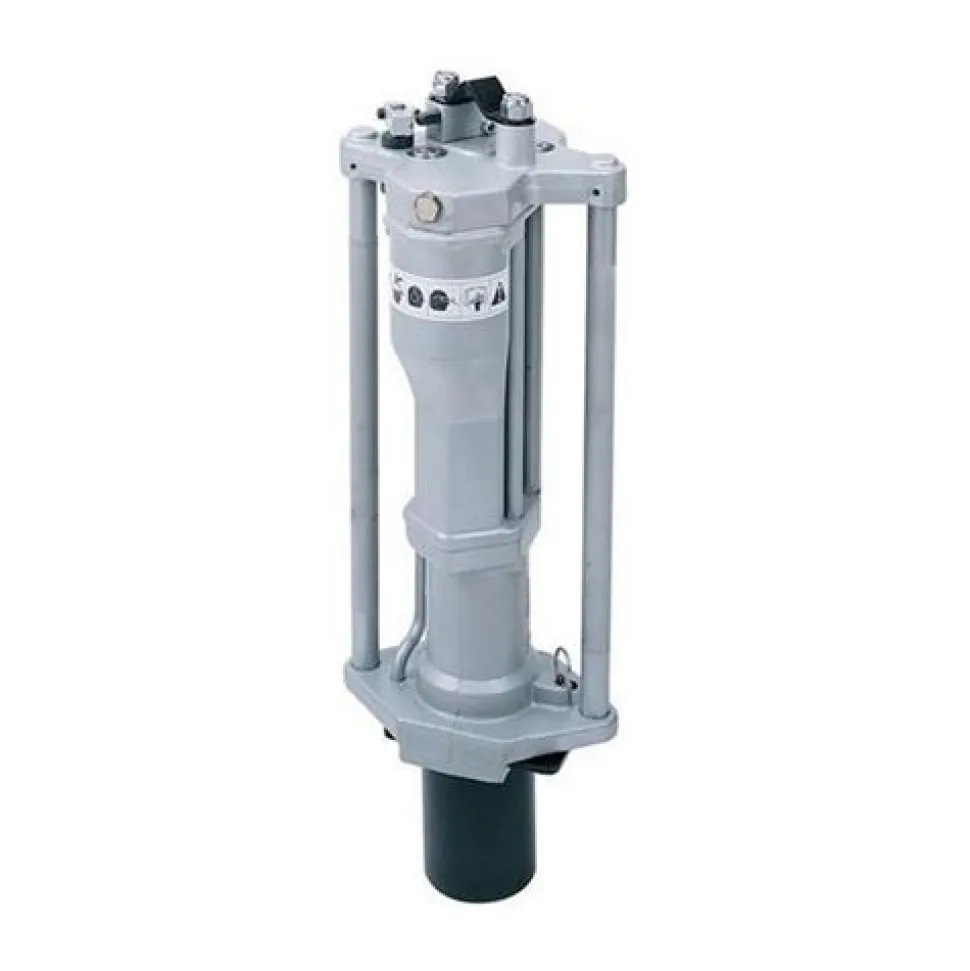

Greenlee Sign Post Driver with Remote ON/OFF Valve HPD-HV-U

Greenlee

Sign Post Driver with Remote ON/OFF Valve HPD-HV-U

FEATURES:

• Can drive a variety of post sizes from small delineater posts up to 3-1/2 IN round posts including square; U channel; breakaway stubs; round; T fence; and wood.
• Quick change front head design accommodates adapters for different types of posts.
• Dual guide handles for good directional control.
• A deep post opening and smooth operation ensures that the driver will not jump off of posts.
• Available with integral trigger or remote on/off valve.

SPECIFICATIONS:

Blow Energy	81.000 FT-LB
Blow Per Minute	1500 BPM At 8 GPM
Hydraulic Flow Range	5 – 8 GPM
Hydraulic System	Open And Closed-Center
Length	32
Maximum Input Pressure	2300 PSI
Pressure Port	9/16-18 SAE O-Ring Boss On/Off Valve
Replacement Parts	1803066 15 IN Hose Assembly; 111952 Remote Valve
Return Port	3/4 – 16 SAE O-Ring Boss On/Off Valve
Type	HPD Series Sign Post
Weight	75 lbs

ACCESSORIES:

• UA 49532 Universal post adapter
• RA96 49533 3.8″ (96 mm) round postadapter
• SA54 49534 1/8″ square post adapter
• F020196K HTMA FemaleCoupler 1/2″ NPTF internal thread
• F020197K HTMA Male Coupler

“
