Hougen 18V Makita Cordless Metal Hole Punch (1/4 Max Thick) 76000PR
Original price was: $3,024.00.$122.99Current price is: $122.99.
Hougen

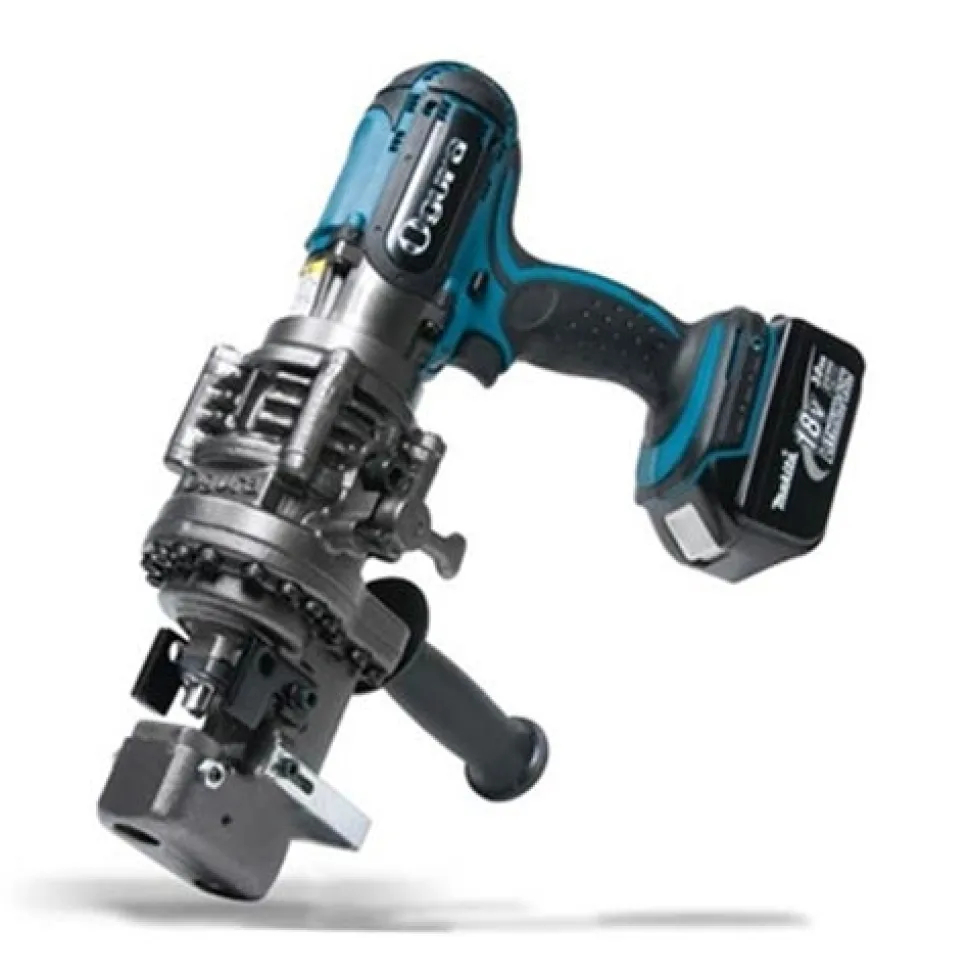

Hougen 18V Makita Cordless Metal Hole Punch 76000PR
Quickly punch holes from almost anywhere with the cordless 76000PR electro-hydraulic hole puncher. No cords or hoses to contend with. All self contained for quick; accurate holes in as little as 4.5 seconds. The 76000PR uses a quick charging 18V battery. The handle rotates 360 degrees for getting into a variety of locations and the punch weighs only 17.4 lbs (7.9 kg). The cordless puncher also includes the power retract system which if the punch ever resists exiting the material; it can be power reversed out of the hole.
FEATURES:
- Designed for applications typically done with hand held twist drills.
- Uses the Makita 18V battery platform.
- At just 16.5 pounds with battery; this is the lightest punch around.
- Punch round & oblong in materials up to 1/4 thick.
- Its 1.02″ throat depth provides excellent reach and versatility.
- Power retractable punch
SPECIFICATIONS:
| Pressure (Tons) | 11 |
|---|---|
| Approx. Punching Speed | 4.5 secs |
| Max Hole Size – Round | 19/32″ – (15mm) |
| Max Hole Thickness – Round | 1/4″ – (6.35mm) |
| Max Hole Size – Oblong | 7/16″ x 5/8″ (11mm x 15.9mm) |
| Max Hole Thickness – Oblong | 1/4″ – (6.35mm) |
| Max Throat Depth | .98″ – (25mm) |
| Weight | 17.42 lbs – (7.9 kg) |
| Shipping Weight | 34.8 lbs – (15.8 kg) |

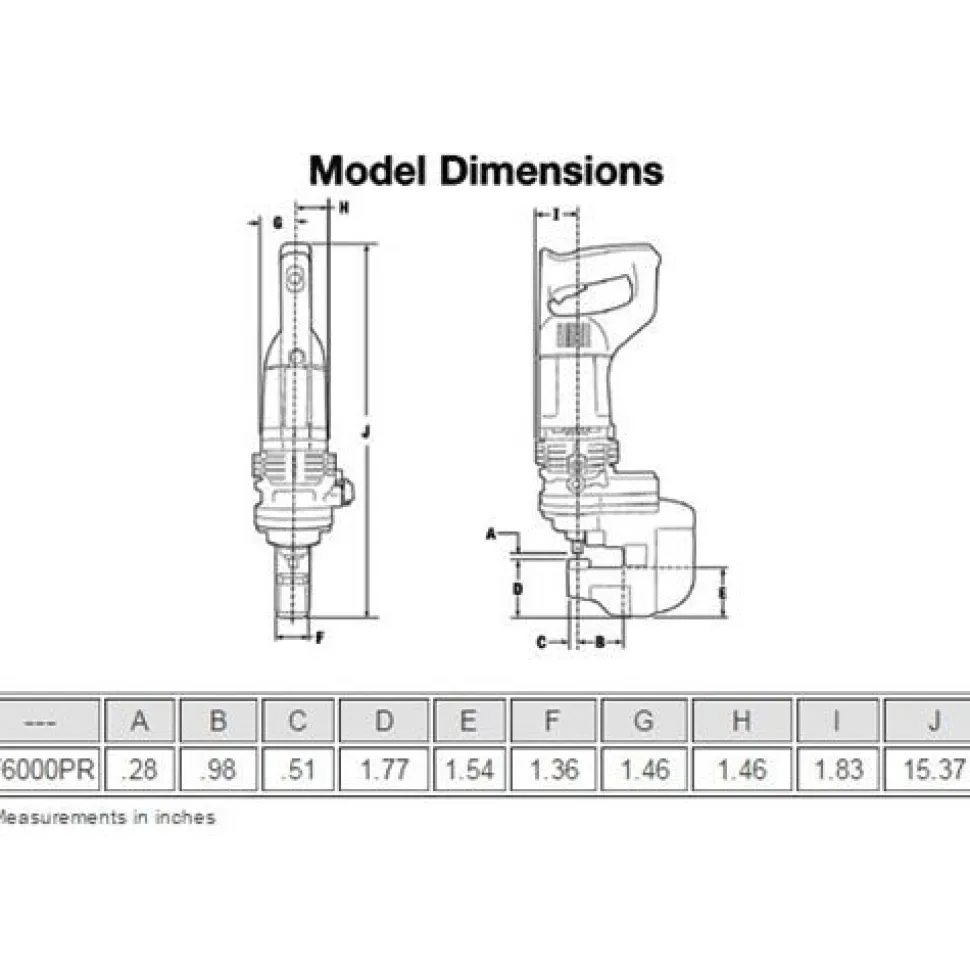

- Dimensions: 15.37″ L x 4.53″ W x 11.52″ H390.5mm H x 115mm W x 292.5mm H Includes: carrying case; 15/32″ (12mm) punch & die; charger.Optional Stand: 76641Extra battery: 76094
ROUND PUNCHES:
| ROUND PUNCH | MATERIAL | DIE | |||||
|---|---|---|---|---|---|---|---|
| Size | Part No. | Thickness | Style | Size | Part No. | ||
| Normal | Actual | Metric | |||||
| 5/32″ | .157 | 4mm | 76558 | 5/64 (.078) 14 GA. | F;A | Die 5/32 SA | 76571 |
| 3/16″ | .197 | 5mm | 76559 | 5/64 (.078) to .118 14 to 12 GA. |
F;A | Die 3/16 SA | 76572 |
| 7/32″ | .217 | 5.5mm | 76560 | 5/64 (.078) to .118 14 to 12 GA. |
F;A | Die 7/32 SA | 76573 |
| 15/64″ | .236 | 6mm | 76561 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 15/64 SA | 76574 |
| 5/64 (.125) to 5/32 (.157) 10 to 3 GA | F;A | Die 15/64 SB | 76575 | ||||
| 1/4″ | .256 | 6.5mm | 76562 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 1/4 SA | 76576 |
| >5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 1/4 SA | 76577 | ||||
| 5/16″ | .315 | 8mm | 765 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 15/64 SA | 76578 |
| >5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 15/64 SB | 76579 | ||||
| 11/32″ | .335 | 8.5mm | 76564 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 11/32 SA | 76580 |
| >5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 11/32 SB | 76581 | ||||
| 3/8″ | .394 | 10mm | 76565 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 3/8 SA | 76582 |
| >5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 3/8 SB | 76583 | ||||
| 7/16″ | .433 | 11mm | 76566 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | 7/16 SA | 76584 |
| >5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | 7/16 SB | 76585 | ||||
| 15/32″ | .472 | 12mm | 76567 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 15/32 SA | 76586 |
| >5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 15/32 SB | 76587 | ||||
| 1/2″ | .512 | 13mm | 76568 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 1/2 SA | 76588 | >5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 1/2 SB | 76589 |
| 9/16″ | .551 | 14mm | 76569 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 9/16 SA | 76590 |
| 5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 9/16 SB | 76591 | ||||
| 19/32″ | .591 | 15mm | 76570 | 5/64 (.078) to 1/8 (.125) 14 to 11 GA | F;A | Die 19/32 BA | 76592 |
| 5/64 (.125) to 1/4 (.250) 10 to 3 GA | F;A | Die 19/16 SB | 76593 | ||||
“
| OPT SKU | HOU0760102 |
|---|---|
| MPN | 76000PR |
| UPC/GTIN | 662850022771 |
| Product Type | Mag Drills |
| Google Category | Hardware > Tools > Drills > Drill Presses |
| Product Line | 18V |
| Power Method | Cordless |
| Package | Kit/Set |
| Voltage | 18V |
| Shipping Weight | 42.00 |
