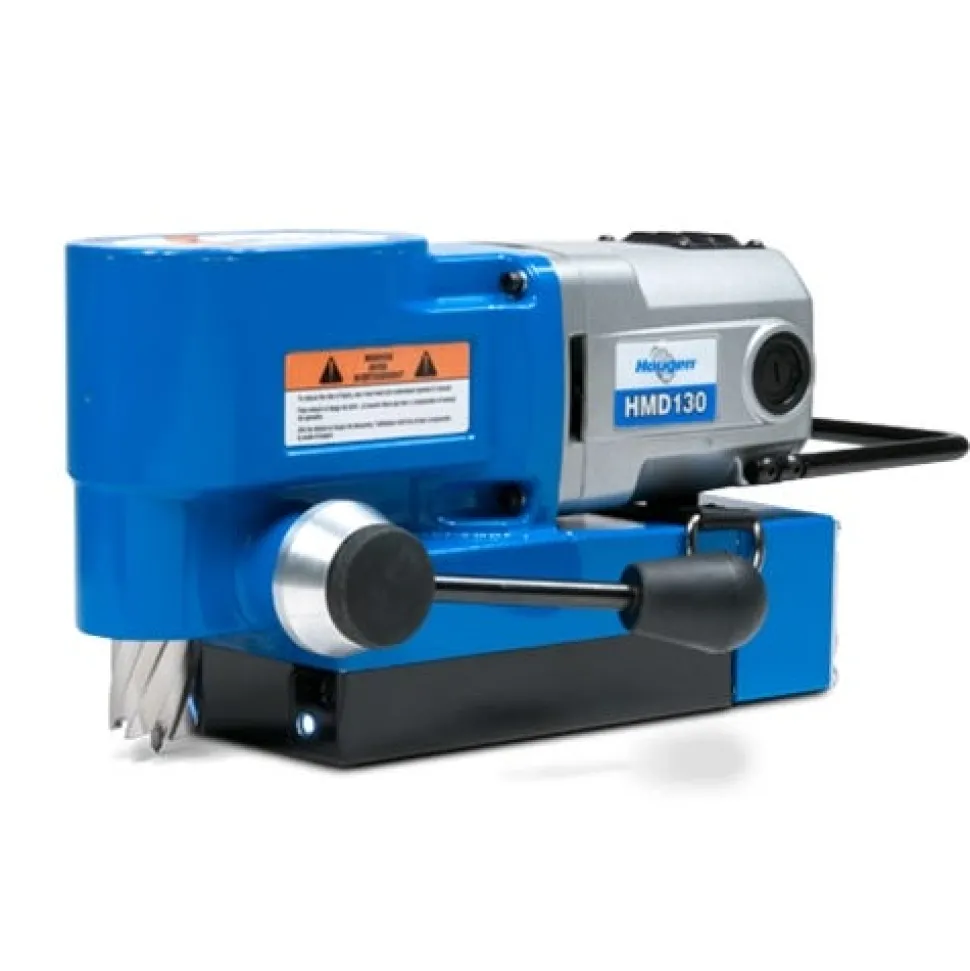

Hougen HMD130 Ultra Low Profile 1-3/8″ Magnetic Drill 0130101

$134.89

SKU: SKUoFKtFPu0rt Categories: Mag Drills, Power Tools Tag: Hougen Tools Brand: Hougen Tools

Description
Reviews (0)

Additional Details

Hougen

HMD130 Ultra Low Profile 1-3/8″ Magnetic Drill 0130101

Ultra Low Profile lightweight right angle drill with large capacity. Uses RotaLoc Plus annular cutters which requires no tools for installation or removal.

Features:

Lightweight at only 23.8 lbs (10.8kg).
Patented quill feed arbor for smooth cuts and minimal maintenance.
Pilot light.
Positive slug ejection.
High torque gearing.
Lift detector safety system.
Feed handle switches easily from side to side.
Ratchet can be used in place of feed handle.
Rear mounted controls.
Carrying handle.
Carrying Case included.
Two year warranty.

Specifications:

Electrical System	115V, 50/60 Hz – 9A, 1035W 230V, 50/60 Hz – 4.5A, 1035W
Motor	8A (120V), 4A (240V) 450 RPM
Diameter	7/16″- 1-3/8″ (12mm – 35mm)
Depth	1″ (25mm)
Cutter/Mount	RotaLoc Plus Cutters with push & turn style shank
Dimensions	6-15/32″ H x 6-3/4″ W x 14-11/16″ L (164mm H x 171mm W x 373mm L)
Magnet	Base: 4″ W x 9″ L (102mm W x 229mm L) 1″ Plate (25mm): Dead Lift 2165 lb. (982 kg) / Drillpoint Breakaway 735 lb. (333 kg) 3/8″ Plate (9.5mm): 1200 lb. (544 kg) / 500 lb. (227 kg)
Weight	23.8 lb. (10.8 kg) • Shipping 31.7 lb (14.4 kg)
Shipping Dimensions	19.5″ x 17″ x 8″ (49.5 x 43.1 x 22.9 cm)

Includes:

(1) HMD130 Ultra Low Profile 1-3/8″ Magnetic Drill (0130101)

(1) Carrying Case

(1) Slick-Stik Lubricant

(1) Safety Strap

Specifications

More Information
OPT SKU	HOU0130101
MPN	0130101
UPC/GTIN	662850023747
Product Type	Mag Drills
Google Category	Hardware > Tools > Drills > Drill Presses
Power Method	Corded/Electric
Voltage	110V/120V
Shipping Weight	33.00
