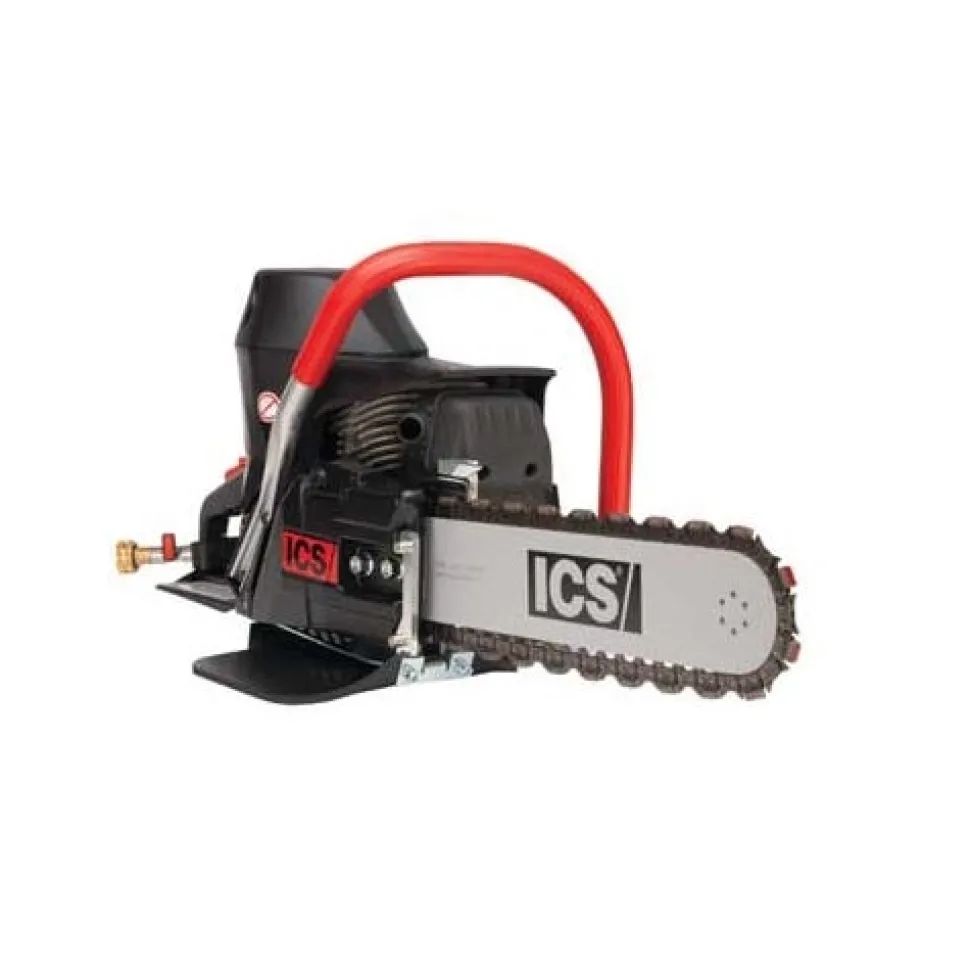

ICS Concrete Chain Saw 680ES 12″ Gas Power TwinMax-29 Chain 576154

** Non-Returnable After First Use **

ICS CONCRETE CHAIN SAW 680ES 12 GAS POWER TWINMAX-29 CHAIN 576154

FEATURES:

Built to meet the operational and flexibility demands of the general construction audience; the 680GC stands alone in terms of reliability and value. Packed with innovations and loaded with dependability; the 680GC is the perfect saw for the less frequent user. The distinctive black powerhead houses redesigned carburetion and ignition systems that work together to ensure easy starting; cooler operation; and dependable performance at just about any elevation. Improved airflow design keeps the engine much cooler; extending its life. Available with 12 (30 cm) and 14 (35 cm) guidebars and the entire line of TwinMAX diamond chain.

• POWERHEAD: 680ES 576155
• BAR: 12″ (30cm) 71395
• CHAIN: 12″ TwinMax-29 Chain 584290
• ENGINE SPEED: 11500 +/- 500 rpm; 2800-3200 rpm idle
• HORSEPOWER: 5 hp (3.7 kW) @ 9500 rpm
• ENGINE TYPE: 2-stroke; single cylinder; air cooled
• DISPLACEMENT: 4.7 cu. inch (76.5 cc)
• CHAIN SPEED: 5300 fpm (27 m/s); free running
• POWERHEAD DIMENSIONS: 18″ (45 cm) Length; 11.5″ (29 cm) Height; 10″ (25 cm) Width
• NOISE LEVEL: 100 dBA @ 3 ft (1 m)
• VIBRATION LEVEL: 10.5 meters/second2 (front handle)
• WATER SUPPLY: Minimum 20 psi (1.5 bar)
• FUEL MIX RATIO: 25:1 (4%) fuel-to-oil
• FUEL CAPACITY: 0.23 gal (.88 liter); 15-18 minutes run time per tank
• Recommended for pre cutting:HD MAXX ORANGE WET/DRY HIGH SPEED BLADE 12″ X .235

Chain Selection Chart:

“
