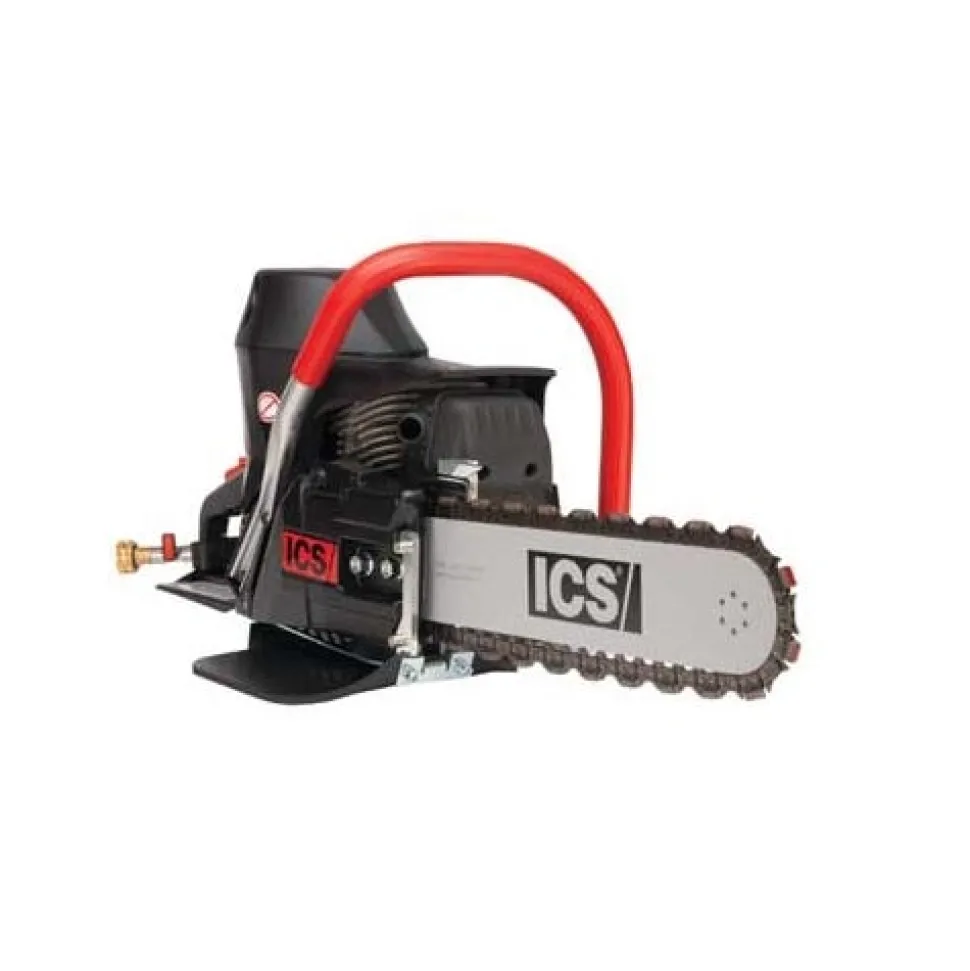

ICS Concrete Chain Saw 680ES 14″ Gas Power TwinMax-32 Chain 576153

** Non-Returnable After First Use **

ICS Concrete Chain Saw 680ES 14″ Gas Power TwinMax-32 Chain 576153

FEATURES:

Built to meet the operation and flexibility demands of the general construction user; the 680ES stands alone in terms of reliability and value.  Easy to start with  a new multifunction lever to control choke; run; and stop functions. The distinctive black powerhead houses specially designed  carburetion and ignition systems that work together to ensure easy starting; cooler operation and dependable  performance at just about any elevation.  Available with 12-inch (30 cm) and 14-inch (35 cm)  guidebars and the entire line of MAX series diamond chain.

• POWERHEAD: 680ES 576155
• BAR: 14″ (35cm) 513122
• CHAIN: 14″ TwinMax-32 Chain 584292
• Engine Type: 2-stroke; Air Cooled
• Displacement: 76.5 cc (4.7 cu-in)
• Horsepower: 3.7 kW (5 hp) @ 9;500 rpm
• Torque: 4.1 Nm (36.3 in-lbs) @ 6;500 rpm
• Engine Speed: 11500 +/- 500 rpm (max); 2;800 – 3;200 rpm (idle)
• Chain Speed at Maximum Power: 34.5 m/s (6800 ft/min)
• Weight: 9.5 kg (21 lbs) powerhead only
• Powerhead Dimensions: 46 cm (18 in) length 29 cm (11.5 in) height;25 cm (10 in) width
• Starter: Dust and water resistant
• Ignition: Special water resistant electronic ignition
• Fuel ratio: 4% (25:1) gasoline-to-oil
• Fuel Capacity: 0.88 liter (0.23 gallon)
• Water Supply Requirement: Minimum 1.5 bar (20 psi)
• Water Flow Requirement: Minimum: 4 lpm (1 gpm)
• Recommended for pre cutting:HD MAXX ORANGE WET/DRY HIGH SPEED BLADE 12″ X .235

Chain Selection Chart:
