Ingersoll Rand Air Hammer Kit – Standard Duty 117K

Ingersoll Rand

Air Hammer Kit – Standard Duty 117K

An economical air hammer with a longer piston stroke; this tool is designed for exhaust work; bolt cutting; and front end work. The trigger control and a built-in power regulator give you full control of the speed and power.

FEATURES:

• Up to 2;000 blows per minute.
• Alloyed steel barrel and heat-treated piston for longer life.
• Built-in power regulator and trigger control.
• Shank Opening: Round.

SPECIFICATIONS:

Blows per Minute	2;000
Bore Diameter in. (mm)	.69″ (17)
Stroke Length in. (mm)	3.5″ (89)
Tool Weight lbs (kg)	4.1 (1.86)
Overall Length in. (mm)	9.9″ (251)
Average Air Consumption cfm (L/min)	3 (85)
Air Consumption @ Load cfm (L/min)	14 (396)
Vibration m/s2: 9.2; uncertainty	3.0
Sound Pressure/Power dBA	103.5 / 116.5
Air Inlet NPTF in.	1/4″
Min. Hose Size in. (mm)	3/8″ (10)
Chisel Shank Diameter in. (mm)	0.401″ (10.2)

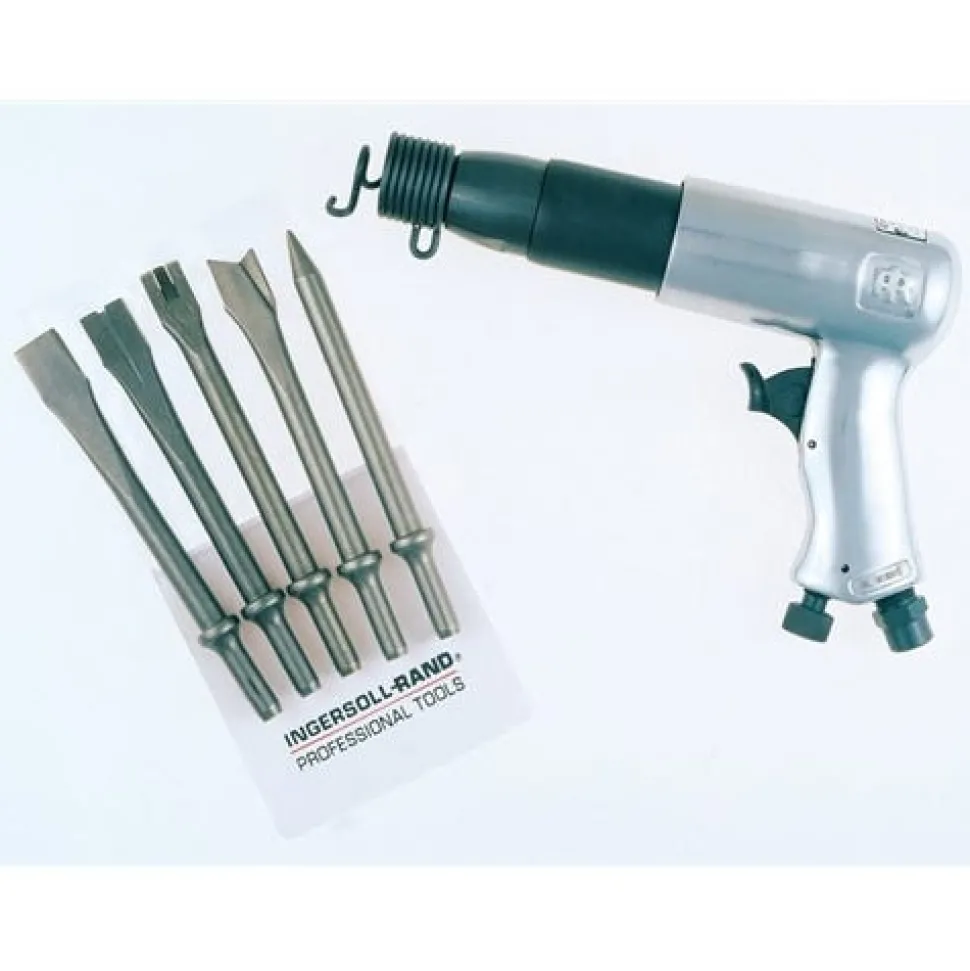

INCLUDES:

• (1) 117 Air Hammer
• (1) punch chisel
• (1) edging tool
• (1) tail pipe cutter
• (1) 3/4″ wide blade straight chisel
• (1) cutting chisel.

“
