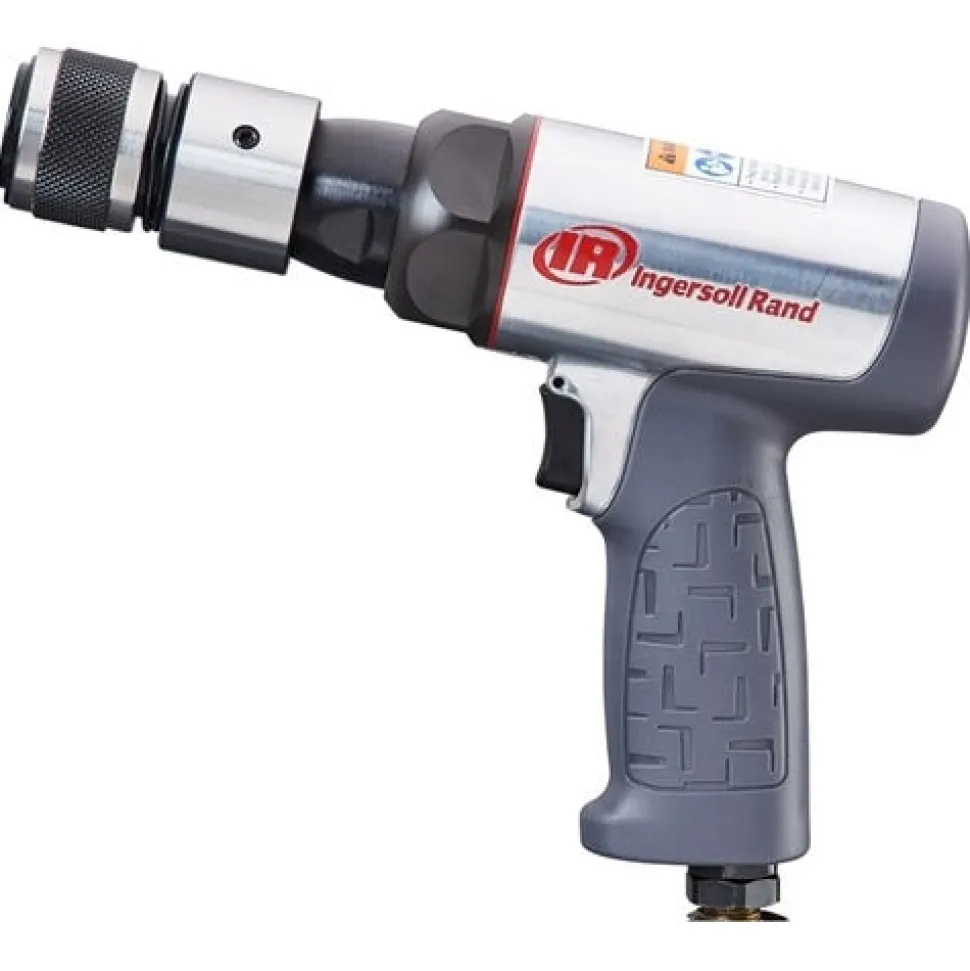

Ingersoll Rand Vibration Reduced Air Hammer 123MAX

Ingersoll Rand

Vibration Reduced Air Hammer 123MAX

The 123MAX Air Hammer is built on the hardworking and respected foundation laid by the 122MAX. The results are light; quiet and powerful air hammer that delivers incredible levels of performance and power at a cost that won’t punish your wallet.

FEATURES:

• MAX COMFORT: Anti-vibration feature reduces tool vibration by over 30% when compared to standard air hammers. Comfort anti-slip grip that reduces shock.
• MAX POWER: 15% increased in impact force over standard air hammers.
• MAX PRODUCTIVITY: Quick-change retainer allows for faster chisel changeovers; so you can get the job done. Shorter and lighter than the 122MAX.
• Optimized for the vehicle repair industry; heavy trucks; and MRO.
• 1-year warranty.

SPECIFICATIONS:

Blows per Minute	3530
Bore Diameter (in)	3/4
Stroke Length (in)	2.63″
Overall Length (in)	7.2″
Air Consumption @ Load (cfm)	24.1
Air Consumption @ Load (L/min)	682.4
Sound Pressure/Power (dBA)	95/106
Vibration m/s2 (uncertainty K)	5.9 (4.2)
Air Inlet NPTF (in)	1/4″
Min. Hose Size (in)	3/8″

“
