Iron Conduit Bender 1/2″ EMT

Klein

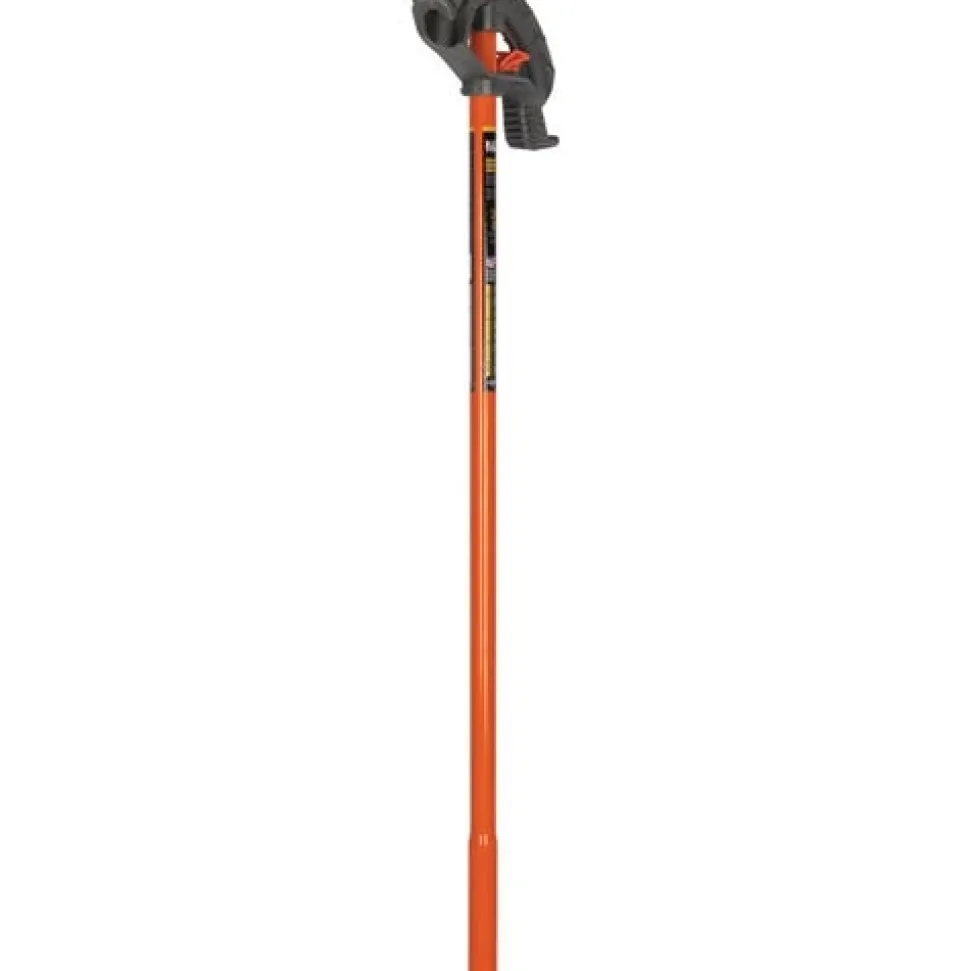

1/2 EMT Iron Conduit Bender w/ Angle Setter 51603

Klein Tools’ conduit benders with Patent Pending Angle Setter technology allow for quick; accurate repeated bends. The wide foot pedal provides excellent stability and features angled grooves for extra traction. With easily visible bold cast-in benchmark symbols; degree scales and multiplier scales help save time on the job.

FEATURES:

• 1/2-Inch assembled Iron Bender includes Klein’s unique Angle Setter technology for time-saving; repeated accurate bends; Patent pending Angle Setter for use on 10-; 22.5-; 30-; and 45-Degree bends (adjusted for conduit spring back).
• Heavy duty cast ductile iron has the durability needed on the job site.
• Bold cast markings and symbols make for fast; easy conduit alignment to make all bend types; including saddle and back-to-back bends.
• Wide foot pedal provides excellent stability; leverage; and comfort.
• Interior hook surface prevents conduit from rolling or twisting during bends.
• Includes markings for 10-Degrees; 22.5-Degrees; 30-Degrees; 45-Degrees; 60-Degrees and corresponding offset multipliers.
• Features Klein’s 1/2-Inch Angle Setter (Cat. No. 51611) that creates a hard stop for quick; accurate; and consistent bends.

SPECIFICATIONS:

Centerline Bend Radius	4″- Stub-up Height 5″; Centerline Radius 4-5/8″
Thinwall/EMT	0.5″ (1.3 cm)
Conduit Size	1/2″
Conduit Type	EMT
Marking	10°; 22°; 30°; 45°; 60°
Material	Iron
Handle Length	38″ (96.5 cm)
Overall Height	43.1″ (109.5 cm)

“
