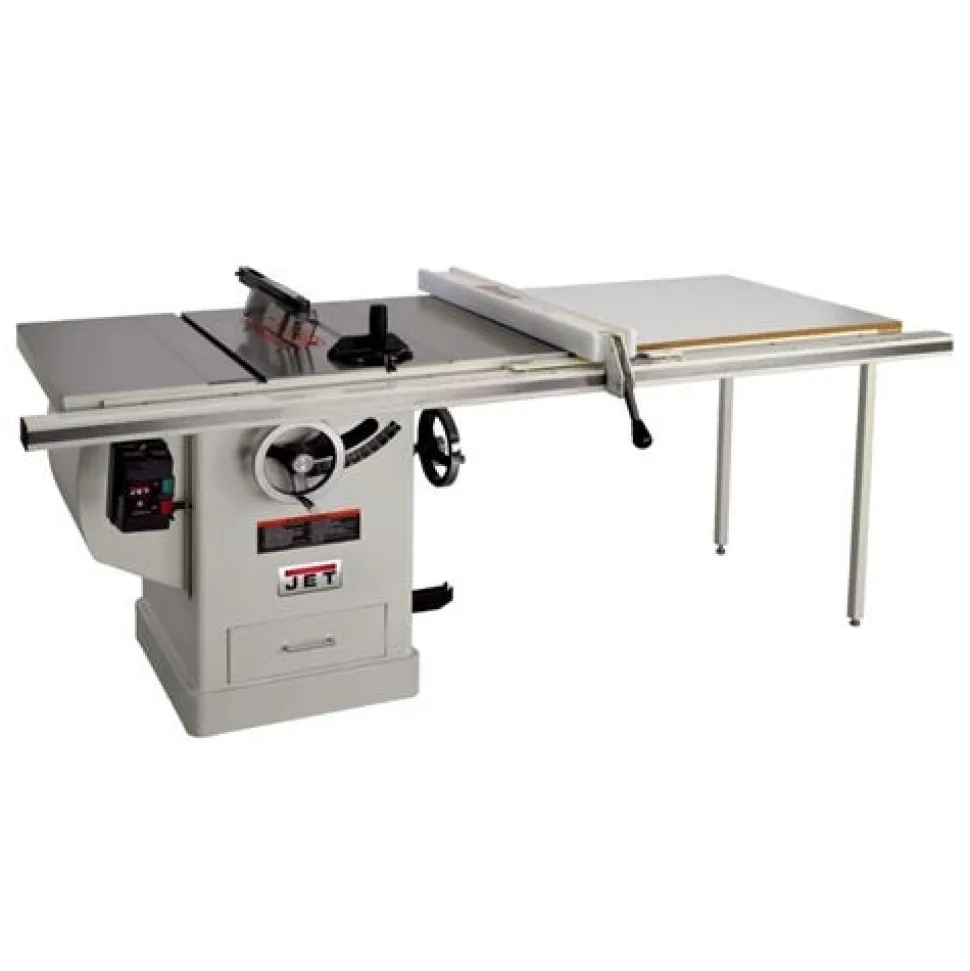

Jet 10″ Deluxe Xacta Table Saw 5HP 1Ph 230V, 50 Fence 708677PK

Jet Tools

Deluxe Xacta Table Saw 5HP; 1Ph; 30 RIP 708677PK

If you’ve ever wondered about what a table saw can really do; look no further. Introducing the new JET 10″ DELUXE XACTA SAW. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient.

FEATURES:

• EXCLUSIVE 50″ Commercial XACTA Fence II with T-square design.
• Quick release riving knife greatly reduces binding/kickback risk.
• Push button arbor lock for rapid blade change.
• Shrouded Blade increases dust collection efficiency.
• Standard 11″ left and right cast iron extension wings provides the largest table surface in its class.
• Poly-V drive belt system delivers quiet; efficient operation.
• Rail-mounted magnetic switch is easy to reach and provides overload protection.
• Enclosed cabinet with built-in sealed storage drawer.
• Hinged motor cover on cabinet gives quick access to the motor and belts.
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters.
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement.
• Left tilt; wide stance heavy-duty trunnion for stability and smooth blade positioning.
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning.
• Powder coated paint for a long-lasting; chip-resistant finish.

SPECIFICATIONS:

Style (Type)	Cabinet
Blade Diameter (In.)	10″
Arbor Diameter (In.)	5/8″
Arbor Speed (RPM)	4300
Maximum Depth of Cut (In.)	3″
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8″
Maximum Rip Left of Blade (In.)	13″
Maximum Rip Right of Blade (In.)	50″
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10″
Maximum Diameter of Dado (In.)	8″
Maximum Width of Dado (In.)	13/16″
Table Type	Cast Iron
Table Size (L x W) (In.)	29″ x 20″
Table Size with Extension (L x W) (In.)	29″ x 42″
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4″
Motor Power (HP)	5
Motor Phase (PH)	1
Motor Voltage (V.)	230
Prewired Voltage (V.)	230
Motor Amps	18
Miter Gauge Type	Deluxe

INCLUDES:

• On-board fence
• Miter gauge storage

“
