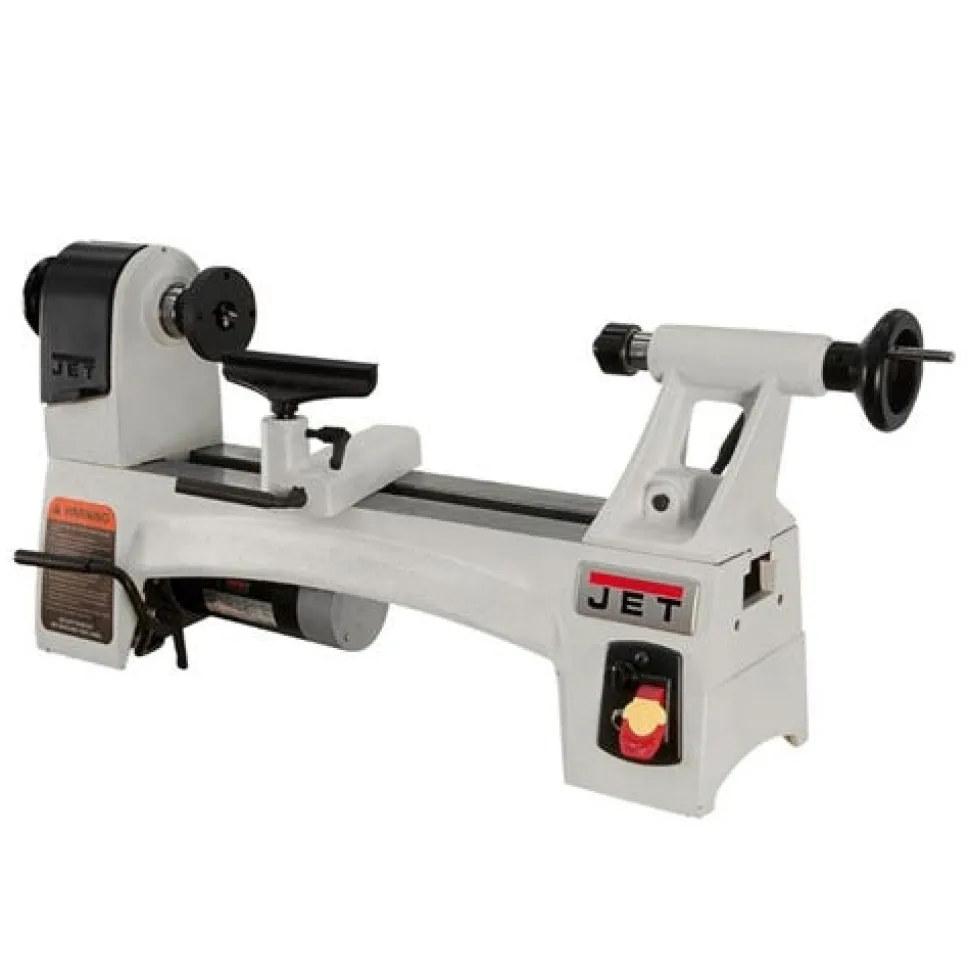

Jet 1015VS 10″ x 15″ Variable Speed Wood Lathe 719110

Jet Tools

1015VS 10 x 15″ Variable Speed Wood Lathe 719110

The new JET 1015 is an ideal choice for the novice woodturner looking for an affordable; user-friendly first lathe; as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop. This sturdy; smooth-running 15” mini-lathe has the power; precision and versatility to turn out any number of projects.

FEATURES:

• 15-1/2” between centers.
• Three speed ranges: 200-1050; 300-1750 and 600-3600.
• Integrated 24 position indexing.
• Improved tensioning system with easier access to belts.
• Wider bed ways provide increased rigidity.
• Live center in the tailstock.

SPECIFICATIONS:

Swing Over Bed (In.)	10″
Swing Over Tool Rest Base (In.)	7-5/16″
Distance Between Centers (In.)	15-1/2″
Spindle Bore (In.)	3/8″
Spindle Taper	MT2
Quill Taper	MT2
Quill Travel (In.)	2″
Spindle Thread (In./TPI)	1″ x 8 TPI
Speed Range	200-1050/300-1750/600-3600
Number of Indexing Positions	24
Bed Construction	Cast Iron
Motor Power (HP)	1/2
Motor Phase (PH)	1
Motor Voltage (V.)	115
Prewired Voltage (V.)	115
Motor Amps	4
Recommended Circuit Size (Amps.)	10
Assembled Machine Dimensions (In.)	26″L x 7″W x 14″H
Weight	90 lbs

“
