JET 13 Helical Style Bench Top Planer; JWP-13BT; 722130

Jet

13 Helical Style Bench Top Planer; JWP-13BT; 722130

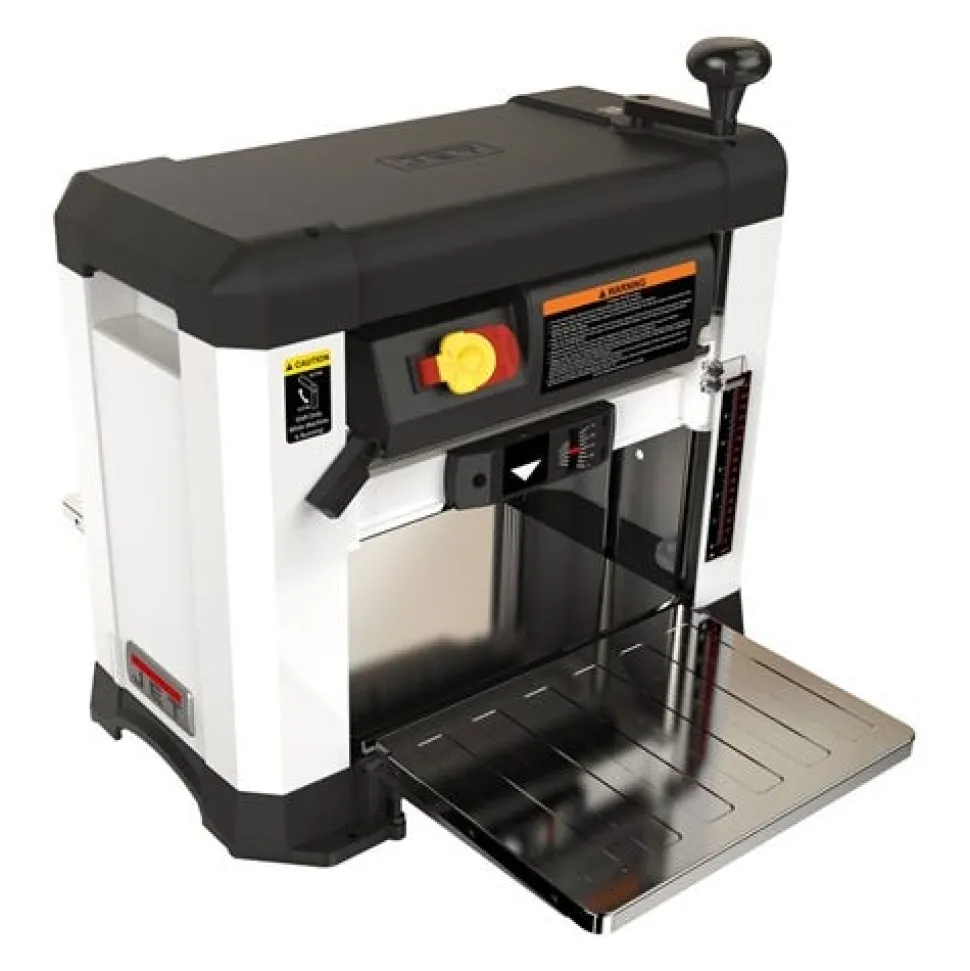

The New JET 13” Benchtop planer delivers the power and efficiency that woodworkers demand in the shop. The JET 13″ Planer produces a smooth and consistent cut surface thanks to its Helical Style Cutter head with 6 rows of 24 individual quick change inserts which can be easily rotated or replaced if damaged or worn.

FEATURES:

• Helical Style Cutter head with 6 rows of 24 individual quick change inserts; provides a clean and smooth cut with easy to change blades.
• Precision machined Cast Iron Bed and Steel cover assists in keeping boards flat and reduces snipe.
• Four post design for maximum control and support of cutter head in reference to work piece and cast table.
• Powerful 2HP 15 Amp Motor turns the cutter head at 10;000 RPM.
• Dual infeed speed control for 18fpm or 26fpm; maximizes cut efficiency on different wood material types.
• Maximum depth of cut 1/8″; 6″ depth and 13″ width capacity.
• Adjustable folding infeed/outfeed tables for leveling to bed and saves shop space when stored.

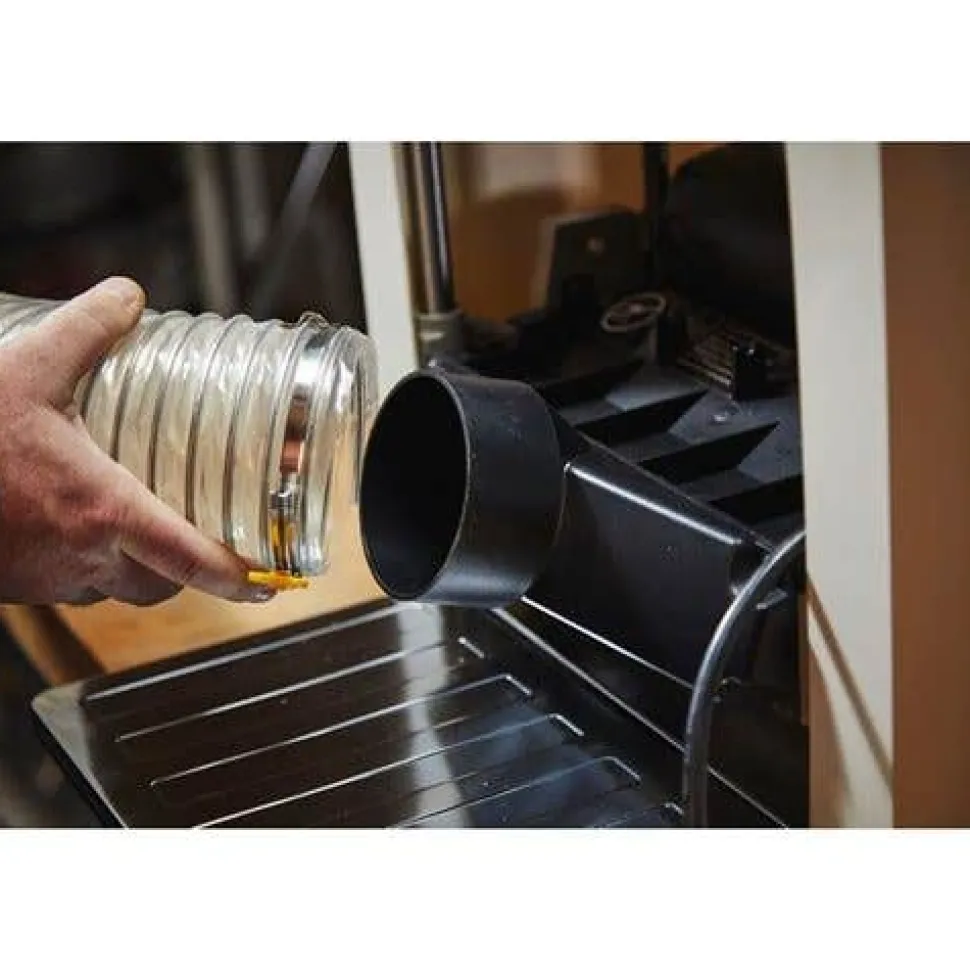

• Dust Port hooks up to dust management system and helps keep shop clean.
• Toggle switch with removable safety key.

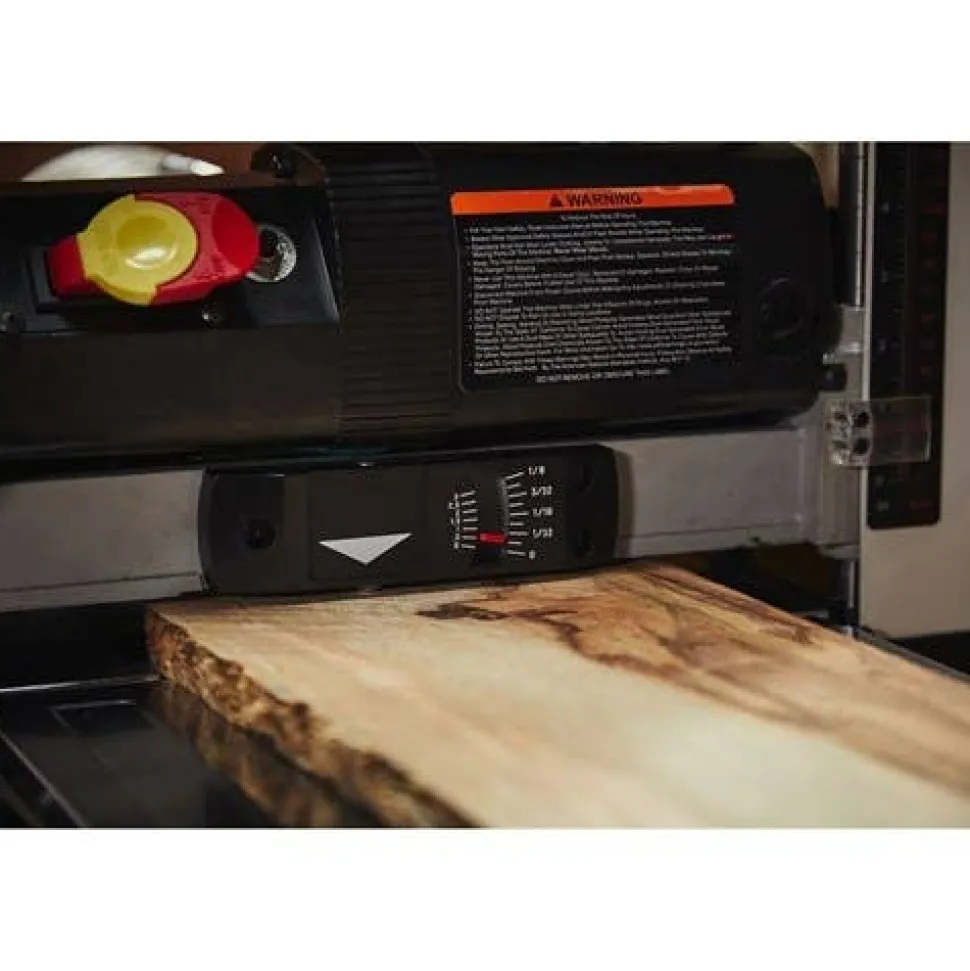

• Adjustable depth stop for consistent repetitive cuts.

SPECIFICATIONS:

Style (Type)	Benchtop
Type of Cutterhead	Helical Style
Cutterhead Speed (RPM)	10;000
Cutterhead Diameter (In.)	2″ (46mm)
Cuts Per Minute	20000
Number of Knives	24
Maximum Depth of Cut (In.)	1/8″
Maximum Full Width Depth of Cut (In.)	1/8″
Maximum Planing Width (In.)	13″
Maximum Planing Thickness (In.)	6″
Feed Rate (FPM)	18 and 26
Number of Speeds	2
Table Size (L x W) (In.)	13″ x 9.8″
Dust Port Outside Diameter (In.)	4″ (102mm)
Motor Power (HP)	2
Motor Phase (PH)	1
Motor Voltage (V.)	115
Motor Amps	15
Weight	250 lbs

“
