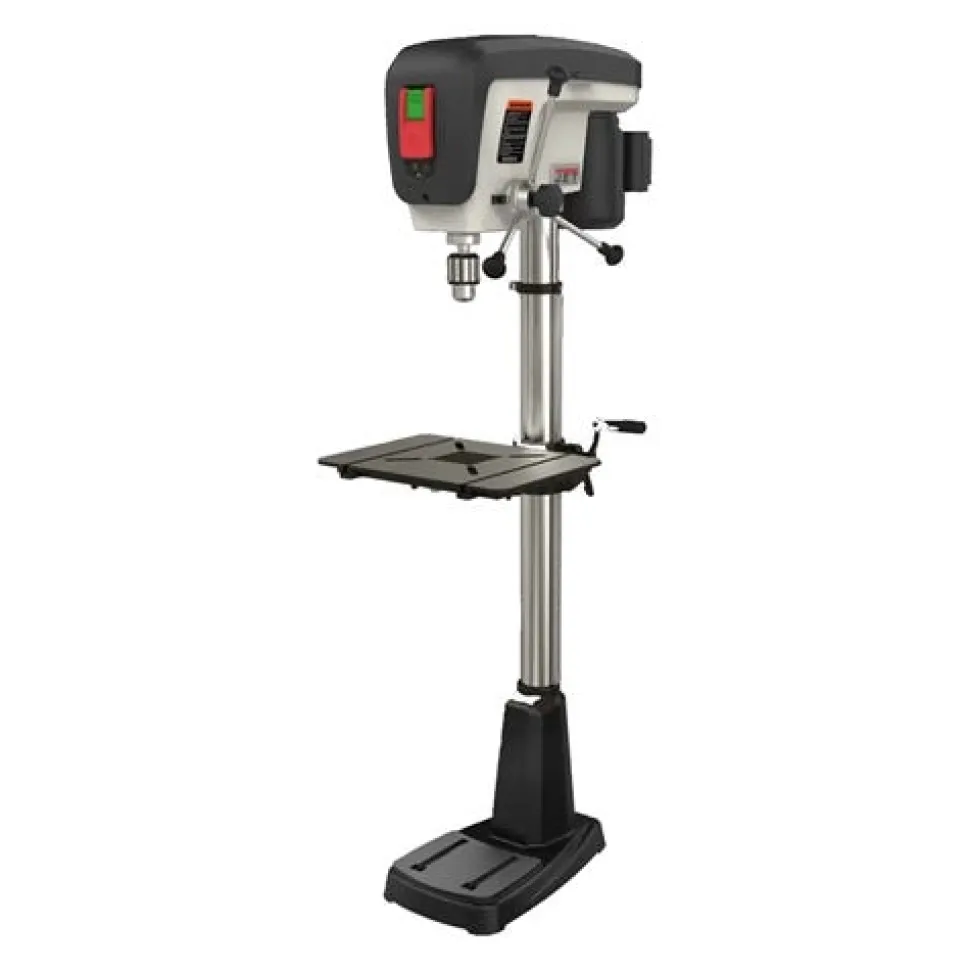

Jet 15″ Floorstanding Drill Press 716250

Jet

15 Floorstanding Drill Press 716250

From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system; this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2″ x 17″ work table. CSA Certified and owered by an efficient 3/4HP; 1Ph; 115V TEFC motor and poly-v belt drive system.

FEATURES:

• Spindle travels a full 3-1/8” with one revolution of the handle.
• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
• One-handed belt tensioning allows for rapid speed changes.
• Power switch features a safety key and large; paddle-style off button.
• Integrated depth stop makes repetitive drilling quick and easy.
• Xacta-X laser system easily identifies the drill center.
• Long-lasting; built-in LED work light reduces shadows.
• Table edge lip designed to make clamping easy.
• Replaceable MDF table insert.
• Large cast iron base provides stability.

SPECIFICATIONS:

Swing (In.)	15
Spindle Travel (In.)	3-1/8
Number of Spindle Speeds	16
Spindle Taper	MT2/JT3
Spindle Speed Range (RPM)	210 – 3500
Chuck Size (In.)	5/8
Motor Power (HP)	3/4
Motor Voltage (V)	115
Motor Amps	9
Weight (Lbs.)	172
Table Tilt (Deg.)	45 Left and Right
Table Size (L x W) (In.)	12-1/2 x 17
Assembled Machine Dimensions (L x W x H) (In.)	27 x 17 x 63-1/4

“
