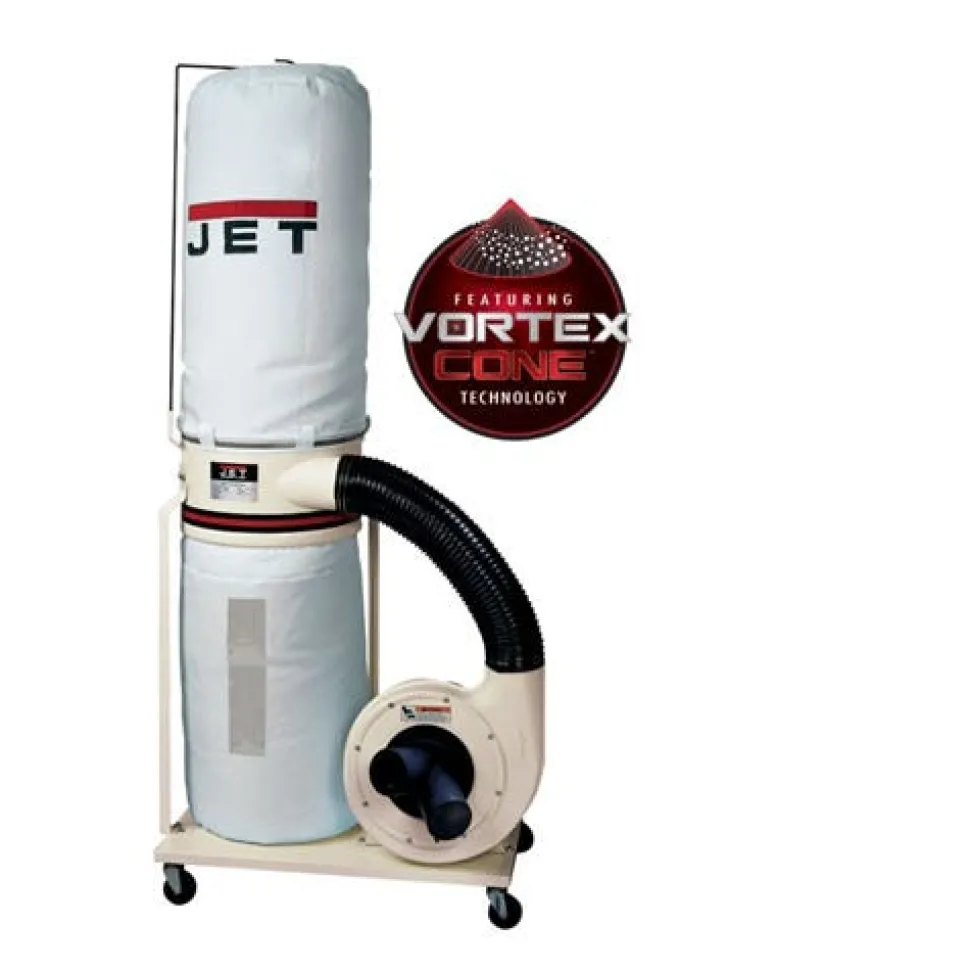

Jet DC-1100VX-5M Dust Collector 708658K

• Jet Tools
• Industrial-quality construction effectively handles collection of wood chips and sawdust
• Equipped with vortex cone technology to prevent filter clogging
• Quick install collection bag makes emptying and re-attaching a snap
• Single-stage design for economical and quiet operation
• Includes four casters for maneuverability and total portability
• High air velocity (CFM) design stands up to any competitive specifications
• Permanently lubricated; totally enclosed; fan cooled motors are rated for continuous duty
• Optional Remote Control is Radio Frequency; no need for line of sight to turn machine off
• Specifications
• Stock Number:   708658K
• Model Number:    DC-1100VX-5M
• Style (Type)    Bag
• Air Flow @ 4 (CFM)    1;100
• Number of Air Inlets    (1) at 6; (2) at 4
• Efficiency (Micron)    5
• Static Pressure (Wc.)    10-1/2
• Sound Rating (Db.)    70 – 80
• Bag Diameter (In.)    20
• Collection Bag Capacity (Cu. Ft.)    5-3/10
• Collection Bag Length (In.)    30
• Filter Bag/Canister Length (In.)    32
• Impeller Diameter (In.)    11
• Impeller Material    Steel
• Velocity @ 4″ (CFM)    12;571
• 1-Hose Connection Diameter (In.)    6
• 2-Hoses Connection Diameter (In.)    4
• Motor Power (HP)    1-1/2
• Motor Phase    1
• Motor Voltage (V.)    115; 230
• Prewired Voltage (V.)    115
• Motor Current (Amps.)    11; 5-1/2

“
