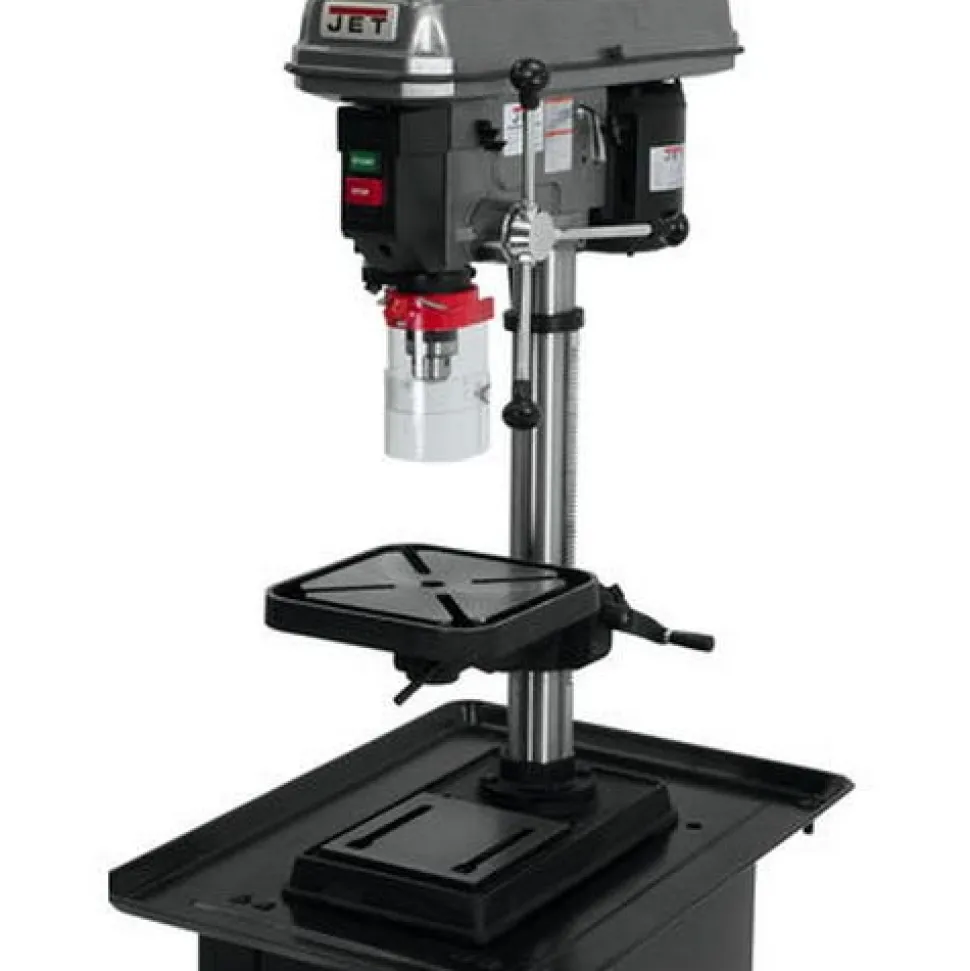

Jet J-2530 15″ Metalworking Drill Press 354401

• Jet Tools
• Cast Iron Head
• Large quill allows greater accuracy
• Head casting features a permanently lubricated ball bearing spindle assembly using four heavy duty ball bearings mounted in an enclosed quill for extended life
• Table tilts 45
• Large ground steel column diameter for maximum head and table support
• 3-1/8 stroke for deep hole applications
• Accurate depth stop for precise hole depths
• Includes 5/8″ chuck and arbor
• Specifications
• Stock Number:    354401
• Model Number:    J-2530
• Drilling Capacity Cast Iron:    5/8″
• Drilling Capacity Mild Steel:    1/2″
• Column Diameter:    2-7/8″
• Distance Column to Spindle:    7-1/2″
• Range of Spindle Speeds:    200-30 RPM
• Spindle Travel:    3-1/8″
• Spindle Distance to Base:    24″
• Spindle Distance to Table:    15-1/2″
• Table Size:    11-1/2 x 11-1/2″
• Table Travel:    15-1/2″
• Work Table Weight Capacity: 44 lbs.
• Spindle Taper:    MT-2
• Base Dimensions:  18 x 10-1/2″
• Base Work Table:    8 x 8″
• Motor:    3/4 HP; 1 Ph; 115V
• Overall Dimensions:    31 x 13 x 39-1/2″
• Net Weight:    157 lbs.

“
