Jet J-7060 12″ x 20″ Semi-Automatic Horizontal Bandsaw 230 3Ph 414476

• Jet
• J-7060; 12 x 20″ Semi-Automatic Horizontal Bandsaw 414476

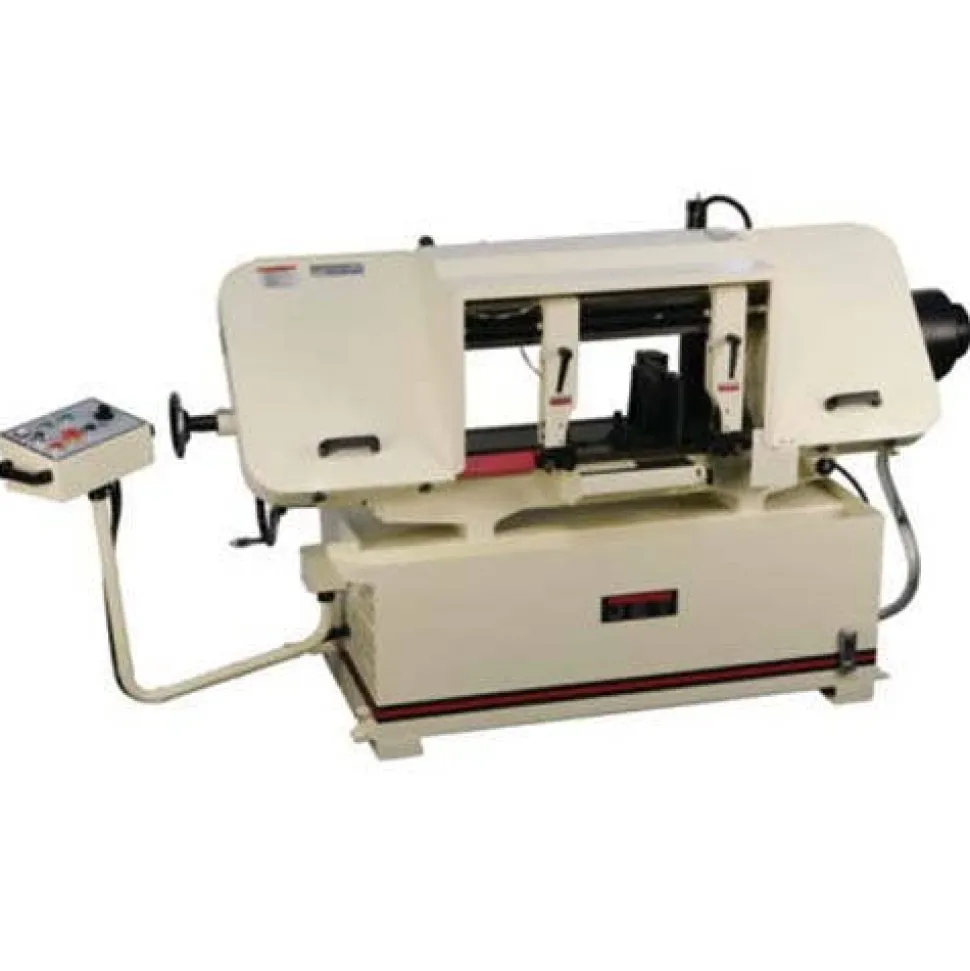

• This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts; first time; every time.
• Swivel control panel houses major saw controls
• Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
• Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
• Saw head raises hydraulically after each cut
• Variable speed drive system allows the operator to easily fine tune the blade speed
• Heavy-Duty transmission utilizes hardened and ground gears operating in an oil bath
• Cast Iron blade wheels
• Patented 3-Jaw rapid action vise for faster set up
• Coolant system
• Adjustable material stop
• 1″ Bi-Metal blade
• Cutting Capacity (W x D) (In.) 12 x 20
• Round at 90 Degrees (In.) 12
• Round at 45 Degrees (In.) 12
• Rectangle at 90 Degrees (In.) 12 x 20
• Rectangle at 45 Degrees (In.) 12 x 12
• Vise Swivels (Deg.) 45
• Blade Speeds (SFPM) 82 – 262
• Blade Wheel Diameter (In.) 17
• Blade Length (In.) 156
• Blade Size (In.) 1 x .035 x 156
• Bed Height (In.) 26-1/4
• Motor (HP) 3 HP; 230/460V; 3Ph
• Weight (Lbs.) 1;456
• Overall Dimensions (L x W x H) (In.) 87 x 37-1/2 x 53

“
