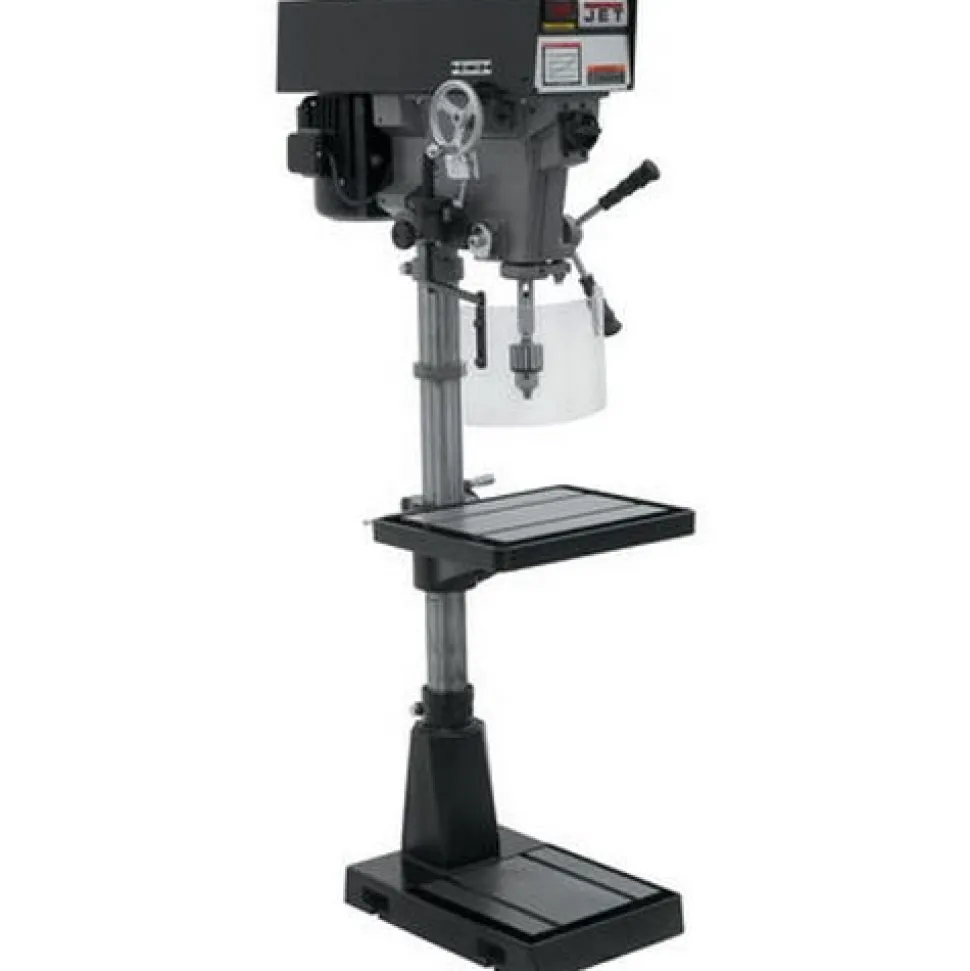

JET J-A5818 15″ Variable Speed Floor Model Drill Press 230/460V 354551

• JET
• J-A5818 15″ Variable Speed Floor Model Drill Press 230/460V 354551
• These JET Drill Presses use a variable-speed motor with the stepped-pulley system; and come equipped with a continuously variable transmission. This enables use at a wide range of speeds; as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor’s fixed pulley and the output shaft’s variable pulley; changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.
• Full bearing support on quill for maximum spindle stiffness
• Handwheel speed adjustment of 400 to 5;000 RPM
• Large 2-1/4″ quill for greater accuracy
• 3″ column diameter for maximum head support
• 6″ stroke for deep hole application
• Accurate depth stop for precice hole depths
• 1/2″ drill chuck and arbor included
• Safety collar
• Style (Type): Variable
• Drills to Center of Circle (in): 15
• Drilling Capacity Cast Iron (In.): 5/8
• Drilling Capacity Mild Steel (In.): 1/2
• Distance Column to Spindle (In.): 7-1/2
• Number of Spindle Speeds: Variable
• Range of Spindle Speeds (RPM): 400 – 5;000
• Column Diameter (In.): 3
• Spindle Taper (In. x TPI): MT-2
• Spindle Travel (In.): 6
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 25-3/4
• Table Size (L x W) (In.): 15 x 18
• Table Travel (In.): 16-3/4
• T-Slots Number and Size (In.): 2 and 1/2
• T-Slot Centers (In.): 5-5/16
• Work Table Weight Capacity (Lbs.): 90
• Base Dimensions (In.): 20-7/16 x 14-3/16
• Base Work Table (In.): 12-1/8 x 11-13/16
• Base Slots Number & Size (In.): 2 and 1/2
• Motor (HP): 1 HP; 230/460V; 3Ph
• Overall Dimensions (L x W x H) (In.): 30 x 20 x 71
• Weight (Lbs.): 426

“
