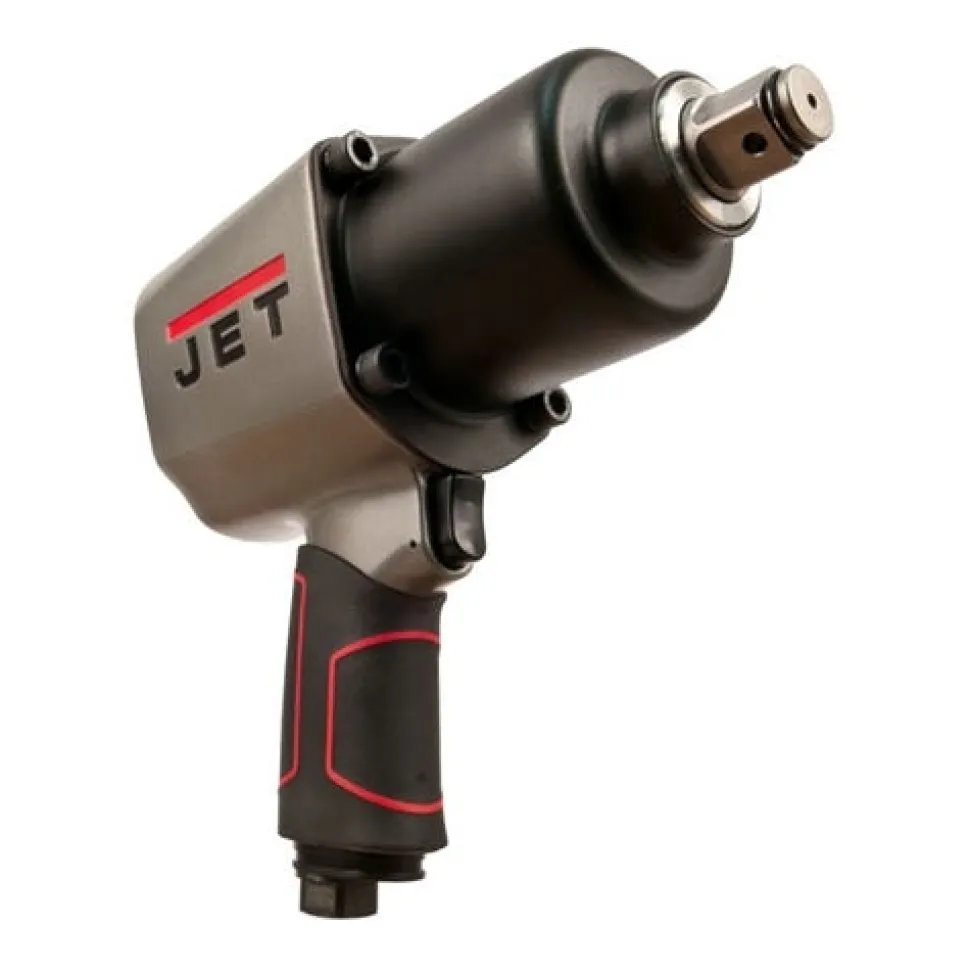

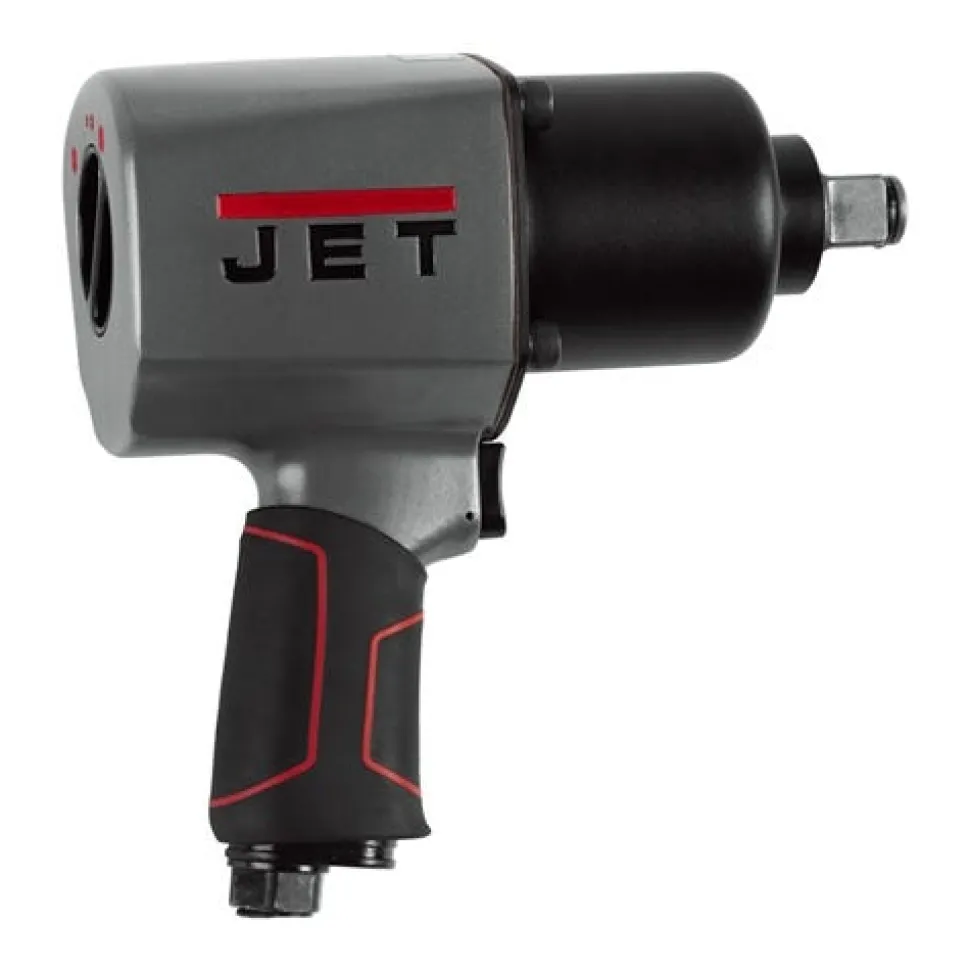

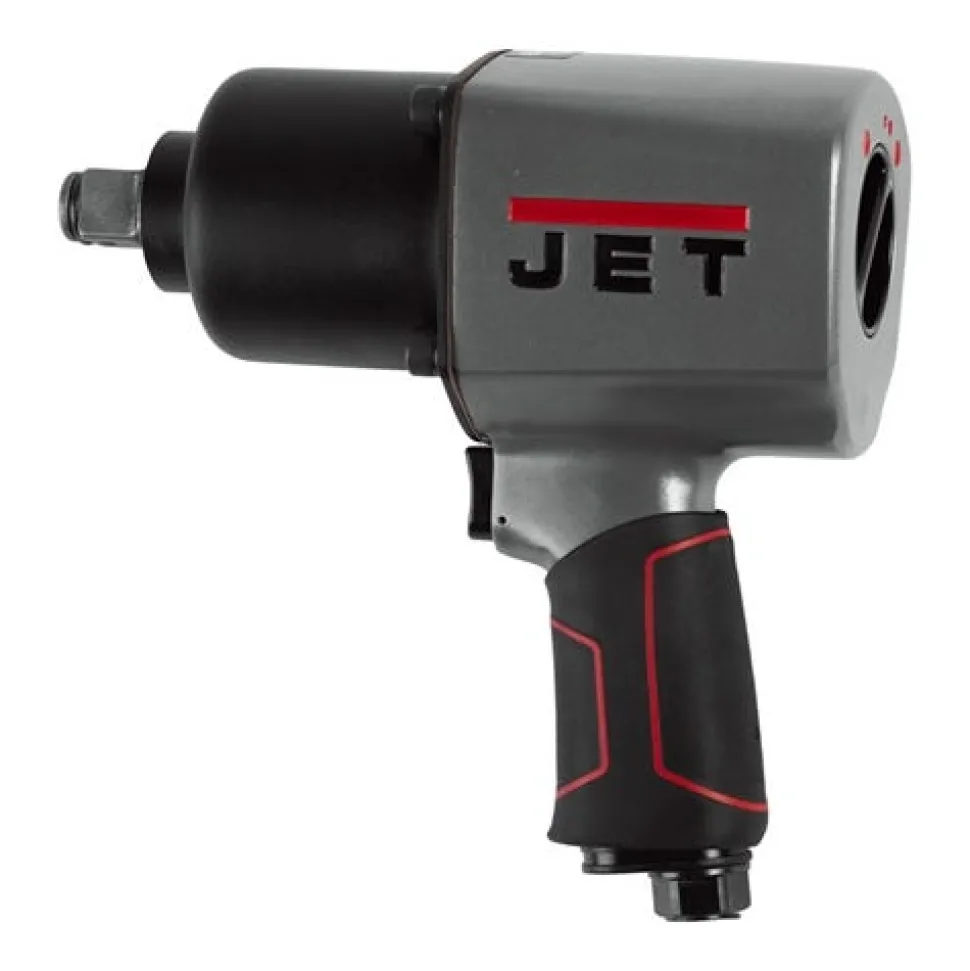

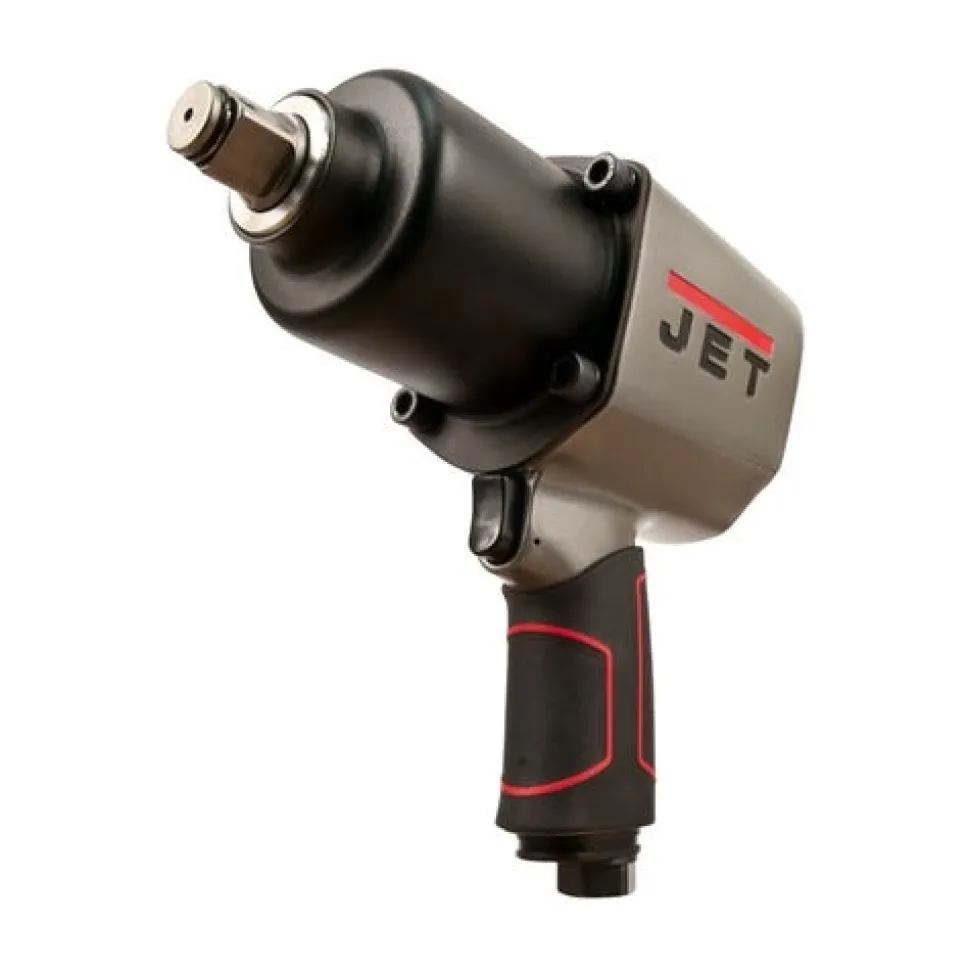

Jet JAT-105 3/4 1500 ft-lbs. R8 Air Impact Wrench 505105

Jet Tools

JAT-105 3/4 1500 ft-lbs. R8 Air Impact Wrench 505105

The JET JAT-105 delivers an amazing 1;500 ft.lbs. of torque and is unmatched in it’s class. At only 11 lbs. it’s the lightest in it’s class to help you get your job done without carrying around all that weight. This tool is great for Plant maintenance; Truck repairs; Heavy Equipment repair.

FEATURES:

• Twin Hammer impact mechanism delivers balanced power.
• Ergonomically designed grip absorbs vibration and reduces hand fatigue.
• Lightweight aluminum construction reduces weight.
• Easily adjustable; 3-position forward power setting.
• Performace @ 90 PSI. Air Inlet NPT 3/8″. Min Hose Size 1/2″.

SPECIFICATIONS:

Square Drive (In.)	3/4
Working Torque (Ft.) (Lbs.)	200-1;300
Max Torque (Ft.) (Lbs.)	1;500
Free Speed (RPM)	5;500
Blows Per Minute (BPM)	1;000
Impact Mechanism / Clutch Type	Twin Hammer
Bolt Capacity (In.)	1
Anvil Retainer Type	Ring/Hole
Air Inlet (NPT/In.)	3/8
Air Hose (ID/In.)	1/2
Air Pressure (PSI)	90
Air Consumption (CFM)	9.5
Sound Pressure (db) (A)	79
Sound Power (db) (A)	90
Vibration Value (m/s²)	12.9
Overall Length (In.)	8.75
Weight (Lbs.)	10.4

“
