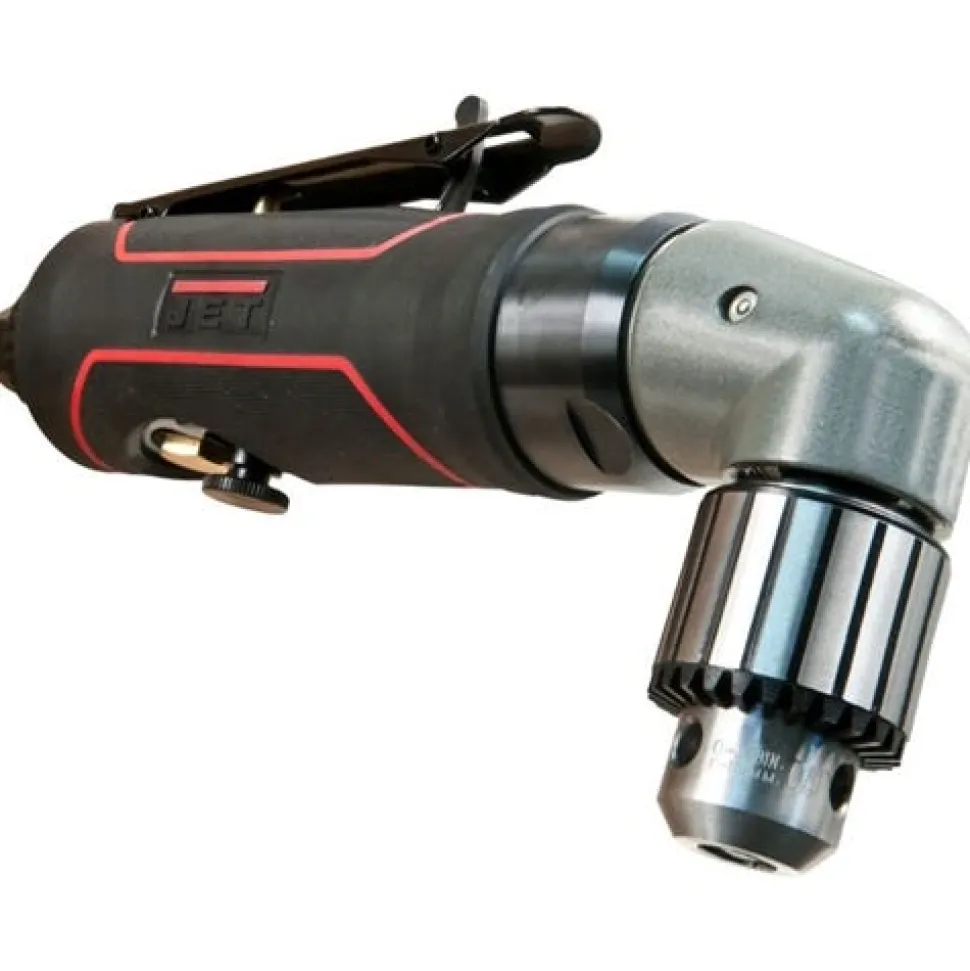

Jet JAT-630 R12 3/8″ Reversible Angle Drill 1200 RPM 505630

Jet Tools

JAT-630 R12 3/8 Reversible Angle Drill 1200 RPM 505630

The JAT-620 is 1/2″ composite housing angled drill build with 1;200 rpm of speed for the Transportation and MRO markets with reversible design and industrial keyed chuck.

FEATURES:

• Industrial Jacobs’s keyed chuck efficiently transfers torque when needed.
• Low profile angled head for work in tight spots.
• Ergonomically designed grip absorbs vibration and reduces hand fatigue.
• Bottom-mounted; forward/reverse switch locks in place.
• Variable-speed trigger for precise speed control.
• Rugged; ball-bearing design for durability.
• Head rotates 360° for increased versaility in awkward applications.
• Performace @ 90 PSI. Air Inlet NPT 3/8″. Min Hose Size 3/8″.

SPECIFICATIONS:

Spindle Thread (In./TPI)	3/8″-24
Chuck Size (In.)	3/8
Free Speed (RPM)	1;200
Horse Power (HP)	0.5
Air Inlet (NPT/In.)	1/4
Air Hose (ID/In.)	3/8
Air Pressure (PSI)	90
Air Consumption (CFM)	4
Sound Pressure (db) (A)	90
Sound Power (db) (A)	97
Vibration Value (m/s²)	0.5
Overall Length (In.)	8

“
