Jet JDP-15B 15″ Benchtop Drill Press Woodworking 716200

Jet Tools

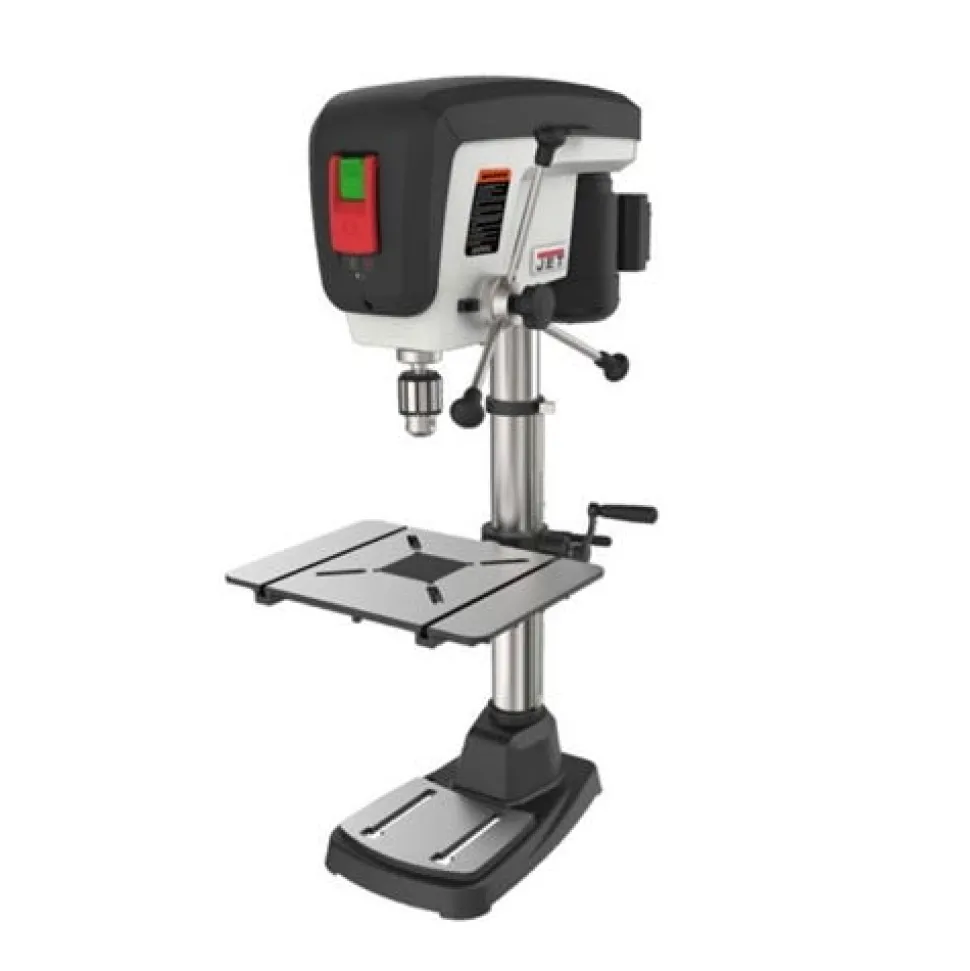

JDP-15B 15 Benchtop Drill Press 716200

This JET 15″ Benchtop Drill Press is a true woodworker’s drill press with a small footprint. With 16 speeds you can choose the perfect speed for your woodworking projects.

FEATURES:

• Spindle travels a full 3-1/8” with one revolution of the handle.
• Large 12-1/2″ x 17″ precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project.
• One-handed belt tensioning allows for rapid speed changes.
• Power switch features a safety key and large; paddle-style off button.
• Integrated depth stop makes repetitive drilling quick and easy.
• Xacta-X laser system easily identifies the drill center.
• Long-lasting; built-in LED work light reduces shadows.
• Table edge lip designed to make clamping easy.
• Replaceable MDF table insert.
• Large cast iron base provides stability.
• Powered by an efficient 3/4HP; 1Ph; 115V TEFC motor and poly-v belt drive system.

SPECIFICATIONS:

Style (Type)	Benchtop
Swing (In.)	15″
Spindle Travel (In.)	3-1/8″
Number of Spindle Speeds	16
Spindle Taper	MT2/JT3
Spindle Speed Range (RPM)	210 – 3500
Spindle Distance to Table (Max.) (In.)	18-5/16″
Spindle Distance to Base (In.)	26-3/4″
Table Size (L x W) (In.)	12-1/2″ x 17″
Table Tilt (Deg.)	45 Left and Right
Chuck Size (In.)	5/8″
Column Diameter (In.)	2-3/4″
Base Size (In.)	18″ x 11-3/8″
Motor Power (HP)	3/4
Motor Phase (PH)	1
Motor Voltage (V)	115
Prewired Voltage (V)	115 only
Motor Amps	9
Assembled Machine Dimensions (L x W x H) (In.)	27″ x 17″ x 42-1/2″
Weight	154 lbs

“
