Jet JDPE-20EVSC-PDF 1-1/4″ Drilling Capacity Electronic Variable Speed Drill w/ Clutch Speed Change system & Power Downfeed 354251

Jet

JDPE-20EVSC-PDF 1-1/4 Drilling Capacity Electronic Variable Speed Drill w/ Clutch Speed Change system & Power Downfeed 354251

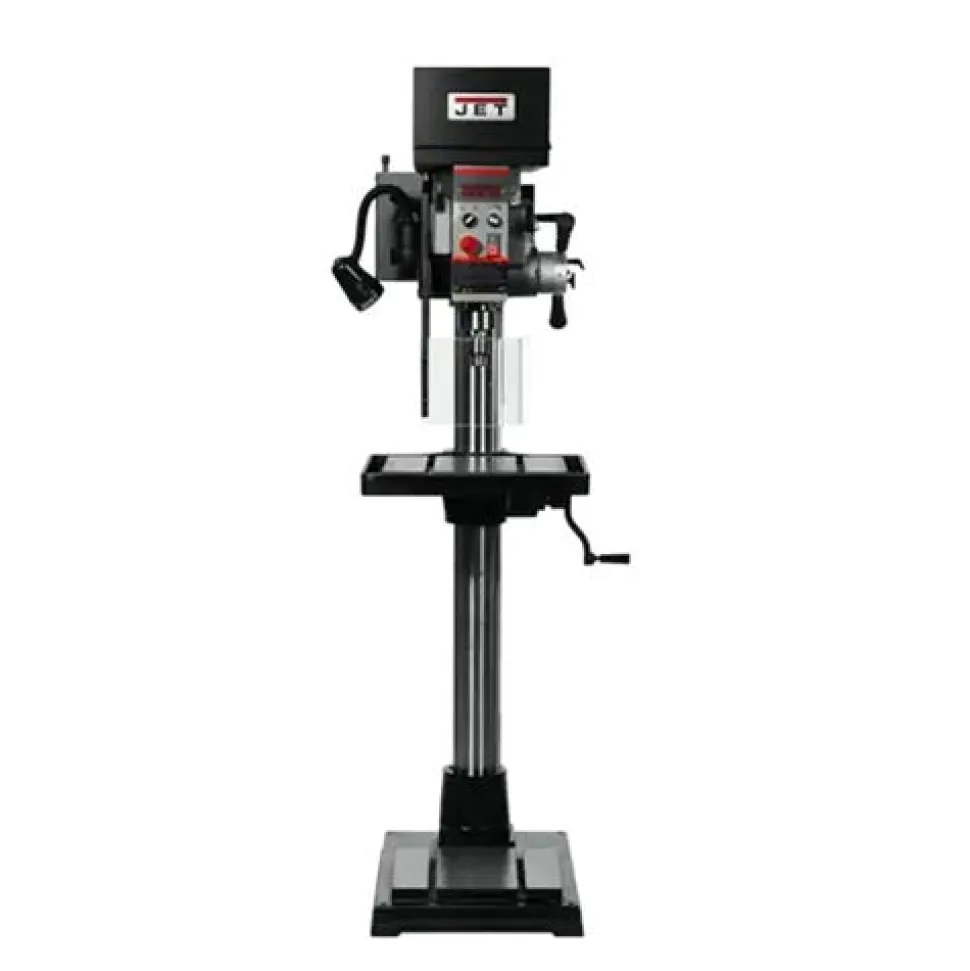

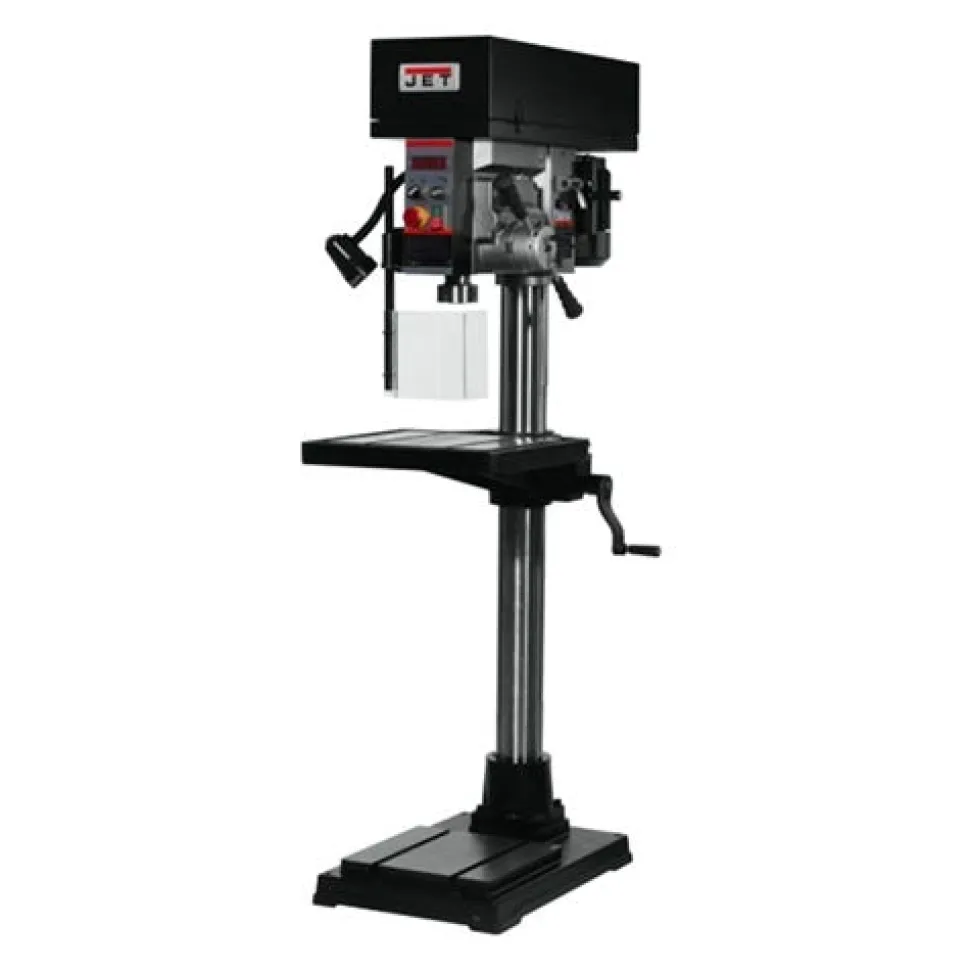

The 20” JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.

FEATURES:

• Heavy casted column prevents failures prolonging the life of the machine and casted head creates more accuracy and rigidity.
• Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support.

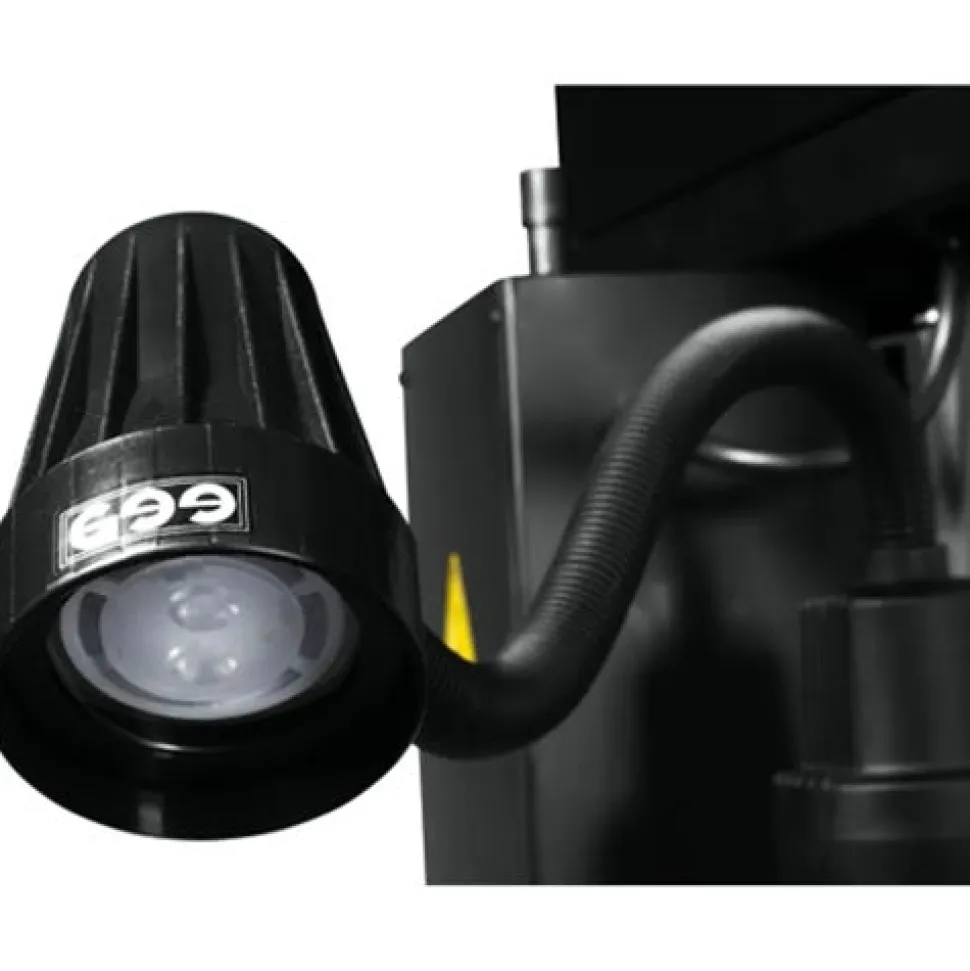

• LED machine lamp delivers extra light for more precise drilling.

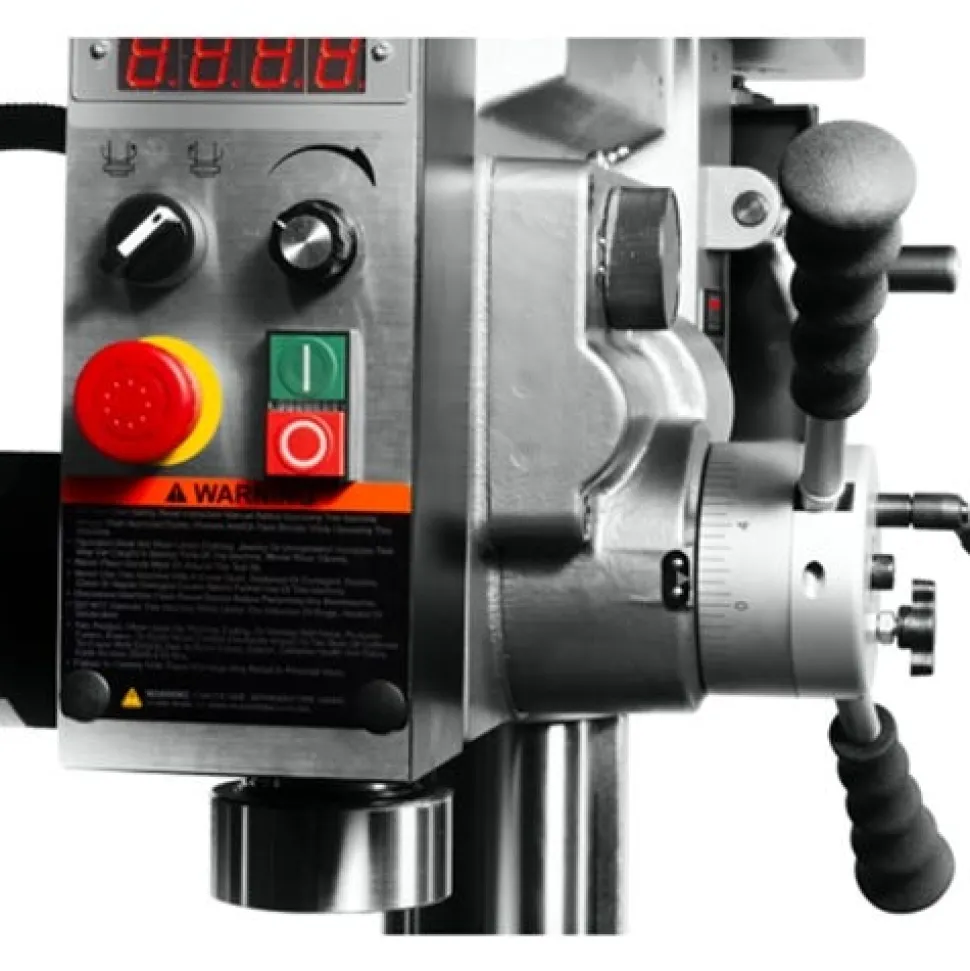

• Spindle guard protects user from flying debris and emergency stop allows for immediate shut off.
• 3-Speed power downfeed.
• High torque at all speeds (various spindle speeds range from 50-2000 RPM’s) both forward and reverse.
• Large hand grips designed with the user in mind.
• Forward and reverse switch for instant tapping mode.

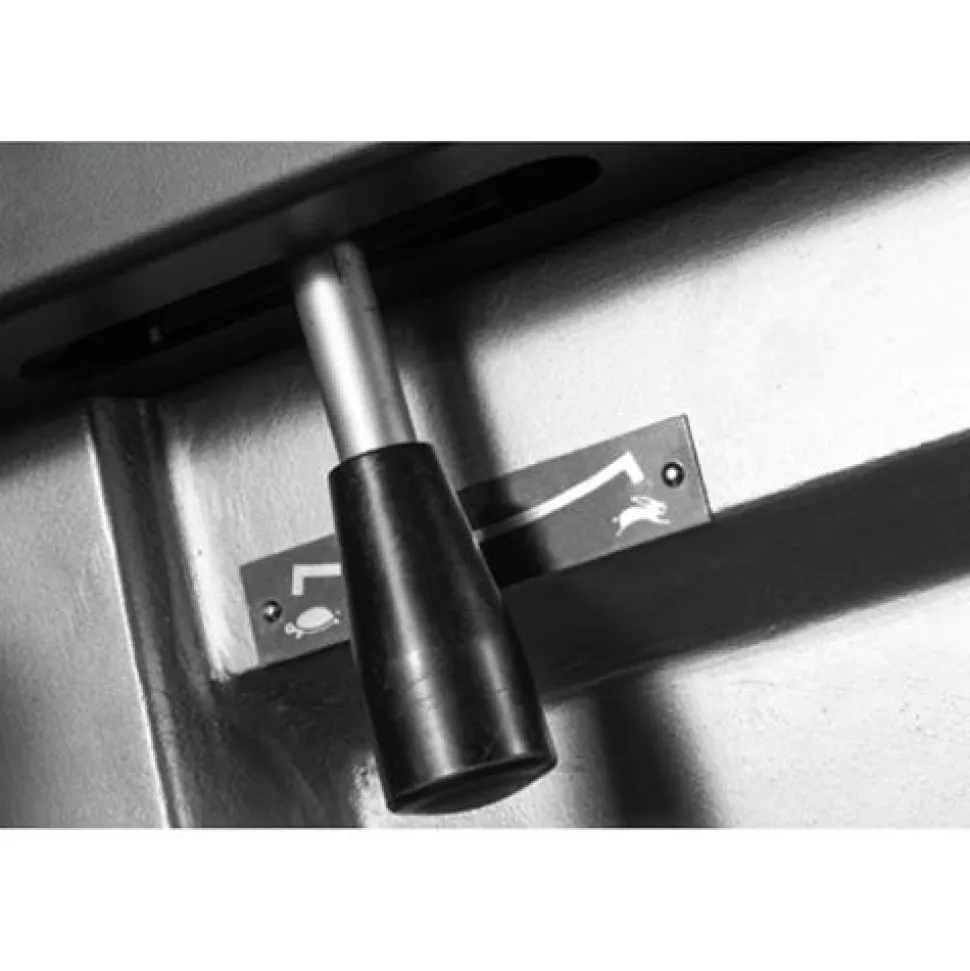

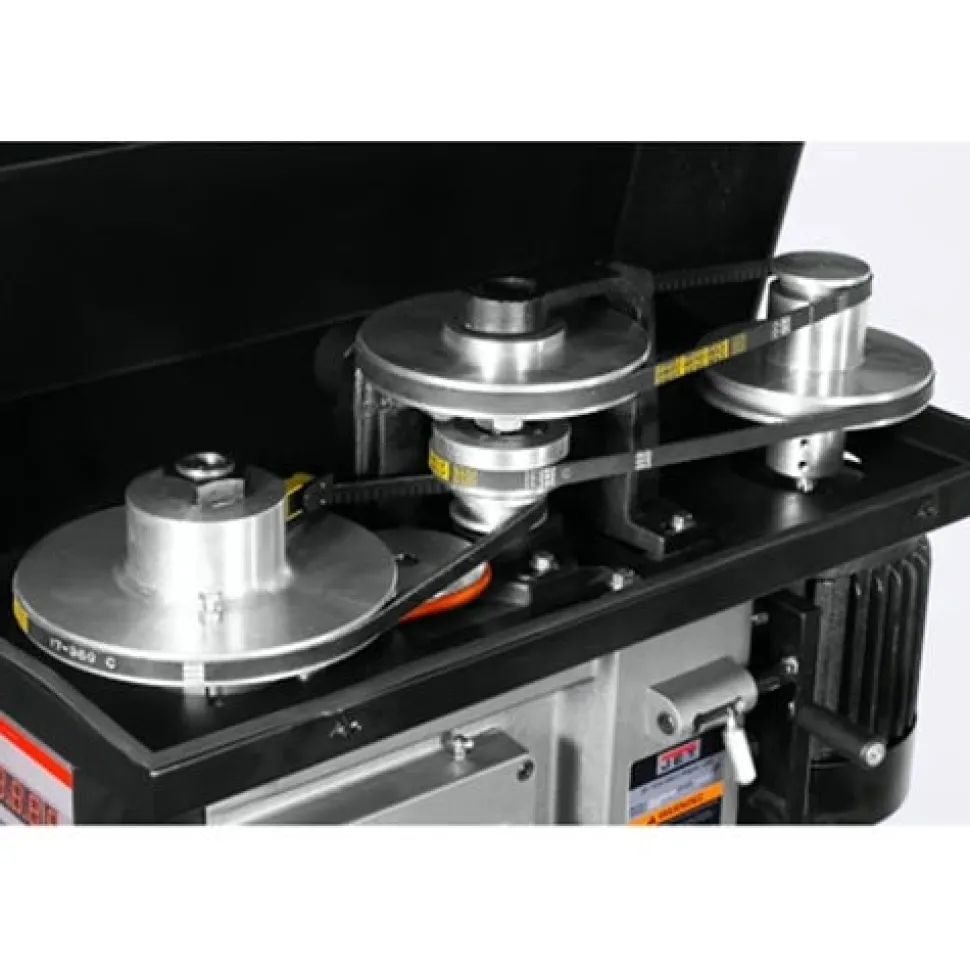

• Speed changes using a clutch system.
• Large torque inverter.
• CSA/US Certified.

SPECIFICATIONS:

Drilling Capacity (In.)	1-1/4 (Cast Iron); 1-1/8 (Mild Steel)
Tapping Capacity Mild Steel (In.)	5/8
Quill Down Feed Rate (Number & RPM’s)	No.3/ 0.005”/0.007”/0.010”
Distance Column to Spindle (In.)	26-1/2
Spindle Taper (In. x TPI)	MT-3
Quill Diameter (In.)	2.16
Range of Spindle Speeds (RPM)	Low: 50 – 390; High 280 – 2000
Table Size (L x W) (In.)	16-1/2 x 18-1/2
Inverter Type / Power Source	2HP/115V/1PH
T-Slots Number and Size (In.)	2; 1/2 bolts
Motor (HP)	1.5HP; 230V; 3PH
Overall Dimensions (L x W x H) (In.)	32-3/5 x 22-2/3 x 70-25/64

“
