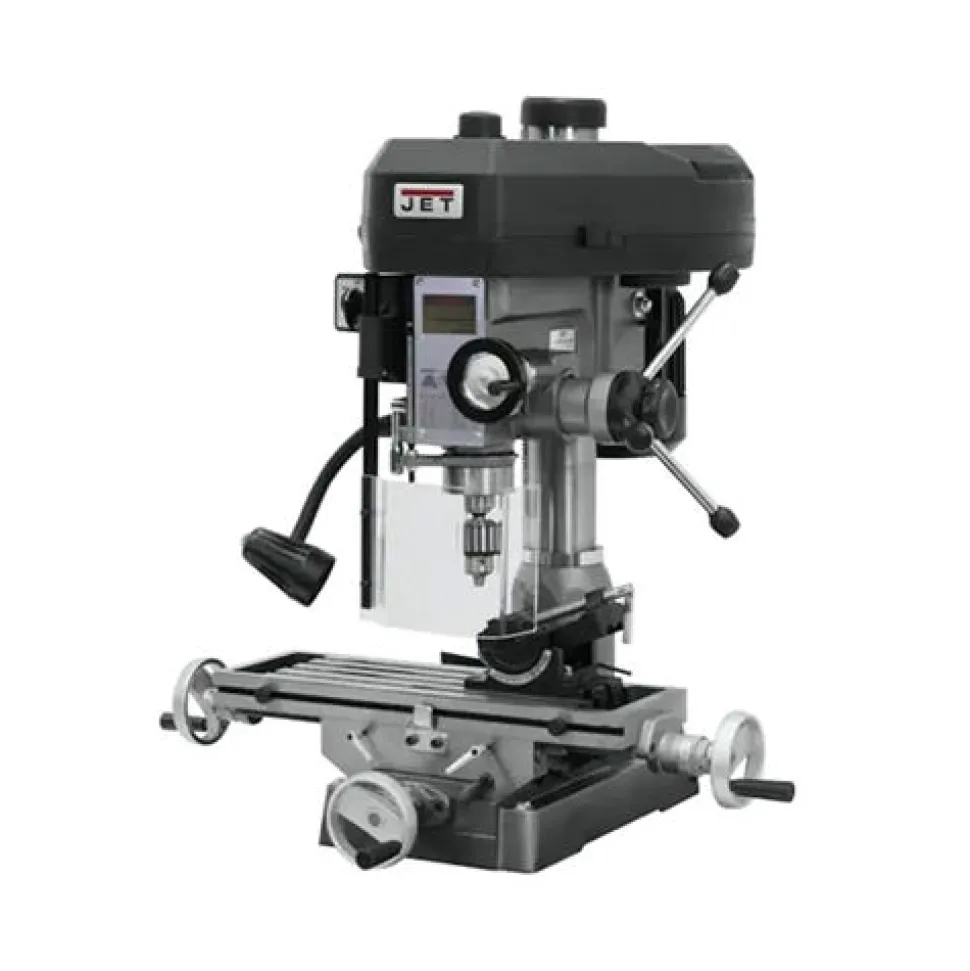

JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph 350017
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine’s table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction; the JMD Milling Drilling Machines possess the advantages of space-saving versatility; affordability and light machining capability.
FEATURES:
- One-piece cast iron column for added support.

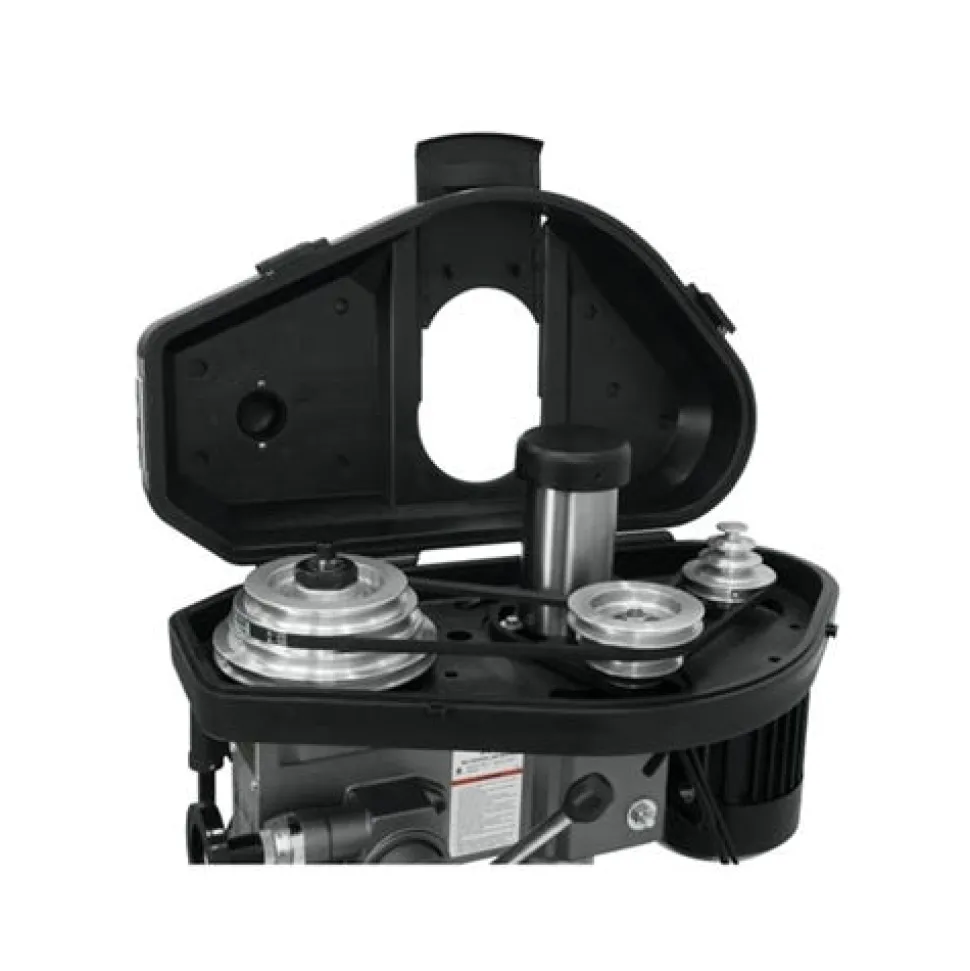

- Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds.
- Drill Press angle vise.
- UL Listed motor (8201VS).

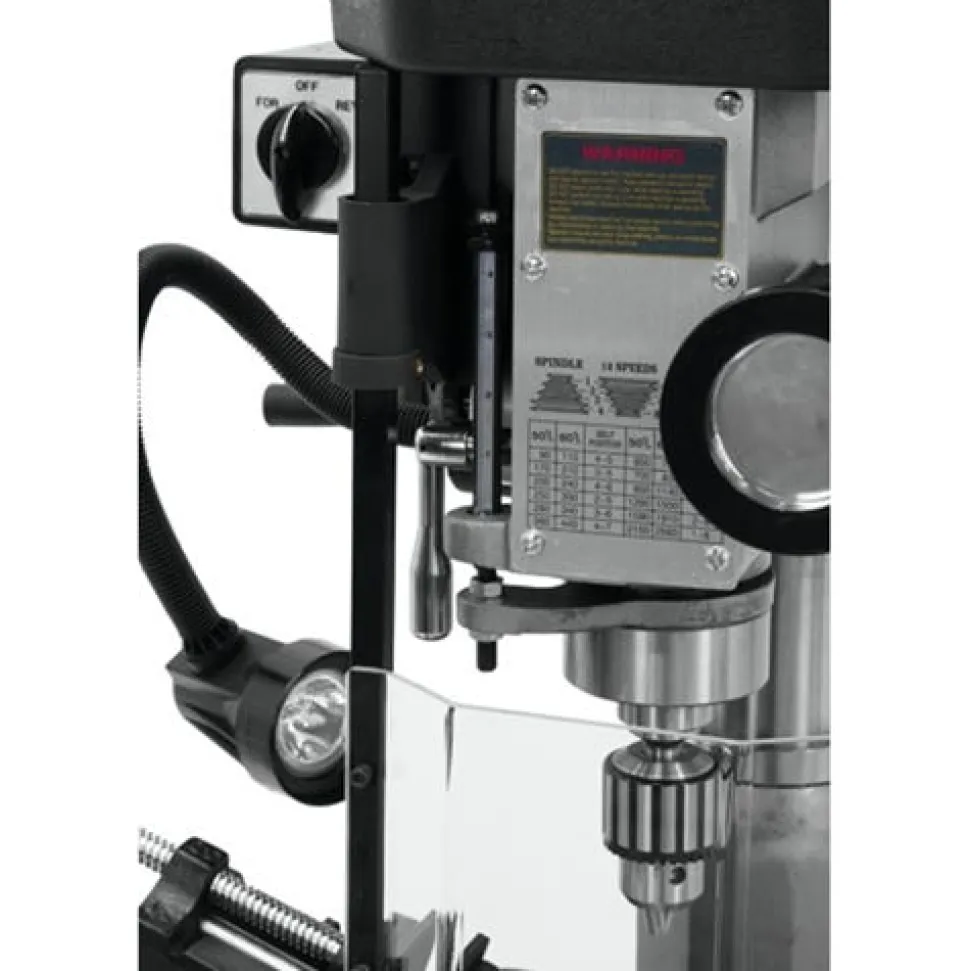

- Easy to read external depth gauge.
- 360° head swivel.
- ½” drill chuck; chuck arbor.
- Draw bar and Drill Chuck Guard.
- Adjustable Carbide facemill.

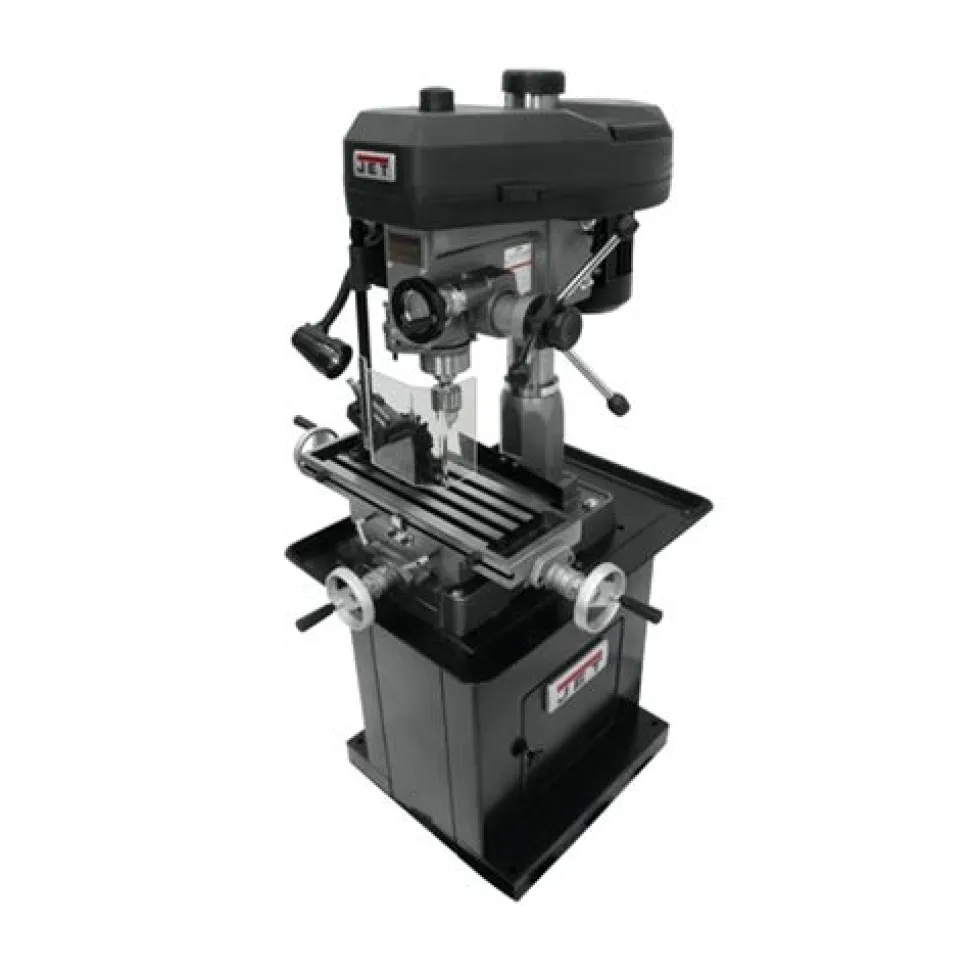

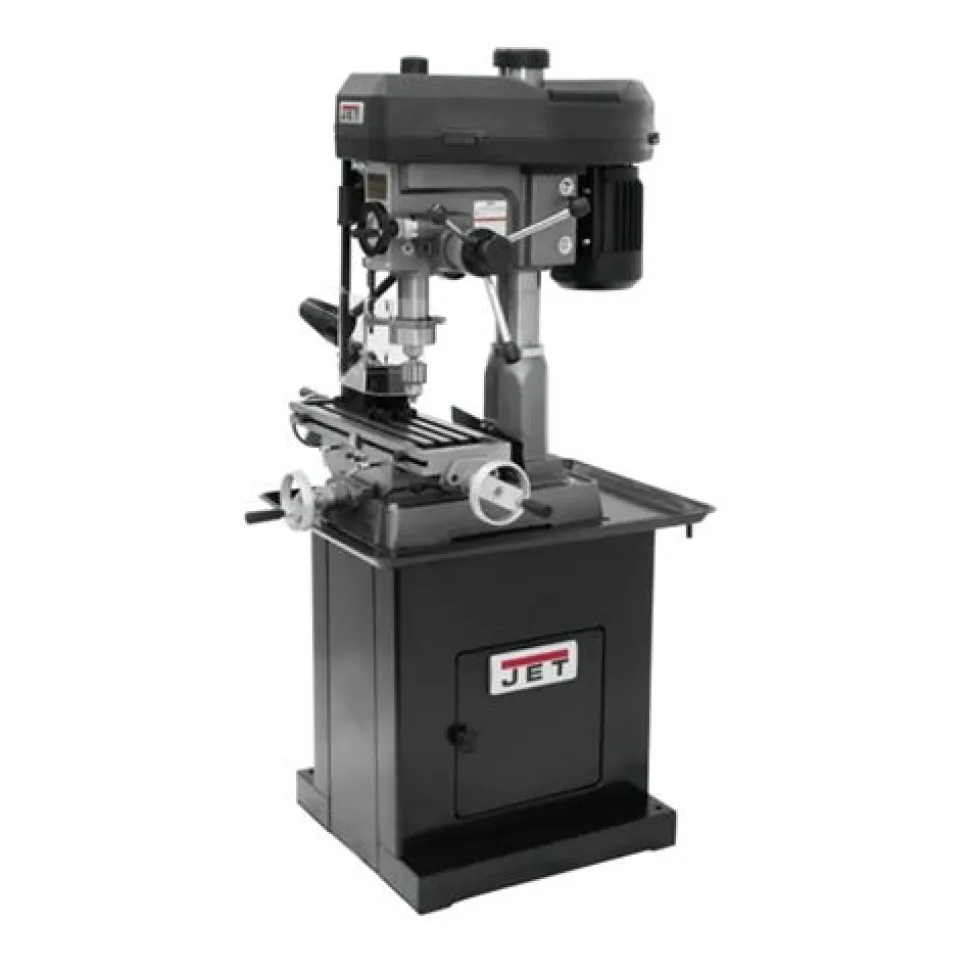

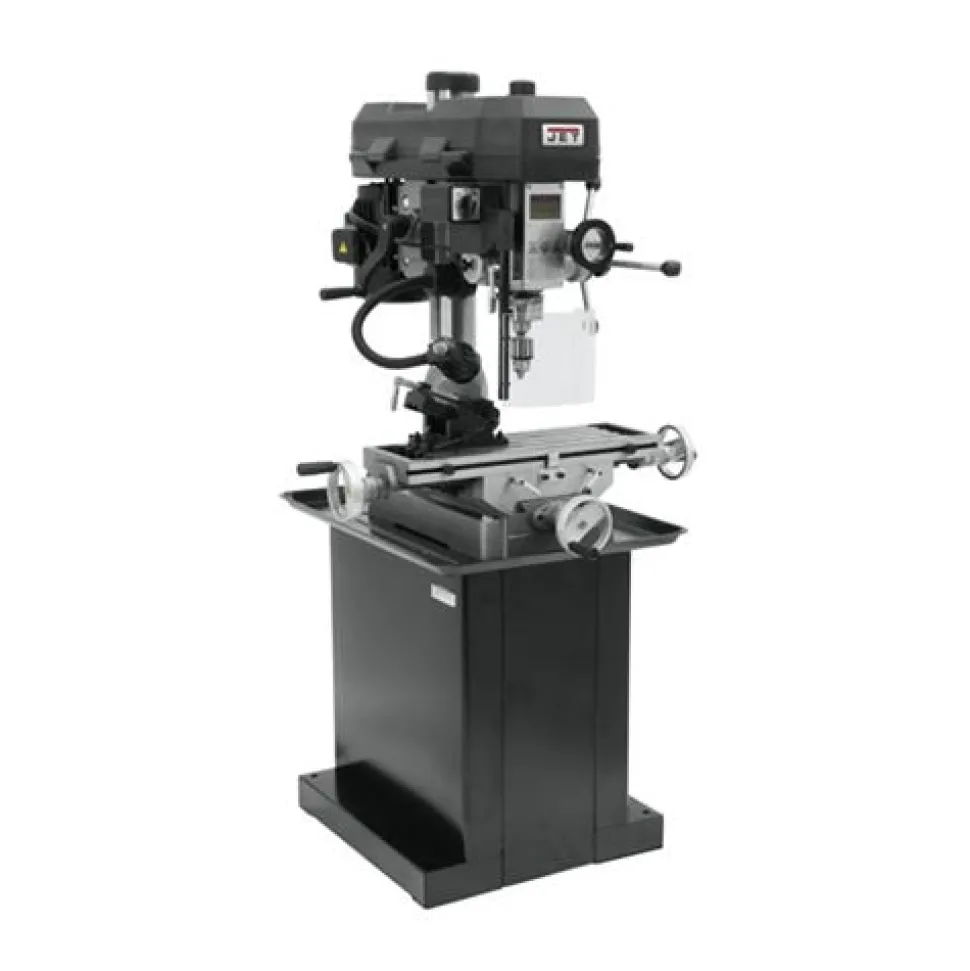

- Mill Drill Stand; p/n 320020; shown in some images; is optional.
SPECIFICATIONS:
| Drilling Capacity (In.) | 1 |
|---|---|
| Face Mill Capacity (In.) | 2-1/2 |
| Swing (In.) | 14-1/2 |
| Max Distance Spindle to Table (In.) | 14-1/2 |
| Spindle Taper (In. x TPI) | R-8 |
| Quill Diameter (In.) | 2-7/16 |
| Range of 12 Spindle Speeds (RPM) | 110 – 2;580 |
| Table Size (L x W) (In.) | 7-1/2 x 23 |
| Work Table Weight Capacity (Lbs.) | 350 |
| T-Slots Number and Size (In.) | 4 and 9/16 |
| Motor (HP) | 1 HP; 115/230V; 1Ph |
| Overall Dimensions (L x W x H) (In.) | 38 x 37-1/2 x 42 |
| OPT SKU | JET350017 |
|---|---|
| MPN | 350017 |
| UPC/GTIN | 662755103896 |
| Product Type | Stationary Drill Press |
| Google Category | Hardware > Tools > Drills > Drill Presses |
| Power Method | Corded/Electric |
| Voltage | 110V/120V |
| Shipping Weight | 457.00 |
